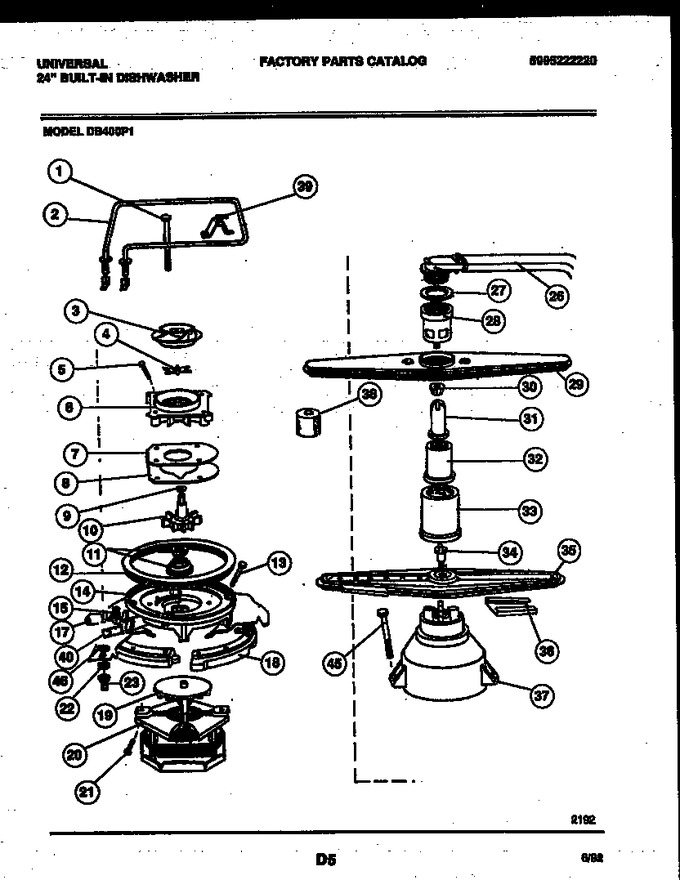

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300806353 | Screw-10-32 X 2 1/4`` |
|
$ 12.06 | |||||
| 2 | 5300809584 | Heater-includes 22 & 23 |
|
$ 222.23 | |||||
| 3 | 5300809918 | Upper Impeller |
|
$ 83.45 | |||||
| 4 | 5300809920 | Macerator |
|
$ 49.19 | |||||
| 5 | 5300807359 | Screw-10 X 1 3/4`` (4) |
|
- | |||||
| 6 | 5300809921 | Spacer Plate |
|
$ 12.39 | |||||
| 7 | 5300807884 | Pump Plate |
|
$ 48.51 | |||||
| 8 | 5300807709 | Pump Gasket |
|
$ 54.26 | |||||
| 9 | 5300806521 | O-ring |
|
$ 32.42 | |||||
| 10 | 5300809910 | Pump Impeller Kit-includes 3, 4, 9 & 11 |
|
- | |||||
| 11 | 5300803903 | Water Seal |
|
$ 109.86 | |||||
| 12 | 5300809586 | Gasket |
|
$ 85.64 | |||||
| 13 | 5300807268 | Screw 10 X 1 (8) |
|
$ 5.93 | |||||
| 14 | 5300809589 | Housing |
|
$ 54.25 | |||||
| 15 | 5300808186 | Hose Clamp |
|
- | |||||
| 17 | 5300808174 | Connector Hose |
|
$ 19.06 | |||||
| 18 | 5300809590 | Clamp Ring |
|
$ 47.93 | |||||
| 19 | 5300809366 | Watershield Assy |
|
$ 2.26 | |||||
| 20 | 5300809984 | Motor Assy-includes 1, 9 & 19 |
|
- | |||||
| 21 | 5300809022 | Screw-10 X 1`` (4) |
|
- | |||||
| 22 | 5300809587 | Heater Washer (2) |
|
- | |||||
| 23 | 154106202 | Heater Nut (2) (Replaces: 5300806834) |
|
Immediately | $ 18.32 | ||||
| 26 | 5300808185 | Elbow & Tube Assy |
|
- | |||||
| 27 | 5300808184 | Gasket |
|
- | |||||
| 28 | 5300808183 | Distributor |
|
$ 16.70 | |||||
| 29 | 5300809021 | Spray Arm Assy |
|
$ 34.07 | |||||
| 30 | 5300808181 | Nut |
|
$ 6.62 | |||||
| 31 | 5300808180 | Tower Tip |
|
$ 10.97 | |||||
| 32 | 5300808179 | Tower Section |
|
$ 14.02 | |||||
| 33 | 5300808178 | Tower Base |
|
- | |||||
| 34 | 5300809018 | Spray Arm Bolt |
|
- | |||||
| 35 | 5300809954 | Spray Arm Assy |
|
$ 145.95 | |||||
| 36 | 5300809938 | Spray Arm Shield |
|
$ 37.05 | |||||
| 37 | 5300809953 | Diffuser Housing Assy |
|
- | |||||
| 38 | 5300803923 | Seal Installation Tool |
|
$ 57.38 | |||||
| 39 | 5300809585 | Bracket-heater (2) |
|
- | |||||
| 40 | 5300809937 | Check Valve |
|
$ 74.71 | |||||
| 45 | 5300809073 | Screw-diffuser |
|
- | |||||
| 46 | 154064901 | Washer-insulating |
|
$ 8.14 | |||||
| 39A | 5300810094 | Screw-10 X 5/8`` (2) (non-illustrated) |
|
- |
