SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven Parts


03 - Control Panel Parts


04 - Microwave Door Parts

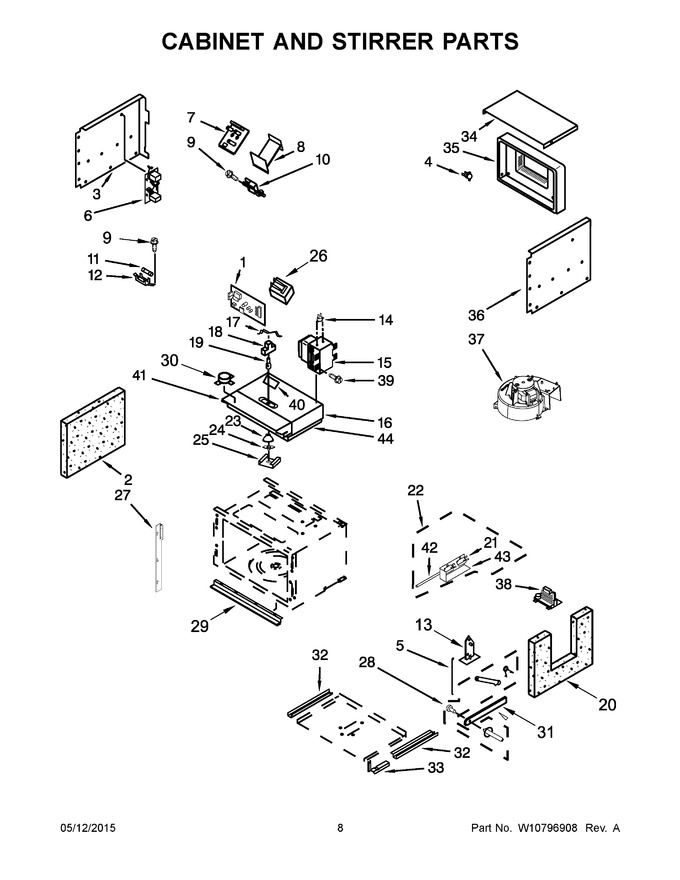

05 - Cabinet And Stirrer Parts


06 - Internal Microwave Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10626304		Appliance Manager, Microwave				$ 190.47
2	N/P		Insulation, Side (not Serviced)		Appelez-nous	-
3	N/P		Panel, Side (not Serviced)		Appelez-nous	-
4	W11607085		Thermostat   (Replaces: W10120223)			Immediately	$ 38.07
5	W11700292		Spring, Torsion   (Replaces: 461967570351)				$ 61.97
6	W11398764		Filter, Noise   (Replaces: W10692851)			Immediately	$ 175.33
7	W10578541		Control, Electric Converter				$ 193.10
8	N/P		Bracket, Control (not Serviced)		Appelez-nous	-
9	461967825321		Screw   (Replaces: W10131249)				$ 10.40
10	461967842541		Thermoactuator   (Replaces: 4375427)				$ 61.97
11	W11188752		Fuse   (Replaces: 241908600053)			Immediately	$ 15.63
12	W10245194		Block, Fuse   (Replaces: 4375231)				$ 74.84
13	W11684510		Support   (Replaces: 461967750494)			Immediately	$ 13.30
14	W11233913		Thermostat, Magnetron   (Replaces: 461967846741)			Immediately	$ 133.79
15	W11346197		Magnetron   (Replaces: 461967847321)			Immediately	$ 244.13
16	N/P		Panel, Top (not Serviced)		Appelez-nous	-
17	W10465869		Spring, Lamp			Immediately	$ 88.94
18	WPW10490593		Holder, Lamp   (Replaces: W10490593)				$ 66.70
19	W10886919		Lamp, Halogen   (Replaces: 241954900069)			Immediately	$ 29.00
20	N/P		Insulation, Side (not Serviced)		Appelez-nous	-
21	W10211972		Switch   (Replaces: W10330566)			Immediately	$ 47.16
22	461968971522		Harness, Main			Immediately	$ 134.38
23	423107022541		Reflector				$ 73.63
24	W11193483		Lens, Lamp   (Replaces: 423107720491)			Immediately	$ 89.85
25	W11440819		Clip, Spring   (Replaces: 461967010591)				$ 19.71
26	W11238401		Transformer, Light (20v)   (Replaces: 461967848621)			Immediately	$ 309.33
27	461967013712		Trim, Side Microwave (left)		Appelez-nous	-
28	WPW10128850		Bushing   (Replaces: 461967510191)			Immediately	$ 121.78
29	461968973241		Vent, Top Microwave				$ 67.46
30	W10460457		Sensor, Humidity			Immediately	$ 119.39
31	W11214480		Arm, Sliding   (Replaces: 461967750483)				$ 86.18
32	8205707		Support, Bottom   (Replaces: 461967008461)			Immediately	$ 58.96
33	W10874474		Hinge, Door   (Replaces: 461968979601)			Immediately	$ 54.10
34	N/P		Panel, Top (not Serviced)		Appelez-nous	-
35	N/P		Panel, Rear (not Serviced)		Appelez-nous	-
36	N/P		Panel, Side (not Serviced)		Appelez-nous	-
37	W11344874		Assembly, Cooling Fan   (Replaces: 461968969271)			Immediately	$ 164.35
38	W10217711		Inverter   (Replaces: W10468206)			Immediately	$ 260.67
39	461967825971		Screw   (Replaces: W10130890)		Appelez-nous	-
40	N/P		Hatch, Top (not Serviced)		Appelez-nous	-
41	N/P		Panel, Top (not Serviced)		Appelez-nous	-
42	WPW10120235		Rod, Release   (Replaces: W10120235)			Immediately	$ 6.27
43	WP8205683		Holder, Switch   (Replaces: 8205683)			Immediately	$ 89.47
44	N/P		Panel, Top (not Serviced)		Appelez-nous	-
27A	461967013702		Trim, Side Microwave (right)		Appelez-nous	-
NI	461967903621		Miscellaneous Parts, Harness, Turntable And Fan		Appelez-nous	-
NI	W10277591		Miscellaneous Parts, Harness, Comm Mwo			Immediately	$ 62.72
NI	W10277650		Miscellaneous Parts, Harness, Comm Smps				$ 15.57
NI	W10277646		Miscellaneous Parts, Power Cord		Appelez-nous	-
NI	W10288001		Miscellaneous Parts, Microswitch (sdt-s-124lmr Oeg)		Appelez-nous	-
NI	W10288002		Miscellaneous Parts, Microswitch (g5g-1a-ps 24v)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
