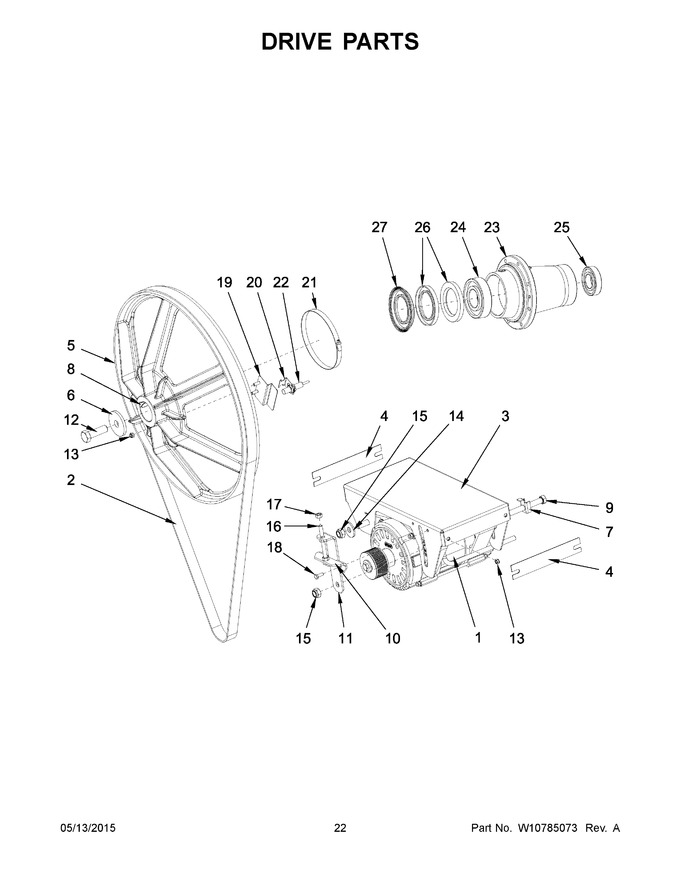

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10760691		Motor With Pulley (2.2kw/230v/75hz)		Appelez-nous	-
2	W10713982		Belt		Appelez-nous	-
3	W10713990		Motor Bracket		Appelez-nous	-
4	W10804910		Motor Bracket Shims		Appelez-nous	-
5	W10713993		V-pulley Drum		Appelez-nous	-
6	W10654354		Motor Pulley Washer		Appelez-nous	-
7	W10713995		Lock, Bolt Head		Appelez-nous	-
8	W10804909		Drum Pulley Key		Appelez-nous	-
9	W10713999		Bolt M12x220		Appelez-nous	-
10	W10714001		Tensioning Bracket - Rigid		Appelez-nous	-
11	W10714003		Tensioning Bracket - Movable		Appelez-nous	-
12	23002278		Bolt M16x30		Appelez-nous	-
13	23001310		Nut M6		Appelez-nous	-
14	23004146		Washer M12		Appelez-nous	-
15	W10357141		Nut M12		Appelez-nous	-
16	23004222		Bolt M8x70		Appelez-nous	-
17	23001266		Nut M8		Appelez-nous	-
18	23004114		Bolt M6x16   (Replaces: 23002461)		Appelez-nous	-
19	W10747778		Plate, Speed Sensor		Appelez-nous	-
20	W10747779		Bracket, Speed Sensor		Appelez-nous	-
21	W10748075		Hose Clamp (140-160)		Appelez-nous	-
22	W10747780		Speed Sensor		Appelez-nous	-
23	W10714016		Bearing Housing		Appelez-nous	-
24	23003076		Bearing (6312)		Appelez-nous	-
25	23003614		Bearing (6310)		Appelez-nous	-
26	23003850		Ring Seal 100x130x10		Appelez-nous	-
27	W10714026		Ring Seal 100x130/144x9/12		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
