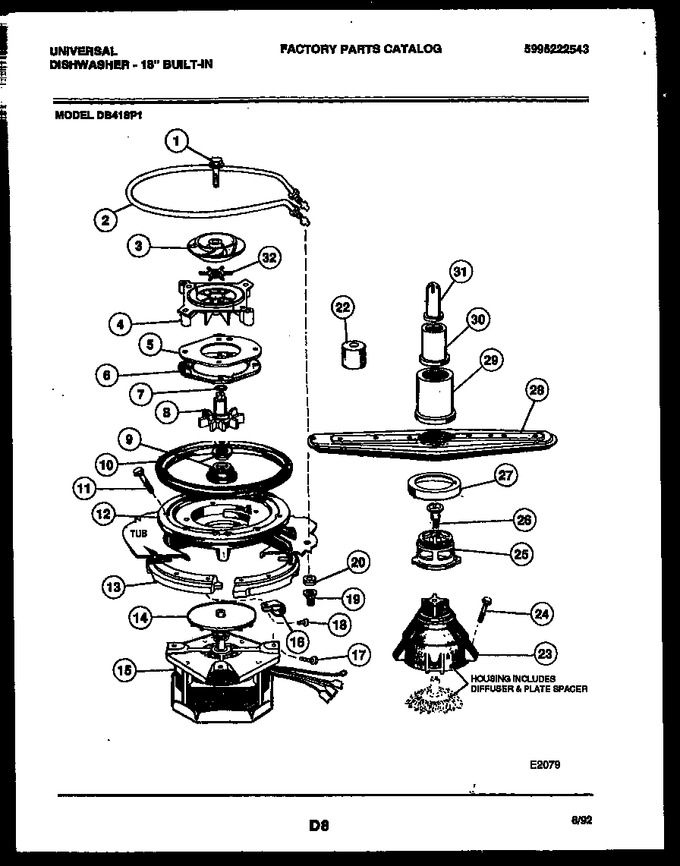

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300806353		Screw-10-32 X 2 1/4``				$ 12.06
2	5300806864		Heater		Appelez-nous	-
3	5300809918		Upper Impeller				$ 83.45
4	5300809921		Spacer Plate				$ 12.39
5	5300807884		Pump Plate				$ 48.51
6	5300807709		Pump Gasket				$ 54.26
7	5300806521		O-ring				$ 32.42
8	5300809909		Pump Impeller Kit-includes 3-7-9 & 32				$ 71.56
9	5300803903		Water Seal				$ 109.86
10	5300809008		Gasket				$ 4.99
11	5300807268		Screw 10 X 1 (8)				$ 5.93
12	5300809919		Pump Housing		Appelez-nous	-
13	5300807712		Clamp Ring		Appelez-nous	-
14	5300809366		Watershield Assembly				$ 2.26
15	5300809985		Motor Assembly		Appelez-nous	-
16	240396801		Clamp   (Replaces: 5300808442)				$ 19.13
17	5300809022		Screw-10 X 1`` (4)		Appelez-nous	-
18	5300807270		Screw-8 X 5/8``				$ 6.72
19	154106202		Heater Nut (2)   (Replaces: 5300806834)			Immediately	$ 18.32
20	5300806833		Heater Grommet (2)				$ 5.34
22	5300803923		Seal Installation Tool				$ 57.38
23	5300809953		Impeller Housing Kit		Appelez-nous	-
24	5300807359		Screw-10 X 1 3/4`` (4)		Appelez-nous	-
25	5303943010		Bearing		Appelez-nous	-
26	5300809018		Spray Arm Bolt		Appelez-nous	-
27	5300808924		Bearing Shield				$ 31.61
28	5300808848		Spray Arm Assembly				$ 56.07
29	5300808178		Tower Base		Appelez-nous	-
30	5300808179		Tower Section				$ 14.02
31	5300808849		Tower Tip		Appelez-nous	-
32	5300809920		Macerator				$ 49.19
*62911	5300809937		Check Valve				$ 74.71
*62911	3100021801		Drain Hose				$ 73.00
28A	154041101		Washer-spray Arm (non-illustrated)		Appelez-nous	-
