SELECT A DIAGRAM

01 - Cover Sheet

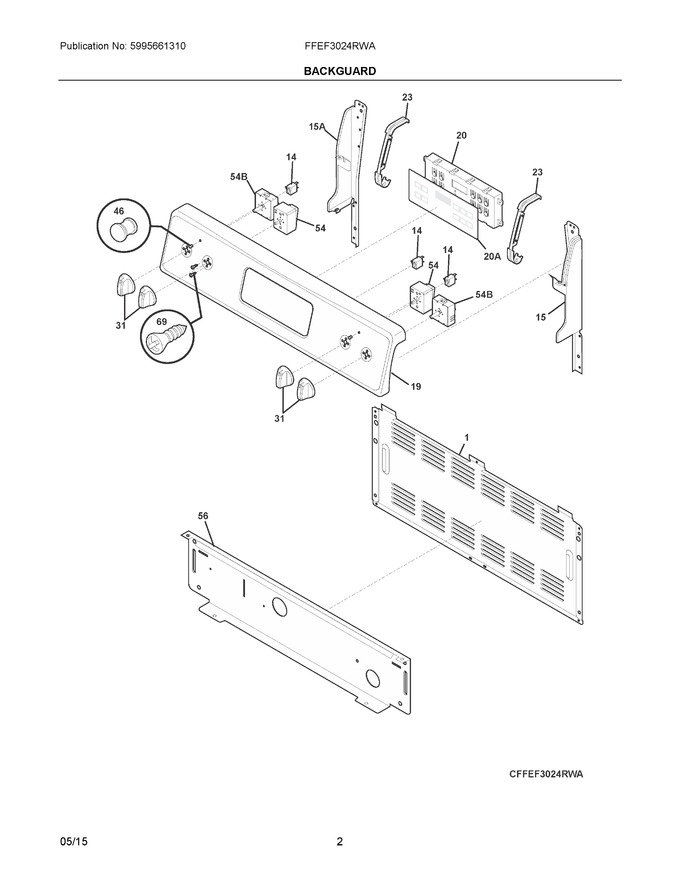

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281800)				$ 57.64
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 53.57
15	316411403		Support, Backguard, White, Rh				$ 84.10
19	316541679		Panel-bkgd, White				$ 153.09
20	5304510064		Clock/timer, Electronic, Es330   (Replaces: 316557236)			Immediately	$ 336.49
23	316441600		Bracket-clock Mtg, Black				$ 20.48
31	316543800		Knob, Control, White, (4)			Immediately	$ 27.29
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
54	316436000		Switch, Infinite, Small Element			Immediately	$ 80.34
56	316234029		Shield, Backguard, White, Inner   (Replaces: 316234012)				$ 87.17
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
15A	316411402		Support, Backguard, White, Lh				$ 94.55
20A	316419354		Overlay, Clock, White, Es330i				$ 76.97
54B	316238201		Switch, Infinite Radian, Dual			Immediately	$ 89.00
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46

    View Diagram in Separate Window       Print Part List
