SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System

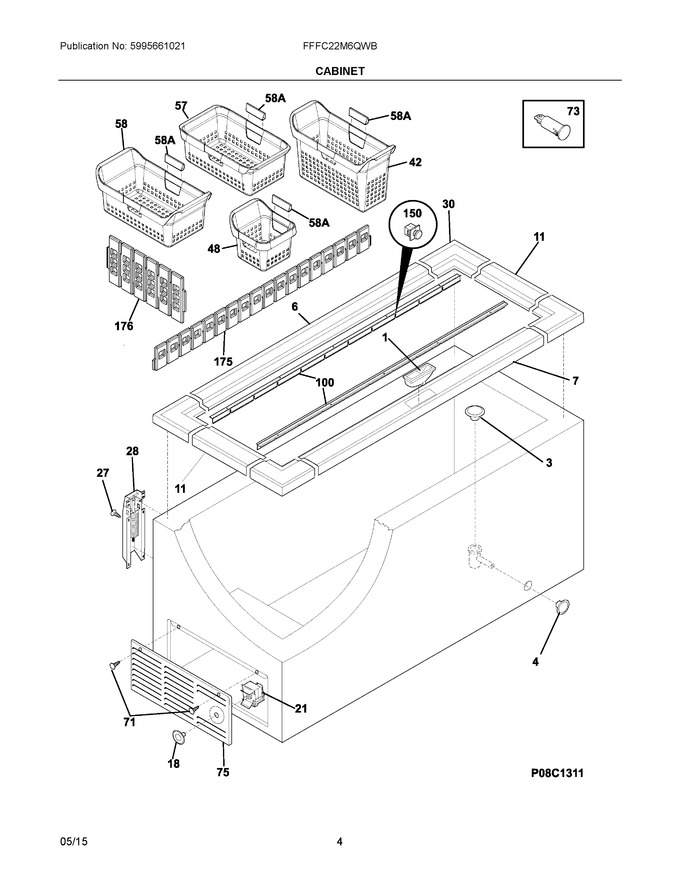

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216954500		Catch-lock				$ 19.16
3	216502600		Plug, Drain, Interior			Immediately	$ 17.35
4	297013600		Plug, Drain, Exterior				$ 9.98
6	5304493713		Breaker		Appelez-nous	-
7	5304495898		Breaker, W/lock		Appelez-nous	-
11	5304493668		Breaker, White, Chest End				$ 16.22
18	216707200		Knob, Temp Control				$ 44.10
21	297216043		Control-temperature   (Replaces: 297216036)				$ 49.16
27	216629601		Screw, Hex Washer Head, 10-16 X 0.500, Tapping				$ 13.01
28	297322100		Hinge, Assy			Immediately	$ 88.60
30	5304495365		Breaker, White, Corners				$ 19.14
42	808695401		Basket, Pizza   (Replaces: 5304494384)				$ 156.21
48	808702401		Basket, 1/2 Hanging   (Replaces: 5304493978)				$ 91.58
57	297404201		Basket, Chest, Lower (white)				$ 74.13
58	297404101		Basket, Chest, Upper (white)				$ 129.47
71	5303302714		Screw, #8-18 X .75		Appelez-nous	-
75	216034301		Panel, Access, White				$ 103.01
100	297424804		Track, Basket		Appelez-nous	-
150	216997400		Support, Track-basket				$ 10.61
175	297404405		Divider, Chest				$ 76.55
176	297404700		Divider, Chest, Center				$ 59.96
58A	808408301		Clip, Basket Handle (blue)				$ 21.27
NI	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
NI	5304495551		Energy Guide		Appelez-nous	-
NI	5304498526		Service Data Sheet		Appelez-nous	-
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NIAA	5304494016		Clip, Basket Handle (green)				$ 11.60
NIB	5304494017		Clip, Basket Handle (yellow)		Appelez-nous	-
NIC	808408304		Clip, Basket Handle (red)				$ 21.27

    View Diagram in Separate Window       Print Part List
