01 - Cover Sheet
02 - Backguard
03 - Burner
04 - Body

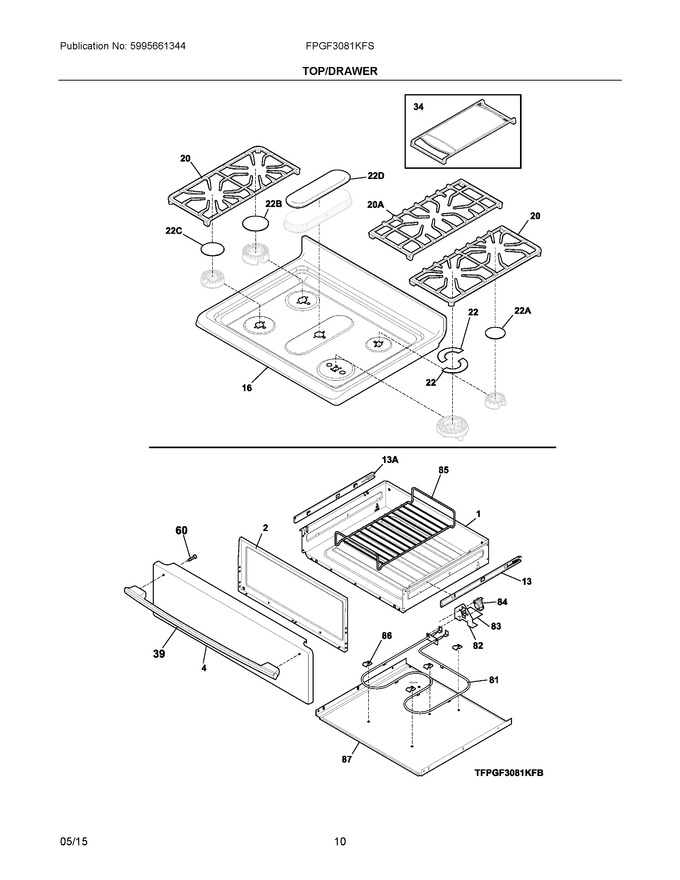

05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408905 | Drawer, Warmer (Replaces: 316408901) |
|
$ 143.45 | |||||
| 2 | 5304527988 | Liner, Black, Drawer (Replaces: 316403203) |
|
Immediately | $ 26.54 | ||||
| 4 | 5304494412 | Panel, Drawer, Stainless, Outer (Replaces: 316409317) |
|
$ 98.53 | |||||
| 13 | 316415000 | Glide, Warmer, Inner Rh |
|
$ 58.82 | |||||
| 16 | 316469665 | Maintop Panel, Black |
|
$ 202.91 | |||||
| 20 | 316546202 | Grate, Burner, Black, Sides, (2) |
|
- | |||||
| 22 | 316262204 | Cap, 17k Twin Burner, Black, (2) |
|
Immediately | $ 72.80 | ||||
| 34 | 316465800 | Griddle |
|
$ 142.49 | |||||
| 39 | 5304532118 | Handle, Door/drawer, Stainless (Replaces: 316551501) |
|
$ 112.88 | |||||
| 60 | 316001013 | Screw, Wafer Head, 10-24 X 1.375, Handle Mtg. |
|
Immediately | $ 2.41 | ||||
| 81 | 316437300 | Element, Warmer Drawer |
|
$ 106.17 | |||||
| 82 | 316093200 | Bracket, Element Mtg |
|
- | |||||
| 83 | 316093300 | Shield, Terminal, Warmer Drawer |
|
- | |||||
| 84 | 316093502 | Thermo Disc, Warmer Drawer |
|
$ 51.03 | |||||
| 85 | 807328301 | Rack, Warmer Drawer |
|
$ 87.21 | |||||
| 86 | 316095800 | Clip, Hold Down, (3) |
|
$ 9.93 | |||||
| 87 | 316091900 | Base, Warmer Drawer |
|
$ 221.55 | |||||
| 13A | 316415001 | Glide, Warmer, Inner Lh |
|
Immediately | $ 58.82 | ||||
| 20A | 316546102 | Grate, Burner, Black, Center |
|
- | |||||
| 22A | 5304508441 | Cap, 5k Burner, Matte, Black (Replaces: 316261704) |
|
Immediately | $ 35.04 | ||||
| 22B | 5304508443 | Cap, 14k Burner, Matte, Black (Replaces: 316262004) |
|
Immediately | $ 46.01 | ||||
| 22C | 5304508442 | Cap, 9.5k Burner, Matte, Black (Replaces: 316261804) |
|
Immediately | $ 36.55 | ||||
| 22D | 316559604 | Cap, 9.5k Burner, Black, Oval |
|
$ 72.30 | |||||
| NI | 5304494425 | Harness, Ignitor (Replaces: 316580602) |
|
$ 86.45 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 5304516184 | Harness, Warm Base (Replaces: 316525623) |
|
$ 28.51 | |||||
| NI | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black |
|
$ 13.46 | |||||
| NIA | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 |
