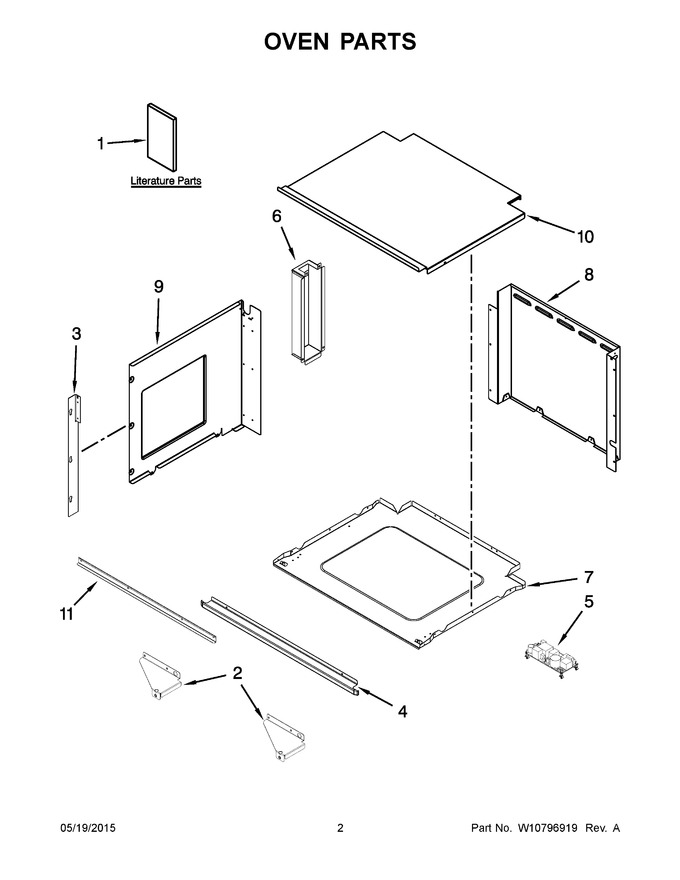

02 - Oven Parts
03 - Control Panel Parts
04 - Microwave Door Parts
05 - Cabinet And Stirrer Parts
06 - Internal Microwave Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10284419 | Installation Instructions (english) |
|
- | |||||
| 2 | W10239158 | Bracket, Lower (left Side) |
|
- | |||||
| 3 | W10283693 | Trim, Side |
|
- | |||||
| 4 | W10284664 | Trim, Bottom |
|
- | |||||
| 5 | WPW10286791 | Supply, Power (Replaces: W10286791) |
|
Immediately | $ 251.06 | ||||
| 6 | W10239155 | Box, Conduit |
|
$ 87.11 | |||||
| 7 | N/P | Panel, Bottom (not Serviced) |
|
- | |||||
| 8 | N/P | Panel, Rear (not Serviced) |
|
- | |||||
| 9 | N/P | Panel, Side (not Serviced) |
|
- | |||||
| 10 | N/P | Panel, Top (not Serviced) |
|
- | |||||
| 11 | W10291274 | Bracket, Wires Support |
|
- | |||||
| 1A | W10075750 | Installation Instructions (english/french) |
|
- | |||||
| 1B | W10221391 | Use And Care Guide (microwave) |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1E | W10213735 | Tech Sheet (english) |
|
- | |||||
| 1F | W10213736 | Tech Sheet (french) |
|
- | |||||
| 2A | W10239159 | Bracket, Lower (right Side) |
|
- |
