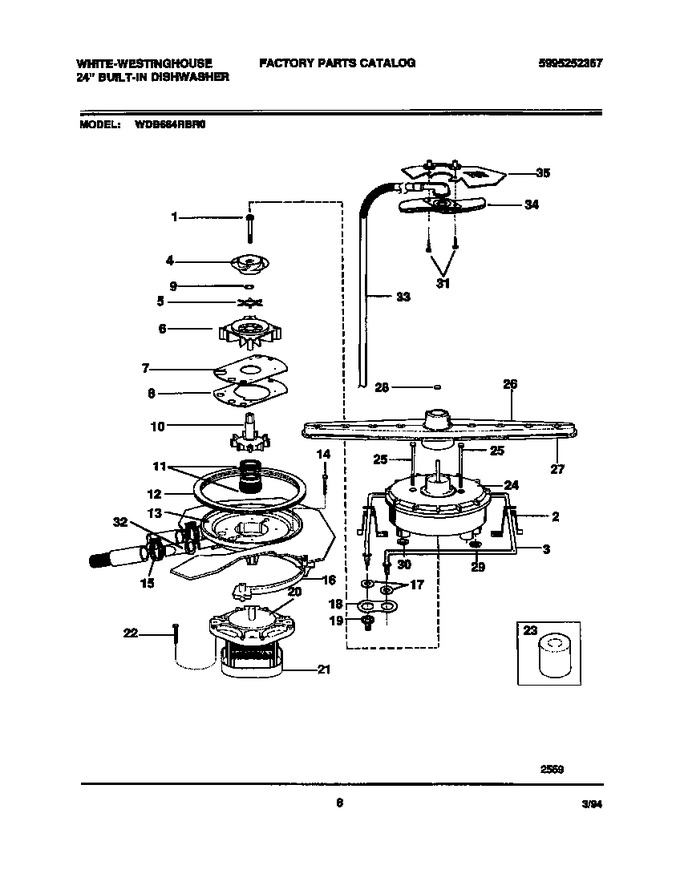

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300806353		Screw-10-32 X 2 1/4``				$ 12.06
2	5300809585		Heater Bracket (2)		Appelez-nous	-
3	5300809584		Heater				$ 222.23
4	5300809918		Upper Impeller				$ 83.45
5	5300809920		Macerator				$ 49.19
6	5300809921		Spacer Plate				$ 12.39
7	5300809006		Pump Plate				$ 45.94
8	5300809007		Pump Gasket				$ 18.06
9	5300806521		O-ring				$ 32.42
10	5300809909		Pump Impeller-includes 4, 5, 9 & 11				$ 71.56
11	5300803903		Water Seal				$ 109.86
12	5300809586		Pump Gasket				$ 85.64
13	5300809591		Pump Housing		Appelez-nous	-
14	5300807268		Screw-10 X 1``(3)				$ 5.93
15	5300808186		Hose Clamp		Appelez-nous	-
16	5300809590		Pump Clamp				$ 47.93
17	5300809587		Washer (2)		Appelez-nous	-
18	154064901		Insulating Washer (2)				$ 8.14
19	154106202		Heater Nut (2)   (Replaces: 154106201)			Immediately	$ 18.32
20	5300809366		Watershield Assy				$ 2.26
21	5300809984		Motor Assy		Appelez-nous	-
22	5300809022		Screw-10 X 1`` (4)		Appelez-nous	-
23	5300803923		Seal Installation Tool				$ 57.38
24	154158301		Filter Assy		Appelez-nous	-
25	5300807359		Screw 10 X 1 3/4``		Appelez-nous	-
26	154156602		Spray Arm Assy				$ 58.91
27	5300809938		Spray Arm Shield (2)				$ 37.05
28	154190401		Nut-spray Arm				$ 21.00
29	5300809015		O-ring				$ 6.09
30	5300809016		O-ring				$ 5.83
31	5300809012		Screw				$ 8.03
32	5300809937		Check Valve				$ 74.71
33	154119301		Tube, Delivery		Appelez-nous	-
34	154119401		Spray Arm Assy				$ 59.85
35	154126401		Mounting Plate-3rd Level Spray Arm		Appelez-nous	-
*19005	5300810094		Screw-10 X 5/8 (2)		Appelez-nous	-
