01 - Cover Sheet

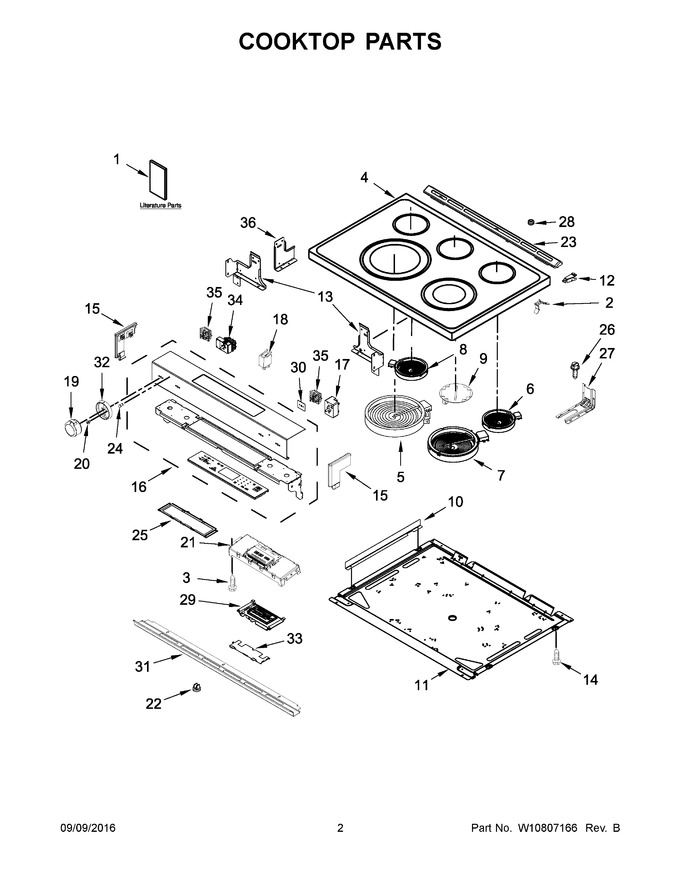

02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10665255 | Instructions, Installation |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 4 | W10814035 | Cooktop (white) (Replaces: W10536294) |
|
$ 524.21 | |||||
| 5 | W10823720 | Element (3000w Triple) (left Front) (Replaces: W10187839) |
|
Immediately | $ 302.91 | ||||
| 6 | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 7 | WPW10251108 | Element (3200w) (right Front) (Replaces: W10251108) |
|
Immediately | $ 201.29 | ||||
| 8 | WPW10342780 | Element (1300w Dual) (left Rear) (Replaces: W10342780) |
|
Immediately | $ 130.79 | ||||
| 9 | W11047668 | Element, Warm Zone (center Rear) (Replaces: W10388247) |
|
$ 113.96 | |||||
| 10 | W11175271 | Bracket, Radiant (Replaces: W10613286) |
|
$ 66.78 | |||||
| 11 | W10536275 | Pan, Radiant |
|
$ 155.66 | |||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 63.54 | |||||
| 13 | W10289169 | Support, Cooktop (right) |
|
$ 25.76 | |||||
| 14 | W11244557 | Screw (Replaces: 3196173) |
|
$ 12.25 | |||||
| 15 | W10555935 | Endcap (white (left)) |
|
$ 61.50 | |||||
| 16 | W10697318 | Console (white) |
|
Immediately | $ 516.39 | ||||
| 17 | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 94.18 | ||||
| 18 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 77.68 | ||||
| 19 | W10877180 | Knob (stainless (right Rear)) (Replaces: W10579762) |
|
Immediately | $ 64.98 | ||||
| 20 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.47 | ||||
| 21 | W11099664 | Control, Mrc2 (Replaces: W10453976) |
|
Immediately | $ 424.67 | ||||
| 22 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 11.28 | ||||
| 23 | W10636527 | Vent, Trim Top (white) |
|
$ 215.42 | |||||
| 24 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 25 | W10555923 | Bracket, User Interface |
|
$ 92.08 | |||||
| 26 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 26.33 | |||||
| 27 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 20.73 | ||||
| 28 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 18.83 | ||||
| 29 | W10909684 | Assembly, Display (Replaces: W10603094) |
|
Immediately | $ 528.76 | ||||
| 30 | WP71002569 | Gasket, Infinite Switch (Replaces: 7201P077-60) |
|
Immediately | $ 9.06 | ||||
| 31 | W10555933 | Console, Lower Panel (white) |
|
$ 180.05 | |||||
| 32 | W10813558 | Bezel (stainless) (Replaces: W10663809) |
|
Immediately | $ 65.89 | ||||
| 33 | W10558372 | Bracket, Control |
|
$ 21.51 | |||||
| 34 | W11129442 | Switch, Infinite (triple) (left Front) (Replaces: W10437097) |
|
Immediately | $ 90.51 | ||||
| 35 | W10917724 | Switch, Infinite (right Front And Left Rear) (Replaces: W10437094) |
|
Immediately | $ 116.42 | ||||
| 36 | W10598048 | Bracket, Console (center) |
|
$ 22.05 | |||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 67.37 | |||||
| 13A | W10289170 | Support, Cooktop (left) |
|
$ 25.76 | |||||
| 15A | W10555936 | Endcap (black (left)) |
|
$ 51.21 | |||||
| 15B | W10555937 | Endcap (stainless (left)) |
|
$ 58.24 | |||||
| 15C | W10555938 | Endcap (white (right)) |
|
$ 63.66 | |||||
| 15D | W10555939 | Endcap (black (right)) |
|
$ 62.42 | |||||
| 15E | W10555940 | Endcap (stainless (right)) |
|
$ 58.24 | |||||
| 16A | W10697317 | Console (black) |
|
$ 434.59 | |||||
| 16B | W10920246 | Console (stainless) (Replaces: W10697319) |
|
Immediately | $ 673.92 | ||||
| 19A | W11628652 | Knob (stainless (left Rear)) (Replaces: W10579763) |
|
Immediately | $ 67.32 | ||||
| 19B | W11568640 | Knob (stainless (right Front)) (Replaces: W10579764) |
|
Immediately | $ 61.54 | ||||
| 19C | W10877188 | Knob (stainless (left Front)) (Replaces: W10579765) |
|
Immediately | $ 59.97 | ||||
| 1A | W10722059 | Use And Care Guide |
|
- | |||||
| 1B | W10665227 | Sheet, Tech |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1E | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1F | W10400065 | Guide, Quick Start (french) |
|
- | |||||
| 1G | W10665238 | Wiring Diagram |
|
- | |||||
| 23A | W11240519 | Vent, Trim Top (black) (Replaces: W10636528) |
|
$ 134.73 | |||||
| 23B | W11170796 | Vent, Trim Top (stainless) (Replaces: W10636529) |
|
Immediately | $ 121.73 | ||||
| 31A | W10555932 | Console, Lower Panel (black) |
|
- | |||||
| 31B | W10555934 | Console, Lower Panel (stainless) |
|
Immediately | $ 159.53 | ||||
| 4A | W10814036 | Cooktop (black) (Replaces: W10536295) |
|
$ 500.12 | |||||
| 4B | W10814038 | Cooktop (stainless) (Replaces: W10536296) |
|
$ 759.01 | |||||
| NI | W10664316 | Clip, Harness |
|
$ 17.97 | |||||
| NI | W10580303 | Harness, Console |
|
$ 161.45 | |||||
| NI | W11226772 | Harness, Display (Replaces: W10598170) |
|
Immediately | $ 203.09 | ||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 48.02 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11226786 | Harness, Cooktop (Replaces: W10580249) |
|
Immediately | $ 207.22 | ||||
| NI | W10580307 | Harness, Main |
|
$ 293.60 | |||||
| NI | W10580316 | Harness, Bake Drawer |
|
Immediately | $ 159.17 |
