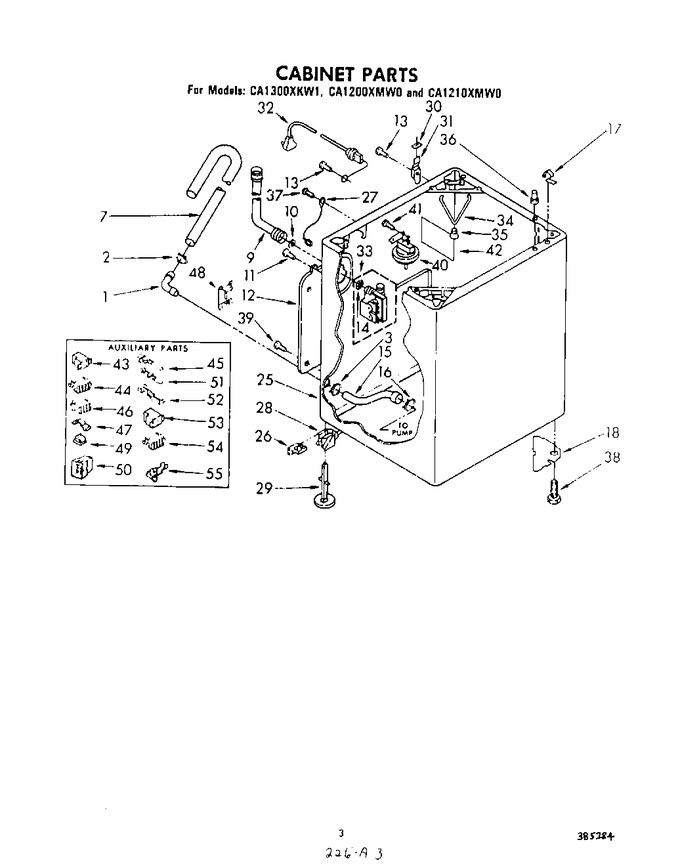

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 95440 | Connector, Hose |
|
$ 22.55 | |||||
| 2 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 3 | WP285655 | Clamp, Hose (Replaces: 370445) |
|
Immediately | $ 7.55 | ||||
| 7 | WP96743 | Hose, Gooseneck (Replaces: 96743) |
|
$ 90.93 | |||||
| 9 | WP89503 | Hose, Inlet (2) (Replaces: 660028) |
|
Immediately | $ 21.68 | ||||
| 9 | WP89503 | Hose, Inlet (2) (alt.) (Replaces: 81339) |
|
Immediately | $ 21.68 | ||||
| 9 | WP89503 | Hose, Inlet (2) (alt.) (Replaces: 366108) |
|
Immediately | $ 21.68 | ||||
| 10 | WP16123 | Washer, Rubber (4) (Replaces: 16123) |
|
$ 6.93 | |||||
| 11 | WP3351614 | Screw, 10-24 X 3/8 (Replaces: 90864) |
|
Immediately | $ 6.26 | ||||
| 12 | 85279 | Panel, Rear |
|
- | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 14 | WP96160 | Screen, Filter (Replaces: 96160) |
|
$ 10.54 | |||||
| 15 | 21114 | Hose, Pump Discharge |
|
- | |||||
| 16 | WP285655 | Clamp, Hose (Replaces: 272858) |
|
Immediately | $ 7.55 | ||||
| 17 | WP18776 | Lock, Front Top (2) (Replaces: 18776) |
|
Immediately | $ 11.41 | ||||
| 18 | 356459 | Plate, Gusset (2) |
|
- | |||||
| 25 | 384793 | Cabinet (white) |
|
- | |||||
| 25 | 384797 | Cabinet (golden Harvest) |
|
- | |||||
| 25 | 384796 | Cabinet (new Avocado) |
|
- | |||||
| 25 | 384794 | Cabinet (almond) |
|
- | |||||
| 26 | WP359364 | Clip, Leveling Mechanism (2) (Replaces: 359364) |
|
Immediately | $ 7.06 | ||||
| 27 | 364089 | Wire, Ground |
|
- | |||||
| 28 | 359059 | Leveling Link Assembly |
|
- | |||||
| 29 | WP358594 | Foot, Rear (2) (Replaces: 358594) |
|
$ 12.24 | |||||
| 30 | 18849 | Pad, Hinge |
|
$ 18.13 | |||||
| 31 | 92657 | Hinge, L.h. |
|
- | |||||
| 31 | 18775 | Hinge, R.h. |
|
- | |||||
| 32 | 354837 | Cord, Power (120 Volt) |
|
- | |||||
| 33 | 358277 | Valve, Mixing (serviced Only As Complete Valve) |
|
Immediately | $ 78.87 | ||||
| 34 | 358336 | Spring, Snubber (Replaces: 357977) |
|
Immediately | $ 4.80 | ||||
| 35 | 358336 | Snubber |
|
Immediately | $ 4.80 | ||||
| 36 | 98669 | Locator, Top (2) |
|
$ 12.03 | |||||
| 37 | WP681414 | Screw, Ground (10-16 X 1/2) (Replaces: 359262) |
|
Immediately | $ 7.07 | ||||
| 38 | WP367594 | Foot, Front (2) (Replaces: 367594) |
|
Immediately | $ 18.46 | ||||
| 39 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 687128) |
|
Immediately | $ 7.07 | ||||
| 40 | 285394 | Switch, Water Level (Replaces: 359361) |
|
- | |||||
| 41 | WP90767 | Screw, 8a X 7/8 (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 42 | 353885 | Barrier, Splash |
|
- | |||||
| 43 | 370148 | Cap, Terminal (12-way) (use W/97452 Terminal) |
|
- | |||||
| 44 | 370147 | Plug, Terminal (12-way) (use W/96413 Terminal) |
|
- | |||||
| 45 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 6.90 | |||||
| 46 | 96894 | Plug, Terminal (15 Way) |
|
- | |||||
| 47 | WP98997 | Clip, Harness (2) (Replaces: 98997) |
|
$ 9.98 | |||||
| 48 | 354179 | Plug, Cabinet (2) |
|
- | |||||
| 49 | WP90016 | Clip, Harness (2) (Replaces: 90016) |
|
$ 10.19 | |||||
| 50 | 96895 | Cap, Terminal (15 Way) |
|
- | |||||
| 51 | 96413 | Terminal |
|
- | |||||
| 52 | 97452 | Terminal |
|
- | |||||
| 53 | 97455 | Cap, Terminal (12-way) (use W/97454 Plug & 96413 Terminal) |
|
- | |||||
| 54 | 97454 | Plug, Terminal (12-way) (use W/97455 Cap & 97452 Terminal) |
|
- | |||||
| 55 | 357695 | Ring, Grounding |
|
- |
