SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram

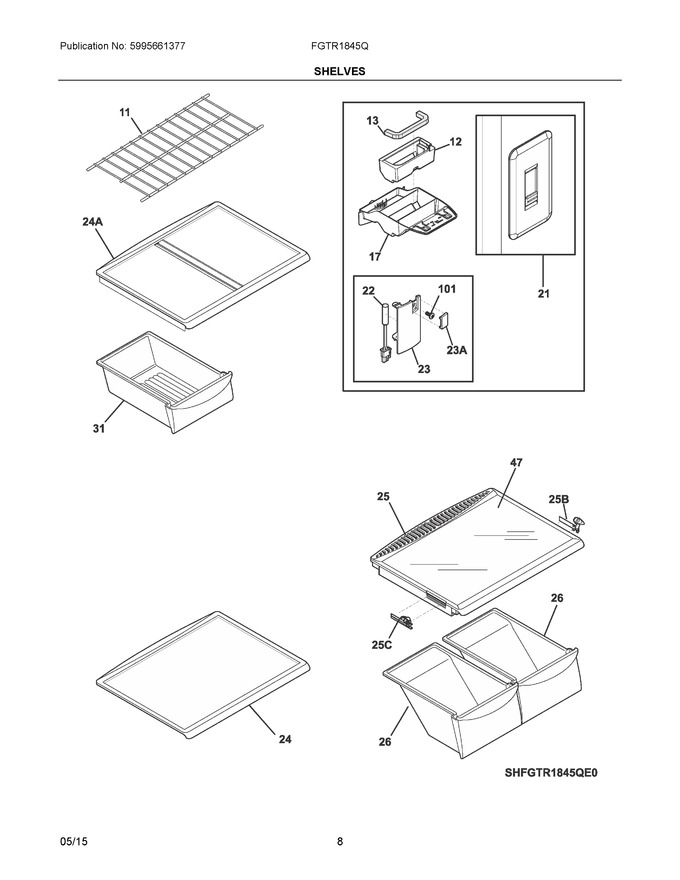

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358008		Shelf, Freezer				$ 91.80
12	242248501		Diffuser, Air, Light Box		Appelez-nous	-
13	240568608		Gasket, Air Diffuser		Appelez-nous	-
17	5304498968		Housing, Air & Water				$ 65.63
21	242249002		Control Assembly, Temperature, W/user Interfce			Immediately	$ 211.91
22	240597220		Sensor, Temperature, 10k, Ntc   (Replaces: 240597203)			Immediately	$ 5.16
23	241842301		Cap-thermistor			Immediately	$ 34.02
24	240358926		Shelf-"spill-safe", Sliding   (Replaces: 240358925)			Immediately	$ 129.17
25	240364787		Cover-crisper Pan			Immediately	$ 120.98
26	240337103		Pan-crisper, Clear, (2), No Graphics			Immediately	$ 148.35
31	240530811		Pan-meat, W/o Graphics, Clear			Immediately	$ 135.77
47	240350608		Insert-pan Cover, 23.82" X 15.50", Glass			Immediately	$ 45.50
101	241953902		Screw, #8 - 18 X .380			Immediately	$ 17.11
23A	241969001		Cap, Screw				$ 16.69
24A	240358926		Shelf-"spill-safe", Sliding, W/pan Hanger			Immediately	$ 129.17
25B	241613501		Control-humidity, Rh			Immediately	$ 12.05
25C	241613502		Control-humidity, Lh				$ 47.78
NI	807332461		Label, Energy Guide		Appelez-nous	-
NIA	241705801		Spacer-shelf				$ 7.09

    View Diagram in Separate Window       Print Part List
