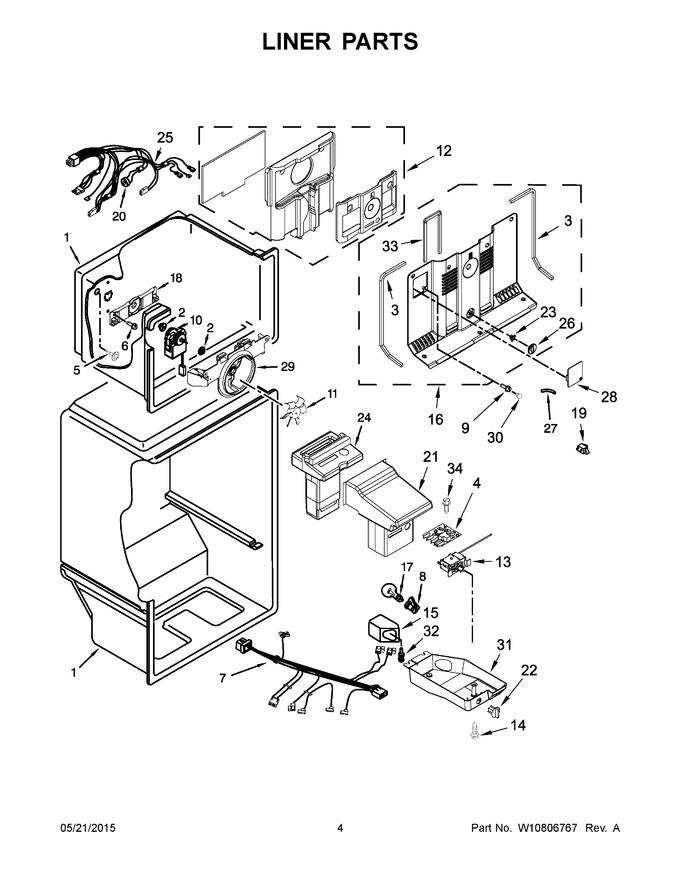

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Serviced) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 39.57 | ||||
| 3 | W10579698 | Gasket, Evaporator Cover |
|
$ 19.12 | |||||
| 4 | 4388931 | Control, Adaptive Defrost (Replaces: 2303825) |
|
Immediately | $ 219.58 | ||||
| 5 | WP941839 | Hole Plug (white) (Replaces: 941839) |
|
$ 6.89 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 6.79 | |||||
| 7 | W10578836 | Assembly, Control Box Wire |
|
$ 102.08 | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 99.14 | ||||
| 9 | W10720456 | Screw (white) |
|
- | |||||
| 10 | WP2315539 | Motor, Evaporator Fan (Replaces: 2315539) |
|
Immediately | $ 74.93 | ||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 59.54 | ||||
| 12 | W10666603 | Assembly, Evaporator Plenum |
|
Immediately | $ 82.27 | ||||
| 13 | W10839843 | Assembly, Thermostat (Replaces: W10570509) |
|
Immediately | $ 118.78 | ||||
| 15 | W11034434 | Shield, Light (Replaces: 9791702) |
|
Immediately | $ 93.36 | ||||
| 16 | W10573325 | Cover, Evaporator |
|
$ 193.79 | |||||
| 17 | W11679940 | Light Bulb (Replaces: 2311792) |
|
Immediately | $ 10.17 | ||||
| 18 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 64.67 | ||||
| 19 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 33.51 | ||||
| 20 | N/P | Bi-metal Defrost (not Serviced) |
|
- | |||||
| 21 | W11208347 | Duct, Air (Replaces: W10570941) |
|
$ 84.38 | |||||
| 22 | WP2202885 | Knob, Control (Replaces: 2202885) |
|
$ 23.74 | |||||
| 23 | W10169456 | Baffle, Air Manual |
|
$ 186.81 | |||||
| 24 | W11199204 | Assembly, Air Diffuser (Replaces: W10570939) |
|
Immediately | $ 89.55 | ||||
| 25 | W11697466 | Assembly, Evaporator Fan Wire (includes Bi-metal Defrost) (Replaces: W10570517) |
|
$ 58.98 | |||||
| 26 | W11026417 | Knob, Air Control (Replaces: W10570952) |
|
$ 78.73 | |||||
| 27 | WP2196003 | Tube, Thermostat Barrier (Replaces: 1118680) |
|
$ 7.16 | |||||
| 28 | W10636223 | Cover, Hole |
|
$ 87.35 | |||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 27.83 | ||||
| 30 | W10854527 | Cover, Screw (Replaces: W10487421) |
|
$ 8.47 | |||||
| 31 | W10648656 | Box, Control |
|
$ 85.29 | |||||
| 32 | 939962 | Rivet, Plastic |
|
$ 10.65 | |||||
| 33 | W10579707 | Gasket, Evaporator Plenum Assembly |
|
$ 19.46 | |||||
| 34 | WP487353 | Screw (Replaces: 488693) |
|
$ 6.81 | |||||
| 35 | WP489174 | Screw (Replaces: 489174) |
|
$ 6.26 |
