SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Liner Parts


04 - Shelf Parts


05 - Door Parts


06 - Unit Parts


07 - Optional Parts

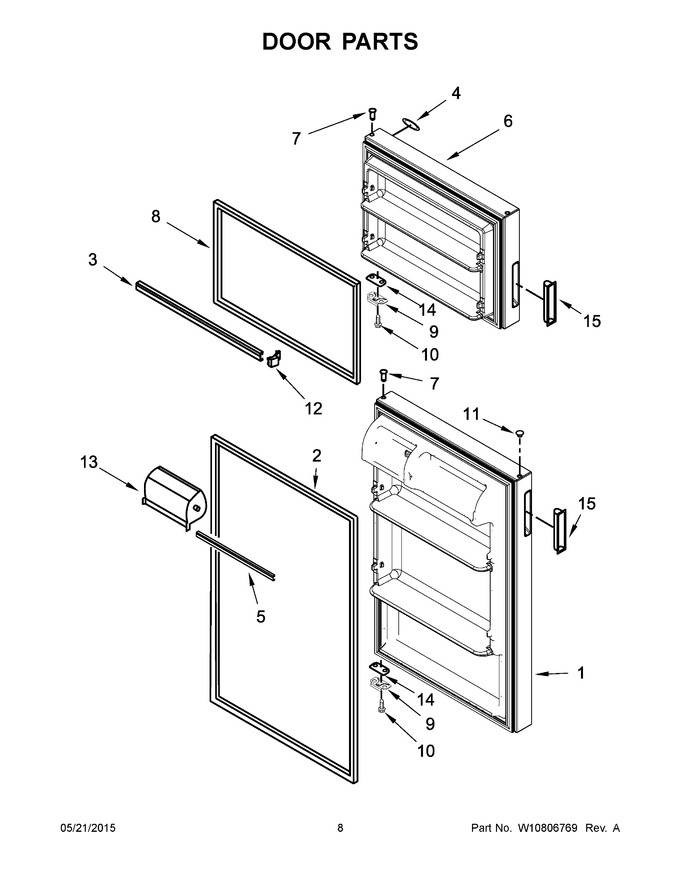

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10573330		Refrigerator Door (includes Illustration 2 & Door Handle) (white)   (Replaces: W10573330)				$ 622.68
2	2319266W		Door Gasket, Magnetic (white)   (Replaces: 2264729)				$ 295.55
3	WP2266727		Trim, Door   (Replaces: 2266727)			Immediately	$ 83.25
4	W11428492		Badge, Amana   (Replaces: W10200425)				$ 71.63
5	W11129820		Trim, Door   (Replaces: W10234242)			Immediately	$ 109.15
6	LW10573333		Freezer Door (includes Illustration 8 & Door Handle) (white)   (Replaces: W10573333)				$ 588.53
7	WP2183003		Thimble   (Replaces: 2262054)				$ 6.98
8	WP2319263W		Door Gasket, Magnetic (white)   (Replaces: 2264726)			Immediately	$ 135.93
9	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
10	WP488921		Screw   (Replaces: 488921)			Immediately	$ 6.98
11	WP2212648		Hole Plug (white)   (Replaces: 2212648)				$ 7.02
12	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 11.36
13	WP2207942		Door, Compartment   (Replaces: 2207942)			Immediately	$ 52.88
14	WP2258681W		Shim, Door Stop (white)   (Replaces: 2258681W)			Immediately	$ 6.47
15	W10182940		Handle, Cup (white)				$ 62.06
11A	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 20.75
14A	2258681B		Shim, Door Stop (black)				$ 38.85
15A	W10174743		Handle, Cup (black)				$ 13.65
1A	LW10570563		Refrigerator Door (includes Illustration 2 & Door Handle) (black)   (Replaces: W10570563)		Appelez-nous	-
2A	2319266B		Door Gasket, Magnetic (black)   (Replaces: 2264725)				$ 322.72
6A	LW10573400		Freezer Door (includes Illustration 8 & Door Handle) (black)   (Replaces: W10573400)		Appelez-nous	-
8A	WP2319263B		Door Gasket, Magnetic (black)   (Replaces: 2264722)			Immediately	$ 229.95

    View Diagram in Separate Window       Print Part List
