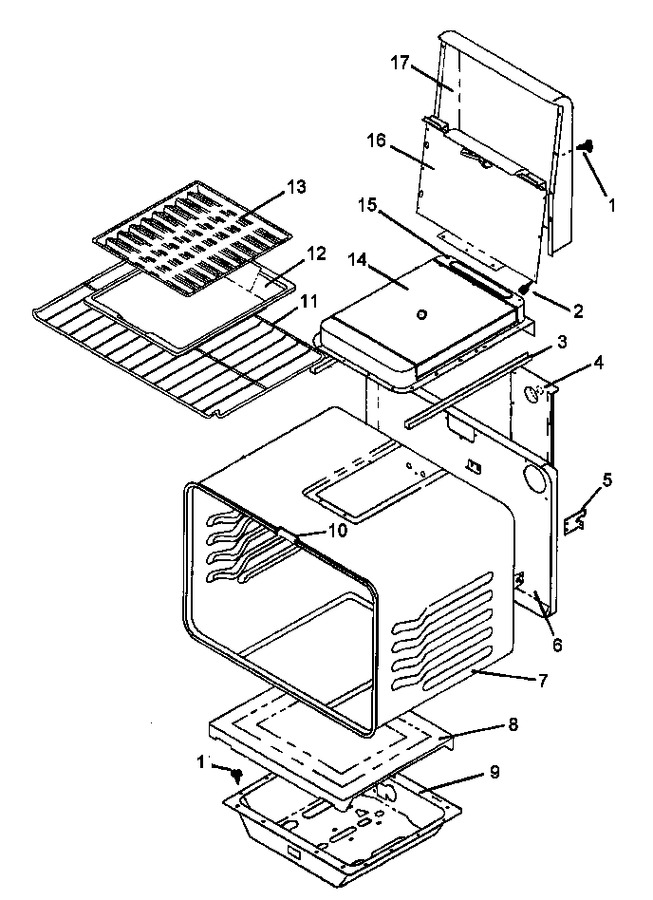

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
2	Y0306537		Screw, Stud		Appelez-nous	-
3	Y0304019		Channel, Broil Burner		Appelez-nous	-
4	0306366		Weld, Air Duct Broil Burner		Appelez-nous	-
5	Y0058852		Bracket, Oven Cavity		Appelez-nous	-
6	Y00000000		See Note Oven Back -- (part Of Oven Shell)		Appelez-nous	-
7	303465E		Oven Shell (gas W/lt)		Appelez-nous	-
8	58625CG		Oven Bottom		Appelez-nous	-
9	Y0063802		Burner Box, Lower		Appelez-nous	-
10	Y0315022		Cover, Chip		Appelez-nous	-
11	WP314763J		Rack,oven 22 27/32`` X 15 7/16``   (Replaces: 314763J)				$ 70.11
12	4396923		Pan, Broiler (cg)   (Replaces: 314175CG)			Immediately	$ 52.04
13	4396923		Grid, Broiler (cg)   (Replaces: 304451E)			Immediately	$ 52.04
14	Y0309733		Heat Shield, Broil		Appelez-nous	-
15	0306651		Weldm`t, Broil Chamber		Appelez-nous	-
16	306456E		Flue		Appelez-nous	-
17	306158B		Flue, Dilution		Appelez-nous	-
NI	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
NI	Y0310039		Insulation,wrapper		Appelez-nous	-
