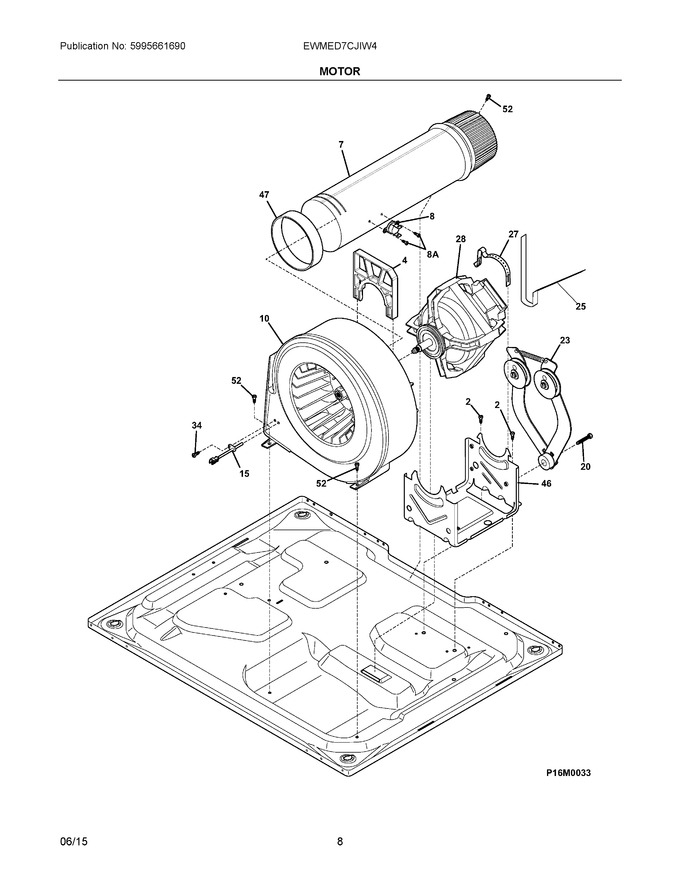

05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
4	134707900		Lock, Blower Housing				$ 22.05
7	5304509710		Tube, Exhaust, Rear   (Replaces: 134693900)				$ 26.94
8	134711401		Limiter, Thermal Exhaust, Flush Mount			Immediately	$ 35.48
10	137552300		Blower, Housing, Complete			Immediately	$ 318.51
15	134711300		Thermister, Exhaust				$ 53.87
20	131017900		Bolt, Hex Head, 1/4-20t X 1.25, Thread Cutting				$ 14.46
23	134784400		Idler Arm Assy, Reversing, With Pulley				$ 116.40
25	134719300		Belt, "h", Poly V, 5 Rib			Immediately	$ 68.68
27	134242400		Clamp, Motor Mtg.			Immediately	$ 35.76
28	137116000		Motor, Reversing, With Pulley				$ 297.11
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
46	134707400		Bracket, Motor Cradle				$ 59.01
47	131633300		Seal, Exhaust Tube				$ 19.06
52	137034600		Screw, #10-16x0.375		Appelez-nous	-
8A	134935200		Screw, #6 Pan Head, #8-32 X .25, Quadrex				$ 13.46
NIA	131089700		Spring-idler				$ 15.80
NIA	134693800		Pulley, Motor				$ 16.97
NIA	137030800		Nut, Wheel Lock, 1/4-20, Blower				$ 7.09
