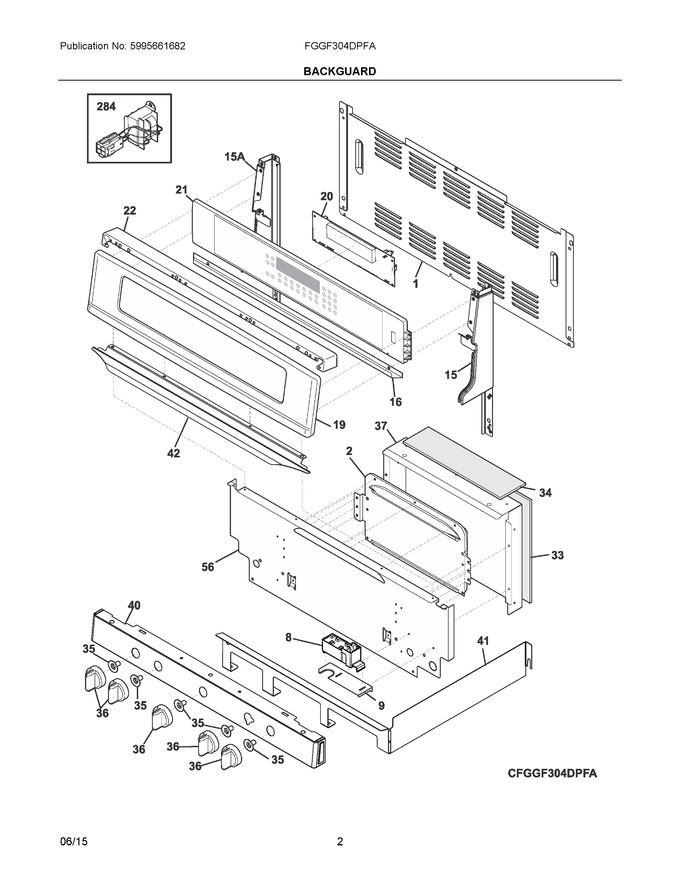

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316557600		Shield, Rear Wall				$ 70.04
2	318936501		Collector, Flue Assembly		Appelez-nous	-
8	5304508269		Module, Spark   (Replaces: 316262404)			Immediately	$ 105.46
9	318387304		Bracket, Spark Module		Appelez-nous	-
15	807437109		End Cap, Backguard (black) (rh)   (Replaces: 807437103)				$ 31.66
16	318571400		Brace, Control Panel		Appelez-nous	-
19	318573507		Panel, Control, Stainless				$ 207.11
20	316259506		Controller, Electronic, Es610w14		Appelez-nous	-
21	139093101		Control Panel, Assembly, Black, W/touch Pad		Appelez-nous	-
22	316546605		Cap, Backguard, Black, Top   (Replaces: 316546601)				$ 66.91
33	318346068		Insulation, Deflector, Back		Appelez-nous	-
34	318346067		Insulation, Deflector, Top		Appelez-nous	-
35	318587800		Deflector, Knob, (5)		Appelez-nous	-
36	316564509		Knob, Top Valve, Stainless, (5)				$ 131.96
37	318572504		Box, Deflector		Appelez-nous	-
40	316606116		Panel-manifold, Stainless		Appelez-nous	-
41	5304502299		Shield, Valves		Appelez-nous	-
42	5304502666		Trim, Extrusion, Black		Appelez-nous	-
56	318534925		Shield, Backguard, Black, Inner		Appelez-nous	-
284	316536100		Transformer			Immediately	$ 210.83
15A	807437110		End Cap, Backguard (black) (lh)   (Replaces: 807437104)				$ 29.48
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	318572705		Harness, Communication, Cntl To Relay		Appelez-nous	-
NI	809081201		Harness, Wiring, Mdl/ads & Probe		Appelez-nous	-
NI	318573700		Bracket, Control Panel		Appelez-nous	-
NIA	316355104		Insulation, Burner Valves		Appelez-nous	-
NIA	316355100		Insulation, Flue/side/door		Appelez-nous	-
NIA	316355105		Insulation, Manifold		Appelez-nous	-
