01 - Cover Sheet
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
07 - Wiring Diagram
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:

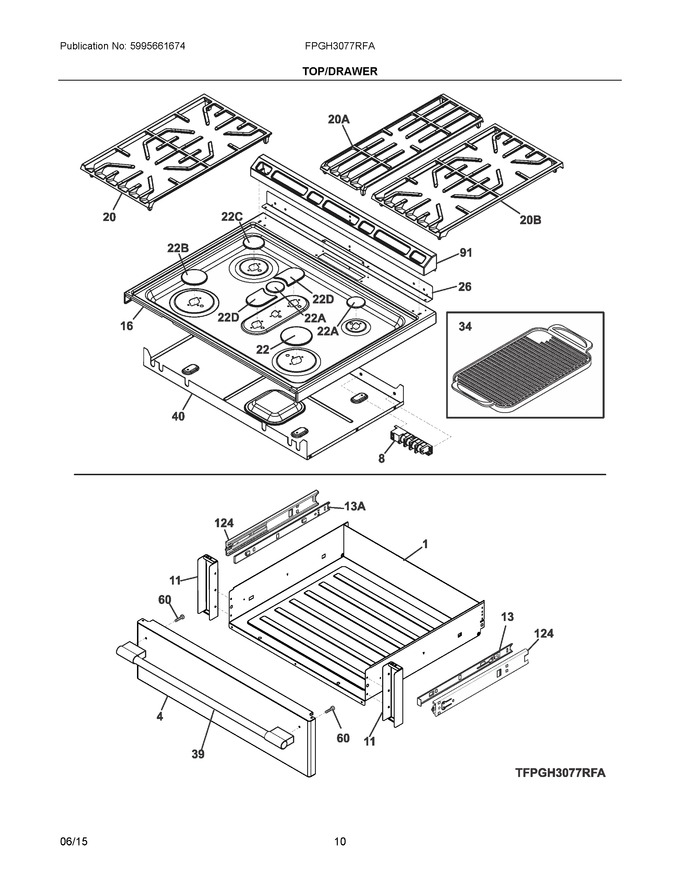

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507960 | Drawer, Storage, Black (Replaces: 809145602) |
|
$ 123.89 | |||||
| 4 | 5304514666 | Panel, Drawer Front, Stainless (Replaces: 809201801) |
|
$ 212.45 | |||||
| 8 | 808608806 | Ignitor Module, 8 Spark (Replaces: 5304500137) |
|
$ 58.39 | |||||
| 11 | 809089901 | Bracket, Panel, Drawer, (2) |
|
$ 24.10 | |||||
| 13 | 318259504 | Glide, Warmer, Inner Rh |
|
$ 29.49 | |||||
| 16 | 809020402 | Main Top, Stainless |
|
$ 379.18 | |||||
| 20 | 809144702 | Grate, Burner, Lh |
|
$ 246.87 | |||||
| 22 | 5304508468 | Cap, 17k Burner, Black (Replaces: 316262104) |
|
$ 49.45 | |||||
| 26 | 809209701 | Bracket, Support, Rear Trim |
|
- | |||||
| 34 | 5304495353 | Griddle |
|
Immediately | $ 166.84 | ||||
| 39 | 808816703 | Handle, Door/drawer, Stainless |
|
$ 182.86 | |||||
| 40 | 809145901 | Box, Burner, Bottom |
|
$ 104.90 | |||||
| 60 | 5303310510 | Screw, 10-24 X 0.625 |
|
$ 14.18 | |||||
| 91 | 5304500158 | Trim, Rear Vent, Stainless |
|
$ 287.05 | |||||
| 124 | 318330600 | Glide, Drawer, Outer/rh & Lh, (2) |
|
$ 77.97 | |||||
| 13A | 318259505 | Glide, Warmer, Inner Lh |
|
$ 33.03 | |||||
| 20A | 809144801 | Grate, Burner, Center |
|
$ 215.38 | |||||
| 20B | 809144701 | Grate, Burner, Rh |
|
$ 215.38 | |||||
| 22A | 5304508441 | Cap, 5k Burner, Matte, Black (Replaces: 316261704) |
|
Immediately | $ 35.04 | ||||
| 22B | 5304508443 | Cap, 14k Burner, Matte, Black (Replaces: 316262004) |
|
Immediately | $ 46.01 | ||||
| 22C | 5304508442 | Cap, 9.5k Burner, Matte, Black (Replaces: 316261804) |
|
Immediately | $ 36.55 | ||||
| 22D | 808851601 | Cap, Simmer Burner, Outer, (2) |
|
$ 89.31 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 318147430 | Bumper, (2) |
|
$ 18.95 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 5303288565 | Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg |
|
$ 3.12 | |||||
| NIA | 316008401 | Washer, Handle Screw, Flat (Replaces: 5304490894) |
|
$ 11.34 | |||||
| NIA | 5304505563 | Harness, Ignition Ground (Replaces: 5304501930) |
|
Immediately | $ 16.23 |
