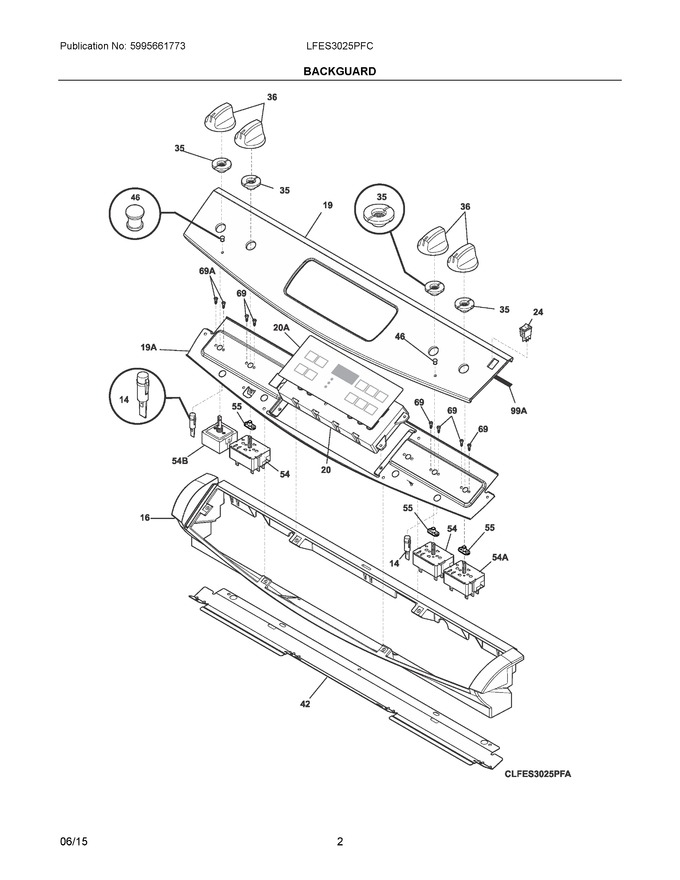

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	318293901		Light, Indicator, 125v, (2)				$ 53.66
16	318299102		Console, Assy., Black				$ 494.96
19	139038827		Control Panel Assembly, Steel/glass, Stainless/black				$ 291.71
20	316557139		Clock/timer, Electronic, Es300				$ 216.67
24	5304527841		Switch, Rocker, Black   (Replaces: 316005602)			Immediately	$ 11.38
35	318183105		Support, Glass, Black, (4)				$ 21.37
36	316543810		Knob, Control, Black				$ 46.79
42	318574701		Support, Control Panel, Black				$ 62.69
46	318228301		Lens, Indicator Light				$ 11.29
54	318293830		Switch, Surface Element, Small, (2)			Immediately	$ 94.36
55	318402901		Bushing, Switch				$ 17.72
69	5304480396		Screw, 8-32 X 3/8", (4)				$ 11.34
19A	9910999SI		Panel, Control Mtg.   (Replaces: 318224401)		Appelez-nous	-
20A	316419141		Overlay, Clock, Black, Es300			Immediately	$ 56.87
54A	318293831		Switch, Surface Element, Large			Immediately	$ 92.69
54B	318191023		Switch, Infinite, Dual			Immediately	$ 70.64
69A	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
99A	318223900		Gasket, Dark Grey			Immediately	$ 82.80
NI	807632802		Harness, Wiring, Oven Control		Appelez-nous	-
NI	808609301		Harness, Wiring, Surface Control		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
