SELECT A DIAGRAM

01 - Cover Sheet

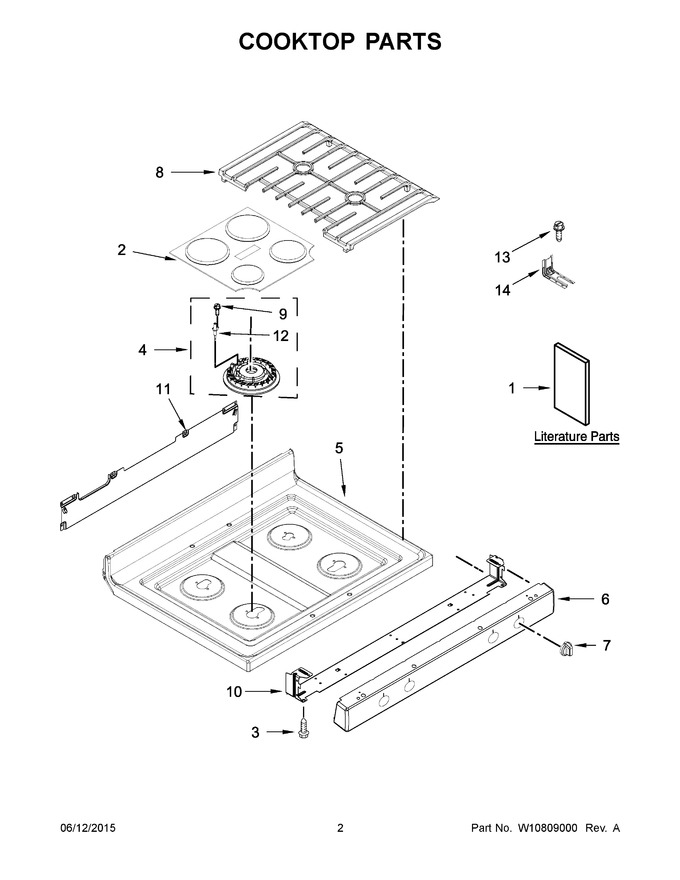

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Manifold Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10553363		Instructions, Installation		Appelez-nous	-
2	WPW10183375		Set, Burner Cap (black)   (Replaces: W10183375)				$ 132.80
3	WPW10067840		Screw   (Replaces: W10067840)				$ 6.98
4	WPW10515455		Assembly, Burner (17.5k) (left Front & Right Front)   (Replaces: W10515455)			Immediately	$ 101.22
5	W10366732		Cooktop (black)		Appelez-nous	-
6	W10655866		Panel, Manifold (stainless)		Appelez-nous	-
7	WPW10650400		Knob, Control (stainless)   (Replaces: W10650400)				$ 135.45
8	W11381652		Set, Grate (black)   (Replaces: W10655132)				$ 322.91
9	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.12
10	W10534174		Bracket, Manifold		Appelez-nous	-
11	W10530070		Bracket, Rear Gas Cooktop		Appelez-nous	-
12	WPW10515459		Electrode   (Replaces: W10515459)			Immediately	$ 37.52
13	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 26.33
14	W11447673		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.64
1A	W10667178		Guide, Use & Care		Appelez-nous	-
1B	W10758786		Sheet, Tech		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1D	W10400066		Guide, Quick Start (english)		Appelez-nous	-
4A	WPW10515454		Assembly, Burner (9.5k) (left Rear)   (Replaces: W10515454)				$ 99.21
4B	WPW10515453		Assembly, Burner (6k) (right Rear)   (Replaces: W10515453)				$ 85.10
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10519952		Harness, Main		Appelez-nous	-
NI	W10625552		Harness, Cooktop		Appelez-nous	-
NI	W10519920		Harness, Dsi Ground				$ 18.05
NI	W11161843		Harness, Bake/broil   (Replaces: W10753750)				$ 185.62
NI	3196696		Clip, Harness		Appelez-nous	-
NI	W10334923		Clip, Wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
