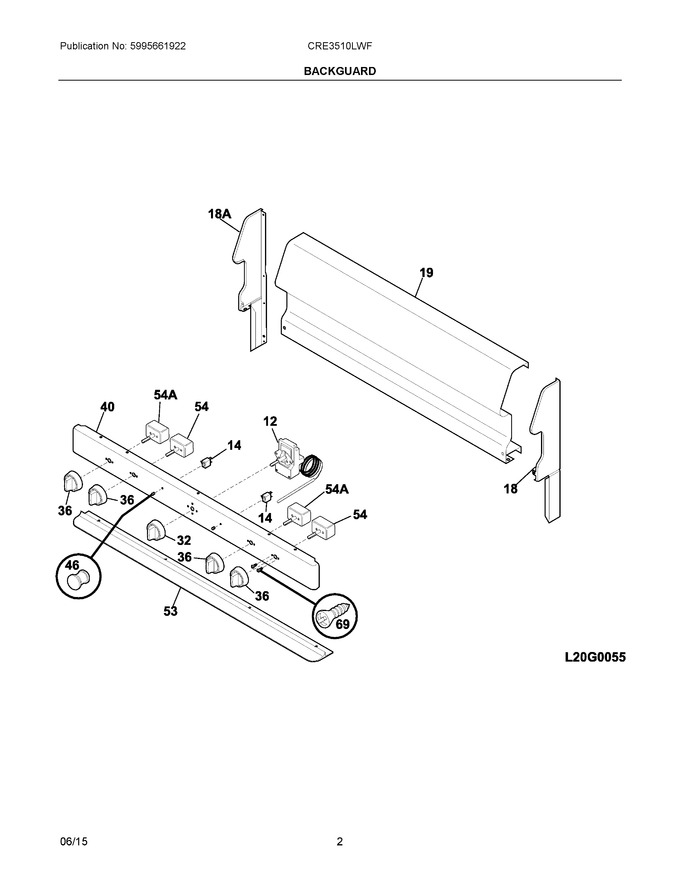

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	316215901		Thermostat				$ 338.99
14	316022503		Light/lamp, Indicator, Surface, 250 V			Immediately	$ 70.16
18	316263404		End Cap, White, Rh		Appelez-nous	-
19	316263382		Panel, Backguard, White		Appelez-nous	-
32	316102331		Knob, Thermostat, White		Appelez-nous	-
36	316102327		Knob, Control, White		Appelez-nous	-
40	316201853		Panel-manifold, White, W/graphic		Appelez-nous	-
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
53	316238502		Shield, Heat, Extrusion		Appelez-nous	-
54	316498602		Switch, Infinite, Small Element				$ 88.38
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
18A	316263405		End Cap, White, Lh		Appelez-nous	-
54A	316498603		Switch, Infinite, Large Element				$ 81.88
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303271648		Screw, Wafer Hd Sq Dr, 8-18ab X 0.5			Immediately	$ 13.46
