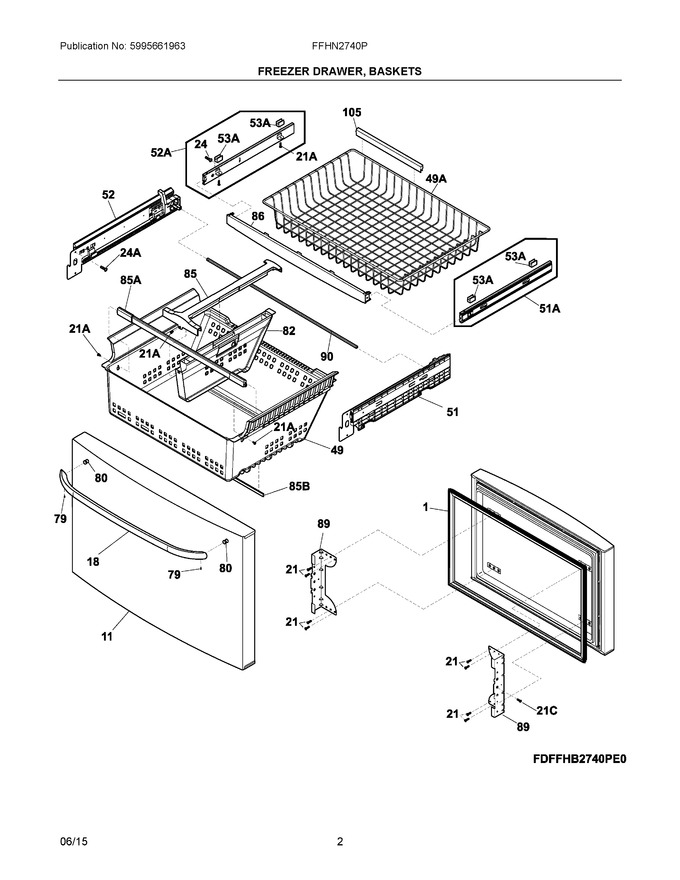

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304537408		Gasket-frzr Drawer, Black, Magnetic   (Replaces: 241778304)			Immediately	$ 86.28
11	241987935		Door-frzr, Black, Complete Assy		Appelez-nous	-
18	242090503		Handle-door, Black, W/set Screws		Appelez-nous	-
21	241690602		Screw, Quadrex (#10-16 Hilo)			Immediately	$ 10.63
24	5304515677		Screw, Truss Hd Quad (#10-16 X .500, Zinc)   (Replaces: 240383406)			Immediately	$ 19.23
49	242159401		Basket, Freezer, Plastic, Lower		Appelez-nous	-
51	5303918690		Slide Assembly, Basket Lower, Rh, Freezer Drawer   (Replaces: 242130508)				$ 271.18
52	242130507		Slide Assembly, Basket Lower, Lh, Freezer Drawer		Appelez-nous	-
79	218755409		Screw-set		Appelez-nous	-
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
82	242168701		Divider, Basket		Appelez-nous	-
85	242130901		Divider, Basket, Lower				$ 91.76
86	242090701		Bar-stabilizer, Freezer Drawer				$ 63.32
89	241972302		Bracket-freezer Drawer				$ 109.21
90	242136903		Bar-timing		Appelez-nous	-
105	242116801		Trim-basket				$ 17.72
21A	241953902		Screw, (#8 - 18 X .380)			Immediately	$ 17.11
21C	241899703		Screw, Truss Head (#10-32 X 1/4, Zinc)				$ 15.92
24A	240383412		Screw, Truss Hd Quad (#10-16 X .750, Zinc)				$ 11.44
49A	241780815		Basket-frzr, Upper				$ 194.78
51A	241894223		Slide Assembly, Basket, Rh, Freezer Drawer			Immediately	$ 132.53
52A	241894224		Slide Assembly, Basket, Lh, Freezer Drawer				$ 131.83
53A	5303918801		Retainer-basket   (Replaces: 242216301)				$ 12.89
85A	242168501		Support-beam, Divider, Lower Basket		Appelez-nous	-
85B	241872204		Support-beam, Lower Basket		Appelez-nous	-
NI	242146401		Screw, Ser Hex Wash Hd, 1/4-20 X 5/8, (4)			Immediately	$ 14.27
NI	241601001		Wrench, Allen		Appelez-nous	-
NI	5304453707		Screw, Quad Hilo, #8-18, (2)   (Replaces: 241953901)			Immediately	$ 15.92
NI	242015001		Screw, 8-18 X 1/2			Immediately	$ 16.30
NIA	242039702		Screw, Shoulder, #10-16, (2)				$ 4.26
NIA	241701902		Screwdriver, Hex, (3/32", Ball Driver)				$ 19.85
NIA	5304497384		Plate, Tapping   (Replaces: 242147601)				$ 15.60
NIA	242139201		Spring-compression, Divider, Lower Basket				$ 19.72
NIA	242011101		Pin-lock				$ 15.17
NIAA	242039701		Screw, Basket Slides				$ 13.46

    View Diagram in Separate Window       Print Part List
