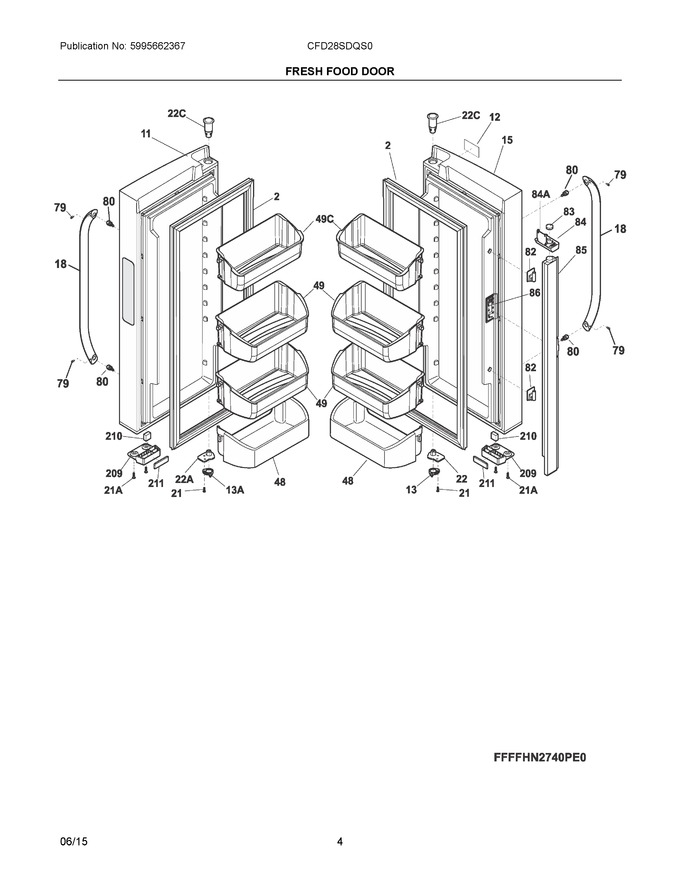

03 - Fresh Food Door


04 - Cabinet


05 - Shelves


06 - Cooling System


07 - Controls


08 - Ice Maker


09 - Wiring Diagram


10 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241778315		Gasket-refr Door, Gray, Magnetic   (Replaces: 241778307)			Immediately	$ 89.88
11	242185627		Door-refr, Stainless, Lh, W/disp		Appelez-nous	-
12	242115801		Nameplate, Crosley		Appelez-nous	-
15	242185626		Door-refr, Stainless, W/o Dips				$ 535.82
18	242059301		Handle-door, Stainless, W/set Screws				$ 219.03
48	242071401		Bin-door, Pseudo, White			Immediately	$ 91.99
49	242079701		Bin-door, Gallon   (Replaces: 242011501)			Immediately	$ 110.95
79	218755405		Screw-set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 20.56
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
82	5304453707		Screw, Plask, #8-18 X .500   (Replaces: 240363402)			Immediately	$ 15.92
83	241812201		Magnet, Door				$ 65.92
84	242190401		Guide-mullion, Magnet Cover, Flipper				$ 16.70
85	241778808		Flipper Mullion Assembly, W/heater			Immediately	$ 315.40
86	241779802		Hinge-mullion, Center, Flipper   (Replaces: 241779801)			Immediately	$ 36.73
209	242291001		Housing, Magnet, White				$ 20.48
210	241779101		Magnet, Door			Immediately	$ 31.19
211	241979601		Bumper, Rubber, White				$ 22.68
21A	5304453707		Screw, Quad Hilo, #8-18, (2)   (Replaces: 241953901)			Immediately	$ 15.92
49C	242079901		Bin-door, 1/2 Gallon			Immediately	$ 91.99
84A	5303918644		Cover-mullion, Magnet Cover   (Replaces: 242190501)				$ 41.44
NI	242015001		Screw, 8-18 X 1/2			Immediately	$ 16.30
NI	241806601		Connector-water, Straight, 5/16 To 5/16   (Replaces: 242103001)			Immediately	$ 70.56
NIA	242068601		Bumper, Flipper Mullion				$ 14.41
NIA	241601001		Wrench, Allen		Appelez-nous	-
NIB	241701902		Screwdriver, Hex, 3/32", Ball Driver				$ 19.85
