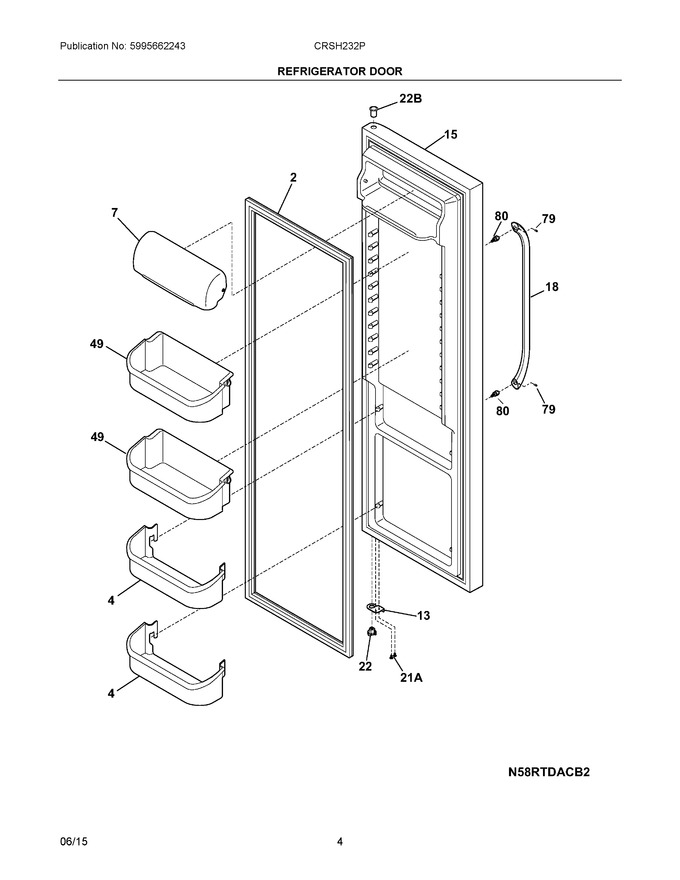

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786015		Gasket-refr Door, Black, Magnetic   (Replaces: 241786007)			Immediately	$ 94.66
4	240363701		Bin-door, 2-liter			Immediately	$ 59.42
7	240338313		Door, Dairy, Clear   (Replaces: 240338303)			Immediately	$ 80.80
13	240581905		Door Stop, Black, Ref				$ 60.25
15	807460103		Refrigerator Door, Complete, Black		Appelez-nous	-
18	242152703		Handle-door, Black, Refr/frz, W/set Screw		Appelez-nous	-
22	242015302		Bearing-hinge(ref), Black, Closer				$ 10.62
49	240324501		Bin-door, Gallon			Immediately	$ 69.06
79	218755402		Screw-set, 10-32 X .500 In			Immediately	$ 33.00
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
21A	240442708		Screw-#10-32 X 3/4, Zinc   (Replaces: 240442706)				$ 8.34
22B	240328404		Bearing-hinge, Black, Upper				$ 22.87
NI	242115801		Nameplate, Crosley		Appelez-nous	-
