01 - Cover Sheet
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

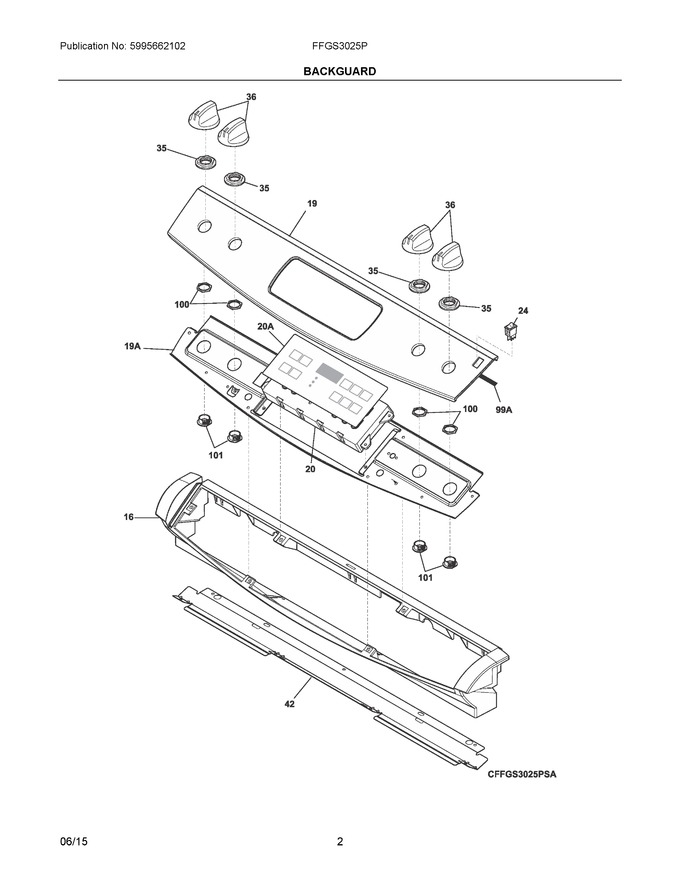

| 16 | 318299100 | Console, Assy., White |
|
$ 418.11 | |||||
| 19 | 318235194 | Panel, Control, White |
|
- | |||||
| 20 | 316557141 | Clock/timer, Electronic, Es300 |
|
$ 455.50 | |||||
| 24 | 5304527842 | Switch, Rocker, White (Replaces: 316005607) |
|
Immediately | $ 16.13 | ||||
| 35 | 318233720 | Retainer, Control Panel, Black |
|
$ 20.48 | |||||
| 36 | 316543817 | Knob, Control, White |
|
- | |||||
| 42 | 318574701 | Support, Control Panel, Black |
|
$ 62.69 | |||||
| 100 | 318233800 | Nut, Hex |
|
$ 63.53 | |||||
| 101 | 318233400 | Bushing, Retainer |
|
$ 43.21 | |||||
| 19A | 318224402 | Panel, Control Mtg. |
|
- | |||||
| 20A | 316419137 | Overlay, Clock, White, Es300 |
|
Immediately | $ 31.34 | ||||
| 99A | 318223900 | Gasket, Dark Grey |
|
Immediately | $ 82.80 | ||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 |
