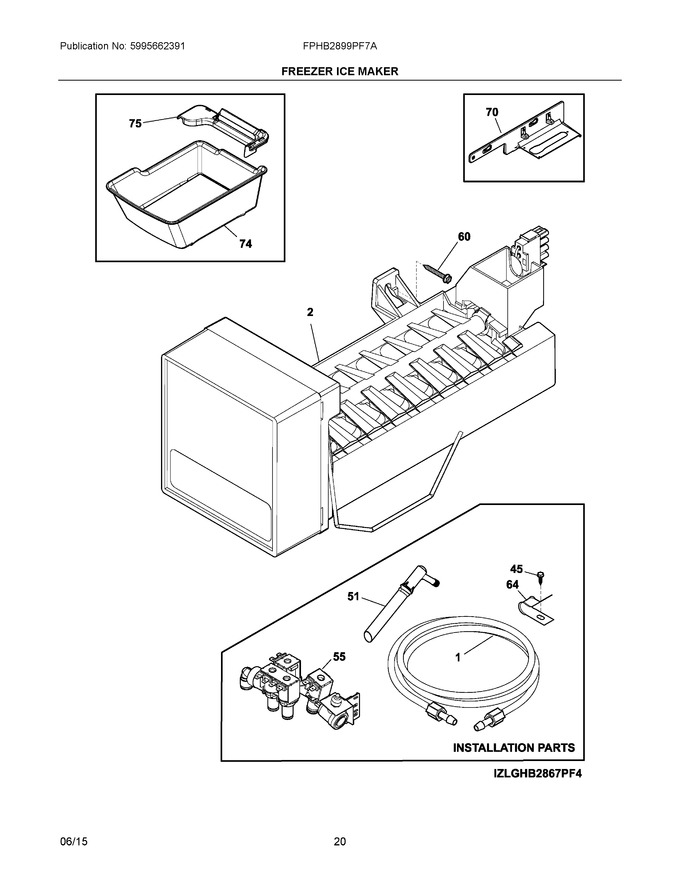

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976436 | Tube-water, 5/16 - 42", Yellow, Sd (Replaces: 218976434) |
|
Immediately | $ 8.51 | ||||
| 2 | 5303918493 | Ice Maker, Radius Cube, 115 V, Service (Replaces: 241798219) |
|
Immediately | $ 231.95 | ||||
| 45 | 5304453923 | Screw, Hex Hd Wshr, #8-32 X 1/2 |
|
- | |||||
| 51 | 242169404 | Tube-water, Ice Mold Fill, 1/4 - 44", Blue, W/extension |
|
- | |||||
| 55 | 242253002 | Valve-water, Quad Solenoid |
|
Immediately | $ 244.75 | ||||
| 60 | 5304455852 | Screw, Hex Washer Head, 8-15a X 1.000, (2) (Replaces: 5303207328) |
|
$ 12.76 | |||||
| 64 | 5304453921 | Clamp-cable |
|
- | |||||
| 70 | 242041701 | Bracket-ice Maker |
|
$ 70.88 | |||||
| 74 | 242127901 | Container-ice |
|
$ 197.17 | |||||
| 75 | 242240101 | Shield, Ice Bucket, Wide |
|
$ 76.92 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 241503901 | Connector-water, Straight, 5/16 To 1/4 |
|
$ 51.22 | |||||
| NIA | 5303918571 | Tube-water, Ice Mold Fill, Black, Extension (Replaces: 241844403) |
|
$ 164.24 | |||||
| NIA | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 6.38 | |||||
| NIB | 240363602 | Screw-shoulder |
|
$ 13.65 | |||||
| NIB | 241920106 | Tube-water, Assembly, 5/16 - 54", Green, Ice Maker Fill, W/extension (Replaces: 241920104) |
|
Immediately | $ 60.67 | ||||
| NIC | 241964707 | Tube-water, 1/4 - 36", Green |
|
Immediately | $ 18.43 | ||||
| NID | 241965906 | Tube-water, 5/16 - 67", Natural |
|
Immediately | $ 24.10 | ||||
| NIE | 242220204 | Tube-water Inlet, .315 - 93.50", Brown/tan (Replaces: 242220201) |
|
Immediately | $ 40.32 | ||||
| NIF | 242220202 | Tube-water Inlet, .315 - 57.50", Natural |
|
$ 29.06 |
