01 - Cooktop Assy

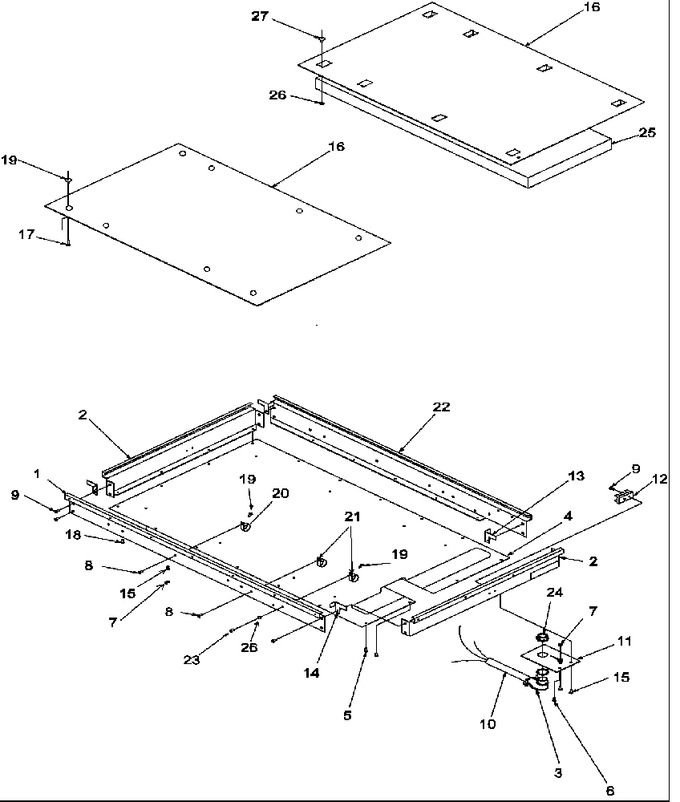

02 - Heater Box Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D8596511		Heat Box Side Pnt		Appelez-nous	-
2	D8596703		Heat Box End Pnt		Appelez-nous	-
3	M0321505		Connector, Conduit		Appelez-nous	-
4	D8597006		Access Panel		Appelez-nous	-
5	M0234016		Screw		Appelez-nous	-
6	M0227817		Screw		Appelez-nous	-
7	M0282402		Usr 0041847		Appelez-nous	-
8	M0202521		Screw		Appelez-nous	-
9	WPW10068250		Screw   (Replaces: M0234029)				$ 3.66
10	D8597201		Harness, Conduit		Appelez-nous	-
11	B5036301		Plate, Conduit		Appelez-nous	-
12	B5677203		Terminal Block		Appelez-nous	-
13	B5036901		Bracket, Corner		Appelez-nous	-
14	B5036902		Bracket, Corner		Appelez-nous	-
15	M0251002		Screw		Appelez-nous	-
16	D8601606		Heater Box Baffle		Appelez-nous	-
17	M0571201		Eyelet		Appelez-nous	-
18	M0293502		Stud-self Clinch		Appelez-nous	-
19	M0282005		Nut K				$ 7.07
20	M0102303		Clamp		Appelez-nous	-
21	M0102305		Clamp, Tube		Appelez-nous	-
22	D8596512		Heat Box Side Pnt		Appelez-nous	-
23	WP488234		Screw   (Replaces: M0234422)				$ 6.07
24	M0327601		Bushing, Conduit		Appelez-nous	-
25	C2741701		Insulation		Appelez-nous	-
