SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

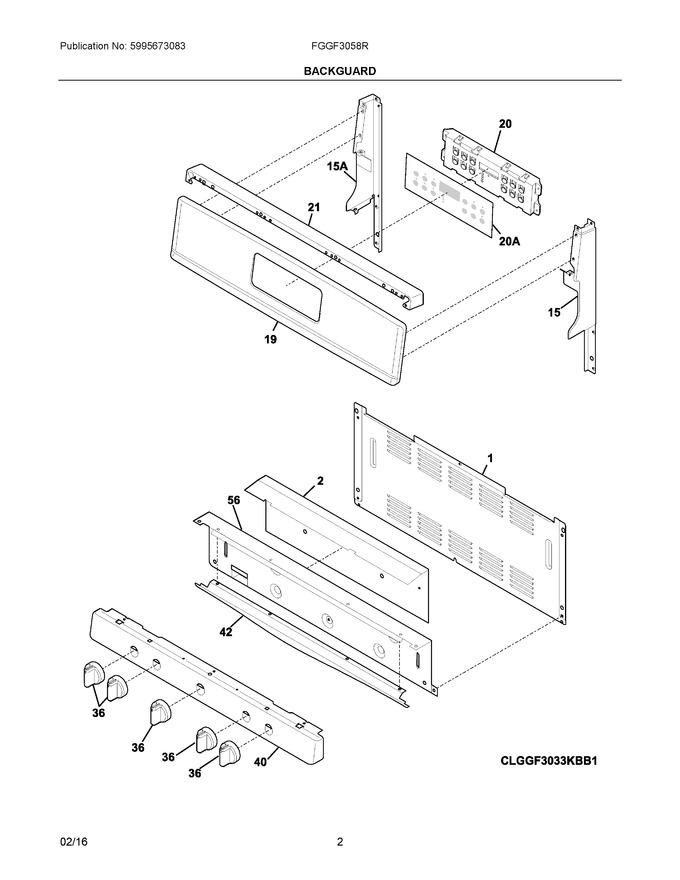

1	316557600		Shield, Rear Wall				$ 70.04
2	316497601		Shield, Backguard, Inner				$ 49.40
15	807437109		End Cap, Backguard, Black, Rh   (Replaces: 807437103)				$ 31.66
19	316572405		Panel, Backguard, Black				$ 169.26
20	316560118		Controller, Electronic, Es540			Immediately	$ 426.47
21	316546605		Cap, Backguard, Black, Top   (Replaces: 316546601)				$ 66.91
36	316564511		Knob, Top Valve, Black, (4)				$ 35.07
40	316605352		Panel, Manifold, Black		Appelez-nous	-
42	316416204		Trim, Extrusion, Black   (Replaces: 316416200)				$ 43.99
56	316230705		Shield, Backguard, Inner		Appelez-nous	-
15A	807437110		End Cap, Backguard, Black, Lh   (Replaces: 807437104)				$ 29.48
20A	316419828		Overlay, Clock, Black, Es540			Immediately	$ 18.83
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
