SELECT A DIAGRAM

01 - Cooktop Assy

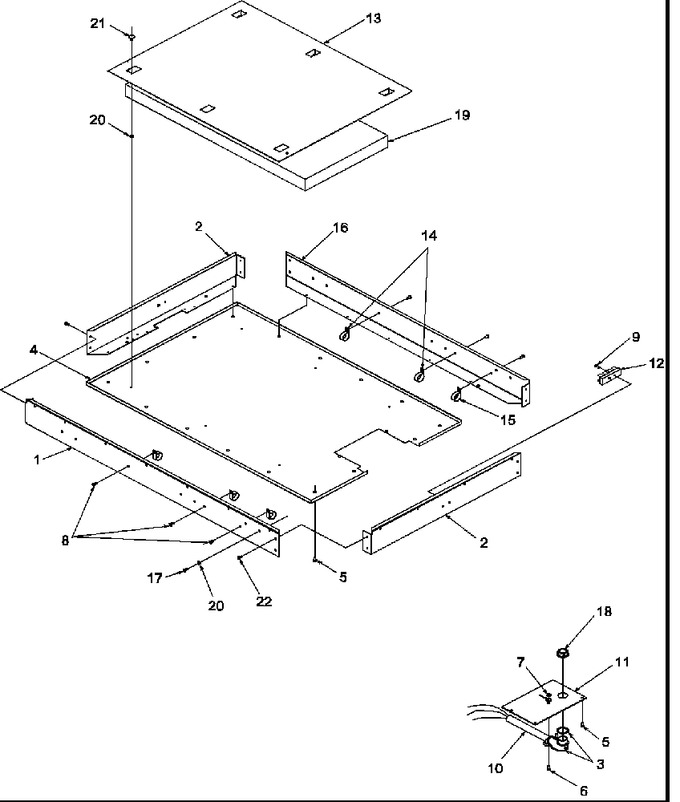

02 - Heater Box Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10373411		Side, Heater Box		Appelez-nous	-
2	10426006		End, Heater Box		Appelez-nous	-
3	M0321505		Connector, Conduit		Appelez-nous	-
4	10426302		Panel, Access		Appelez-nous	-
5	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
6	M0227817		Screw		Appelez-nous	-
7	M0282402		Usr 0041847		Appelez-nous	-
8	M0210418		Screw		Appelez-nous	-
9	WPW10068250		Screw   (Replaces: M0234029)				$ 3.66
10	D8597202		Harness, Conduit		Appelez-nous	-
11	10400401		Plate Conduit		Appelez-nous	-
12	B5677203		Terminal Block		Appelez-nous	-
13	10159706		Baffle, Heater Box		Appelez-nous	-
14	M0107801		Clamp, Tube (1/2``)		Appelez-nous	-
15	M0107802		Clamp Tube		Appelez-nous	-
16	10373511		Side, Heater		Appelez-nous	-
17	WP488234		Screw   (Replaces: M0234422)				$ 6.07
18	M0327601		Bushing, Conduit		Appelez-nous	-
19	C2741705		Insulation		Appelez-nous	-
20	M0272803		Lock Washer		Appelez-nous	-
21	A4539601		Pop Rivet		Appelez-nous	-
22	12991101		Screw, Sm   (Replaces: M0210816)				$ 11.55

    View Diagram in Separate Window       Print Part List
