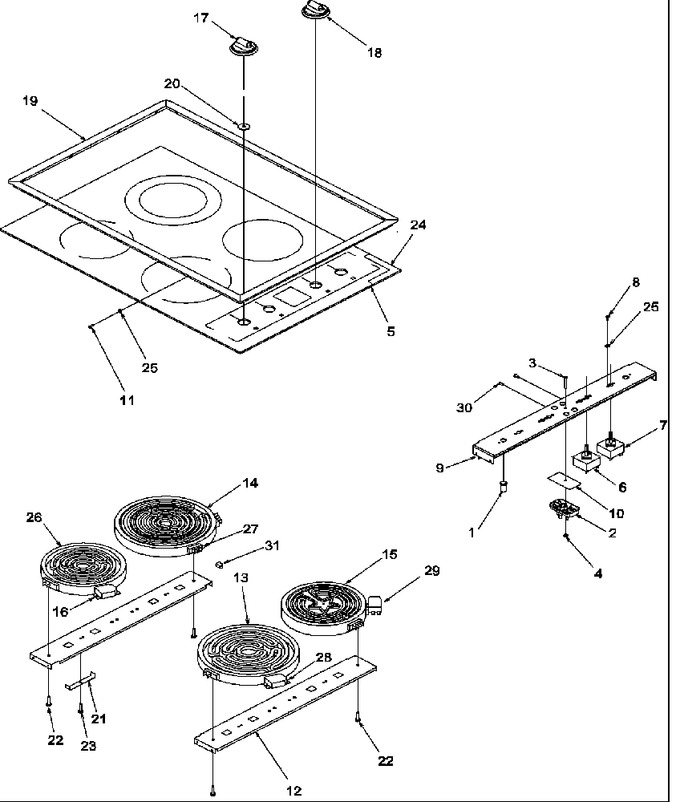

01 - Cooktop Assy


02 - Heater Box Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10035901		Light, Indicator		Appelez-nous	-
2	C2702603		Light, Indicator		Appelez-nous	-
3	M0202521		Screw		Appelez-nous	-
4	M0281002		Nut A		Appelez-nous	-
5	10426203		Cooktop, Ceramic (white)		Appelez-nous	-
6	W11122012		Control, Surface   (Replaces: 10027906)				$ 227.43
7	C2740705		Switch, Dual Infinite		Appelez-nous	-
8	W11214483		Screw, Mach   (Replaces: M0202321)				$ 12.62
9	D8596806		Bracket, Control Mtg		Appelez-nous	-
10	A4402901		Insulation, Ind. Light		Appelez-nous	-
11	W11245710		Screw, Sm (stnls)   (Replaces: M0210417)			Immediately	$ 12.65
12	10432902		Bracket, Element Mtg.		Appelez-nous	-
13	10252502		Heater,haloring(1800w)assy.		Appelez-nous	-
14	10008401		Dual Heater		Appelez-nous	-
15	W10823699		Element-quick Start   (Replaces: D8598805)			Immediately	$ 145.67
16	10061012		Limiter-temp, Small		Appelez-nous	-
17	307620W		Knob, Control (wht)				$ 24.05
18	307621W		Knob, Dual Element (wht)		Appelez-nous	-
19	10426103		Trim, Frame, White		Appelez-nous	-
20	B5037602		Cover, Control Hole K				$ 5.02
21	B5001201		Spring		Appelez-nous	-
22	M0228307		Screw, Shoulder		Appelez-nous	-
23	M0217224		Screw		Appelez-nous	-
24	M0275042		Tape, Vinyl Foam, Roll		Appelez-nous	-
25	M0272803		Lock Washer		Appelez-nous	-
26	10252501		Heater, Haloring Small		Appelez-nous	-
27	10061004		Limiter, Temp.		Appelez-nous	-
28	10061003		Limiter, Temp, Large		Appelez-nous	-
29	10061002		Limiter		Appelez-nous	-
30	M0211519		Screw		Appelez-nous	-
31	M0118801		Clip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
