SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body

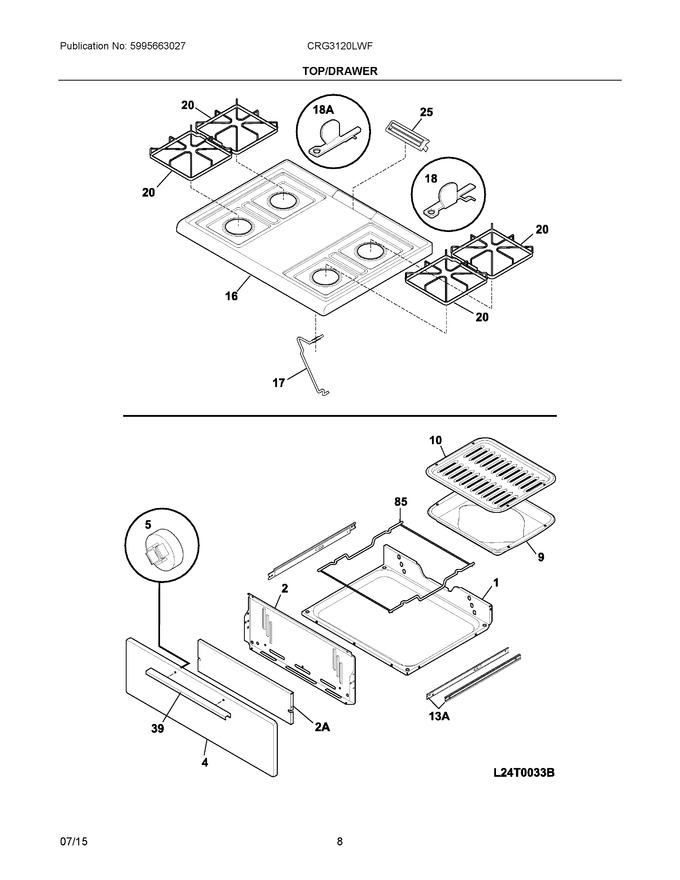

05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage, Low Broil				$ 232.57
2	316236401		Liner, Low Broil				$ 119.96
4	316231211		Panel, Drawer, White				$ 51.92
5	316129100		Fastener, Push-in Nut, Nylon, Spacer		Appelez-nous	-
9	316081902		Pan, Broiler, Slate Blue				$ 83.42
10	316082002		Insert, Broiler Pan, Slate Blue				$ 81.14
16	316273001		Main Top, White				$ 414.87
17	316066900		Rod, Maintop Support				$ 66.31
18	08067747		Bracket, Hinge, Main Top Rh		Appelez-nous	-
20	316277801		Grate, Black, (4)				$ 124.03
25	316104500		Cover, Vent, Chrome		Appelez-nous	-
39	316019511		Handle, Drawer, White				$ 109.36
85	316115600		Rack, Low Broil				$ 105.47
13A	316534200		Glide-low Broil, Inner				$ 42.75
18A	08067746		Bracket, Hinge, Main Top Lh		Appelez-nous	-
2A	316541500		Shield, Broiler				$ 61.37
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black				$ 13.46
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021120		Screw, Shoulder Head, 8-18 X 5/8, (2), Square Drive				$ 13.28
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
