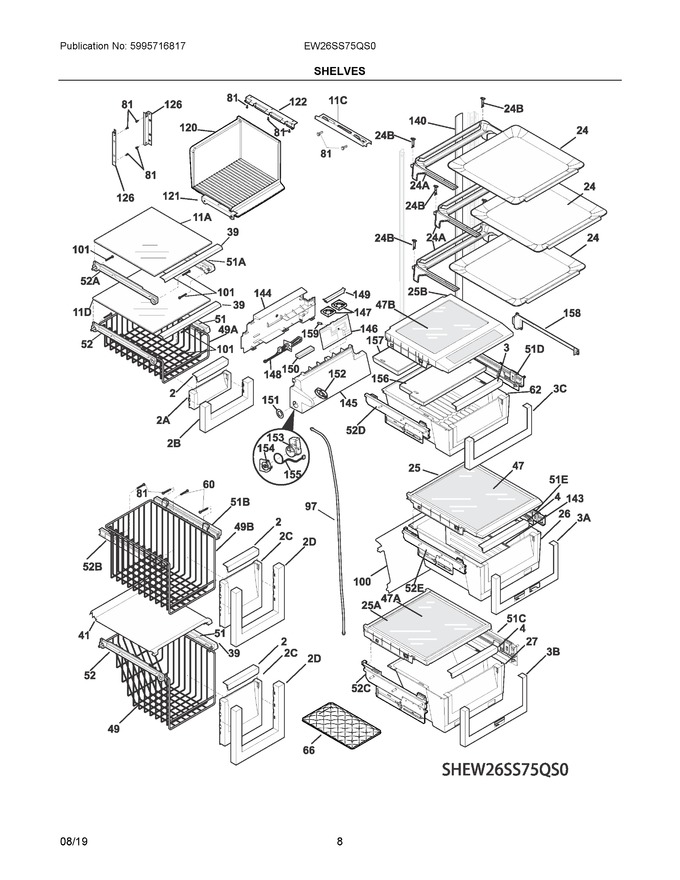

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241741301		Trim-basket				$ 55.99
3	241745301		Handle-crisper Pan, Silver				$ 74.81
4	241950801		Handle-crisper Pan, Silver				$ 58.59
21	218843801		Screw, Hx Wshr Hd Sems, 8-15a X 0.625   (Replaces: 5304455658)				$ 14.41
24	242128405		Shelf-"spill-safe", Formed Glass, Lift-off		Appelez-nous	-
25	241745502		Cover-crisper Pan, Upper		Appelez-nous	-
26	241745604		Pan-crisper, Upper, W/divi Retainer		Appelez-nous	-
27	241950502		Pan-crisper, Lower				$ 229.64
39	240367602		Trim-shelf, Front				$ 45.36
41	241855801		Baffle-air				$ 72.30
45	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile   (Replaces: 5308016566)				$ 14.18
47	240350649		Insert-pan Cover, Glass			Immediately	$ 123.89
49	241743601		Basket-sliding				$ 180.65
51	241799601		Hanger-basket, Rh				$ 41.72
52	241799701		Hanger-basket, Lh				$ 34.02
60	218362501		Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2)				$ 12.05
62	241784101		Pan-meat				$ 210.55
66	242131002		Mat-wine				$ 71.98
97	241532006		Water Tank				$ 130.41
100	240326304		Cover-water Tank				$ 73.57
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 13.46
120	242149101		Shelf-ice Cream		Appelez-nous	-
121	242149001		Rail-ice Cream Shelf, Lh		Appelez-nous	-
122	242159001		Rail-ice Cream Shelf, Rh		Appelez-nous	-
126	241674401		Channel, Auger Mtg, Lh				$ 47.48
140	241812502		Channel, Wtr Tube Cover				$ 76.97
143	241746001		Divider-crisper Pan				$ 51.50
11A	240350604		Shelf-freezer, Glass, Upper				$ 114.52
11C	240324101		Shelf-pizza				$ 59.91
11D	240350605		Shelf-freezer, Glass, Lower				$ 106.93
126A	241674402		Channel, Auger Mtg, Rh				$ 43.24
24A	242167303		Frame-shelf, Lift-off, W/gasket&bumper		Appelez-nous	-
25A	241747102		Cover-crisper Pan, Lower				$ 99.49
25B	5303918419		Cover-pan, Ptd, Cover Kit Wseal				$ 215.57
2A	241741601		Trim-basket, Front				$ 41.11
2B	241741701		Trim-basket		Appelez-nous	-
2C	241743201		Trim-basket				$ 83.69
2D	241743301		Trim-basket				$ 44.47
3A	241745801		Trim-crisper, W/hum Cntl&btn		Appelez-nous	-
3B	241745901		Trim-crisper, W/hum Cntl&btn		Appelez-nous	-
3C	241748601		Trim-meat Pan				$ 29.07
47A	240350603		Insert-pan Cover, Glass			Immediately	$ 115.52
47B	240443381		Insert-pan Cover, Glass				$ 119.79
49A	241741801		Basket-sliding, Upper, Half		Appelez-nous	-
49B	241743401		Basket-sliding, Upper, Full				$ 153.62
51A	240395502		Hanger-basket, Rh				$ 73.00
51B	241809101		Hanger-basket, Rh				$ 187.82
51C	240579810		Hanger-basket, Lower Crisper, Rh		Appelez-nous	-
51D	240579816		Hanger-basket, Ptd, Rh		Appelez-nous	-
51E	240579818		Hanger-basket, Upper Crisper, Rh		Appelez-nous	-
52A	240395602		Hanger-basket, Lh				$ 61.66
52B	241809102		Hanger-basket, Lh				$ 158.05
52C	240579809		Hanger-basket, Lower Crisper, Lh				$ 203.23
52D	240579815		Hanger-basket, Ptd, Lh		Appelez-nous	-
52E	240579817		Hanger-basket, Upper Crisper, Lh				$ 279.41
NI	242174901		Nut-soft Close Spacer		Appelez-nous	-
NIA	242200102		Clip, Tubing, 90 Deg Elbow   (Replaces: 242200101)				$ 10.63
NIA	241781601		Seal-return Air				$ 9.10
NIBA	297049500		Clip-slide, Basket			Immediately	$ 20.56
NIBA	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
NICA	242169701		Spacer-soft Close, Lh				$ 70.56
NICA	242169702		Spacer-soft Close, Rh				$ 86.10
NIEA	242169902		Spacer-soft Close, Rh		Appelez-nous	-
NIEA	242169901		Spacer-soft Close, Lh				$ 76.23
