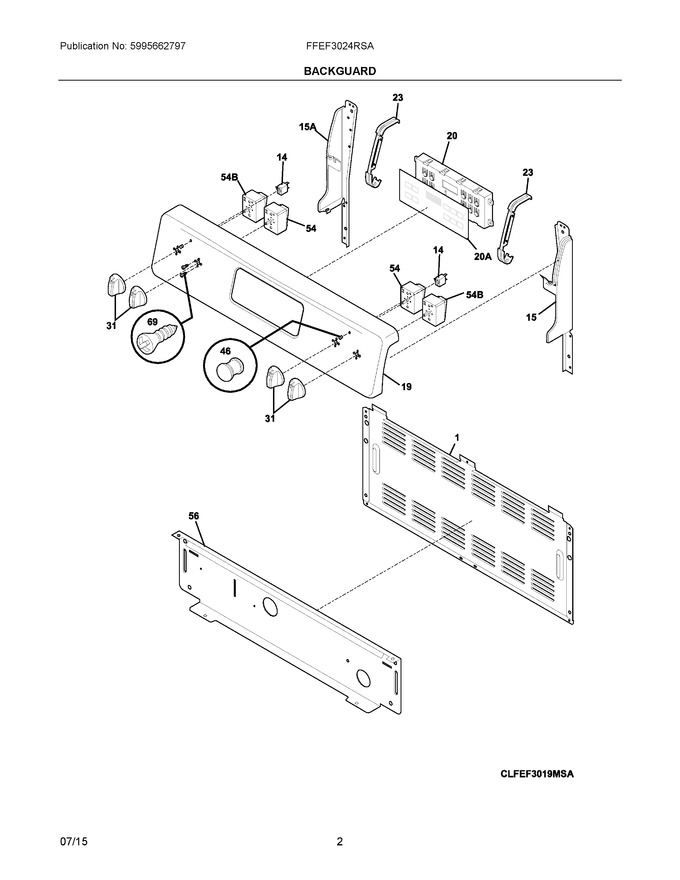

02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316281802 | Shield, Backguard, Rear Wall (Replaces: 316281800) |
|
$ 57.64 | |||||
| 14 | 316022500 | Light/lamp, Indicator, Black, 125 V |
|
Immediately | $ 53.57 | ||||
| 15 | 316411405 | Support, Backguard, Black, Rh |
|
$ 83.95 | |||||
| 19 | 316456541 | Panel, Backguard, Black/stainless, W/overlay |
|
$ 184.17 | |||||
| 20 | 5304510064 | Clock/timer, Electronic, Es330 (Replaces: 316557236) |
|
Immediately | $ 336.49 | ||||
| 23 | 316441600 | Bracket-clock Mtg, Black |
|
$ 20.48 | |||||
| 31 | 316543801 | Knob, Control, Black |
|
Immediately | $ 55.38 | ||||
| 46 | 316437900 | Lens, Indicator Light |
|
$ 11.45 | |||||
| 54 | 316436000 | Switch, Infinite, Small Element |
|
Immediately | $ 80.34 | ||||
| 56 | 316234045 | Shield, Backguard, Black, Inner (Replaces: 316234013) |
|
$ 66.74 | |||||
| 69 | 5303288565 | Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg |
|
$ 3.12 | |||||
| 15A | 316411404 | Support, Backguard, Black, Lh |
|
$ 83.95 | |||||
| 20A | 316419353 | Overlay, Clock, Black, Es330i |
|
Immediately | $ 39.43 | ||||
| 54B | 316238201 | Switch, Infinite Radian, Dual |
|
Immediately | $ 89.00 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 |
