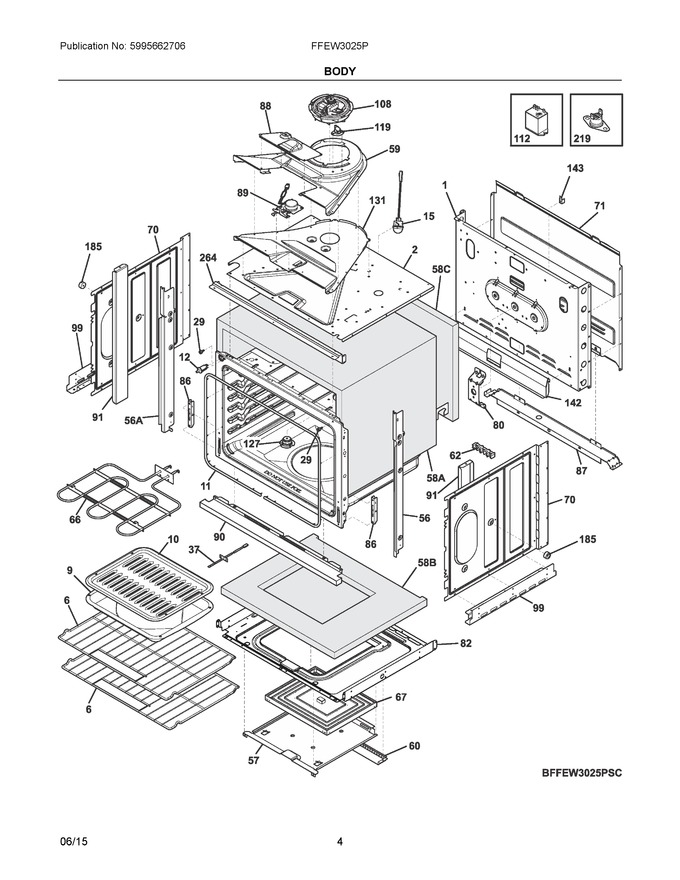

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139017304		Panel, Main Back		Appelez-nous	-
2	139028100		Shield, Insulation, Top		Appelez-nous	-
6	139011800		Rack, Oven, W/handle				$ 128.00
9	318138801		Pan, Broiler Optional Accessory		Appelez-nous	-
10	318126401		Insert, Broiler Pan Optional Accessory		Appelez-nous	-
11	807545502		Seal, Oven Door, Gray				$ 140.34
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
29	316517600		Spacer, Oven Door				$ 12.05
37	5304504897		Sensor, Oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
56	318903745		Trim, Side, White, Rh				$ 80.43
57	807988901		Panel, Service, Bake Element		Appelez-nous	-
59	139027600		Duct, Cooling Fan, Upper				$ 85.76
60	807285601		Shield, Heat, Oven Bottom		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
66	5304521498		Element, Broil, 6 Pass, 3400w   (Replaces: 139008900)			Immediately	$ 87.21
67	318601604		Element, Hidden Bake, 2000w   (Replaces: 808650402)			Immediately	$ 260.38
70	139000601		Shield, Insulation, Sides, (2)   (Replaces: 139000600)				$ 72.05
71	139020000		Shield, Rear Wire, Main Back				$ 99.23
80	139021101		Bracket, Support, Chassis/fan   (Replaces: 139021100)				$ 14.89
82	807988802		Shield, Insulation, Lower				$ 111.99
86	318561100		Receptacle, Hinge, (2)				$ 21.23
87	139020100		Bracket, Cable Mtg.		Appelez-nous	-
88	5304506964		Cover, Latch Motor   (Replaces: 139027900)				$ 24.10
89	139021301		Motor, Latch Assy., 3 Pole				$ 118.56
90	139008708		Trim, Base, White				$ 43.81
91	5304500329		Bracket, Side Cavity, (2)		Appelez-nous	-
99	318256201		Bracket, Side, Bottom, (2)				$ 56.70
108	318575612		Motor Assembly, Cooling Fan			Immediately	$ 196.61
112	318112703		Relay				$ 66.99
119	318578506		Thermostat, Safety, 105c			Immediately	$ 58.19
127	5304538693		Tube Assembly, Vent, W/catalyst   (Replaces: 139042600)			Immediately	$ 10.03
131	139027700		Duct, Cooling Fan, Lower				$ 73.00
142	139018000		Shield, Air Deflector, Main Back		Appelez-nous	-
143	318172904		Support, Wire		Appelez-nous	-
185	318531800		Spacer, Oven Shield, (2)				$ 12.76
219	318003624		Thermostat, Safety, 105/120f			Immediately	$ 23.39
264	139017601		Trim, Vent, Black, Front				$ 47.78
56A	318903746		Trim, Side, White, Lh				$ 72.66
58A	139001700		Insulation, Oven Wrapper, Top & Sides		Appelez-nous	-
58B	807989001		Insulation, Oven Bottom				$ 102.78
58C	139021400		Insulation, Oven Back		Appelez-nous	-
NI	5304471184		Screw, Anti-tip, 8-5/8, White, (2)		Appelez-nous	-
NI	318165800		Spacer, Glass, Foam				$ 17.72
NI	5304506983		Box & Wires Assy   (Replaces: 318394441)				$ 133.47
NI	139802000		Harness, Wiring, Main		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	807448001		Harness, Wiring, Latch Motor		Appelez-nous	-
NIA	318231870		Wiring Harness, Bake Element				$ 83.42
NIA	5308014215		Screw, 6-20 X 0.312				$ 2.28
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIA	318579001		Bracket, Wire				$ 11.08
NIA	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIB	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
NIB	5303288566		Screw, 8 X 1/4, (4)   (Replaces: 5303323130)				$ 2.12
NIB	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
