SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

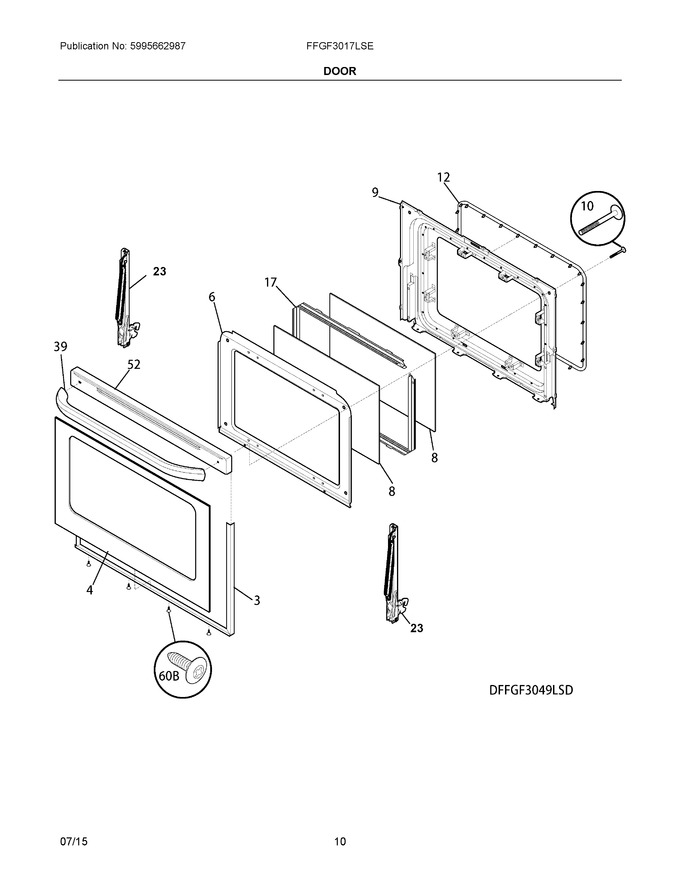

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935398		Trim Kit-door, 3 Sided, Black, W/tape And Foil				$ 54.86
4	316453036		Glass Assembly, Oven Door, W/tape, Ss, Outer, W/ss Overlay				$ 390.71
6	316222711		Shield, Wool, Black, Oven Door				$ 47.90
8	5304503232		Glass, Oven Door, Clear, Heat Barrier, (2)   (Replaces: 316237100)				$ 116.95
9	316230635		Liner, Oven Door				$ 135.37
10	316278700		Screw, Wafer Head, 10-14 X 1 3/8, Handle Mtg			Immediately	$ 27.50
12	316239700		Seal, Oven Door			Immediately	$ 152.43
17	316117701		Spacer, Door Glass, (2)				$ 53.66
23	316575922		Hinge, Oven Door, Green		Appelez-nous	-
39	316545300		Handle, Door/drawer, Black				$ 137.92
52	316491201		Cap, Door Trim, Black				$ 99.94
60B	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316483102		Label, Anti-tip   (Replaces: 316483100)				$ 3.56
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18

    View Diagram in Separate Window       Print Part List
