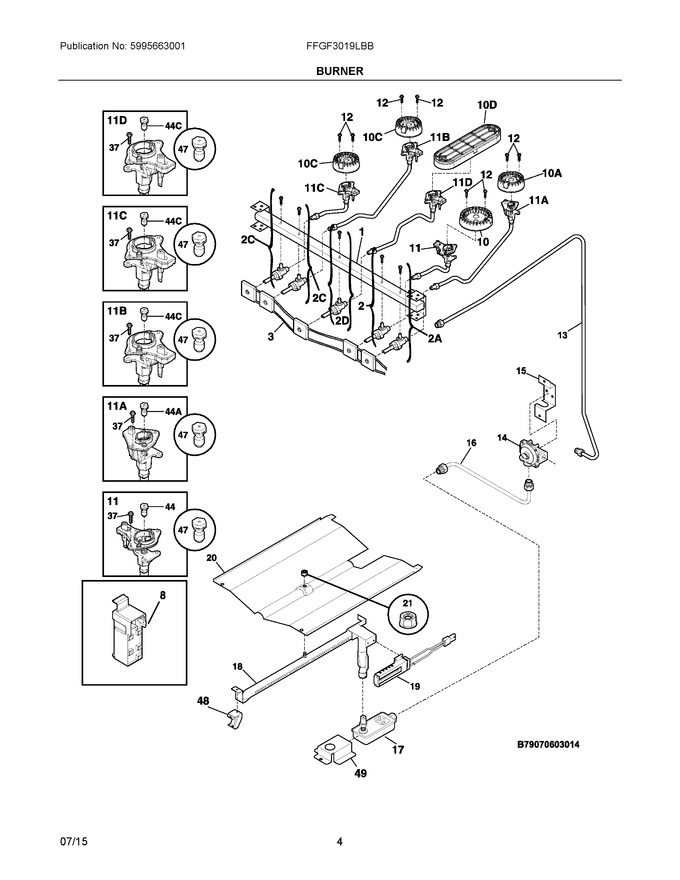

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316417901		Manifold				$ 133.47
2	5303935306		Valve, Top Burner, Blue Stem				$ 80.80
3	316580615		Harness-ignitor			Immediately	$ 109.27
8	5304508269		Module, Spark   (Replaces: 316262404)			Immediately	$ 105.46
10	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
11	316536614		Ignitor/orifice Assy., Top Burner, Right Front, 14k, W/holder, Tube				$ 112.27
12	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
13	316545801		Tube, 3/8, Aluminum, Rgltr To Manf, With Fittings		Appelez-nous	-
14	316091711		Regulator, Pressure			Immediately	$ 90.03
15	316091600		Bracket, Regulator				$ 73.56
16	316065006		Tube-valve To Rgltr, 3/8   (Replaces: 316436500)				$ 122.09
17	3203459		Valve, Safety				$ 303.64
18	316114300		Burner, Oven				$ 169.88
19	5304509706		Ignitor   (Replaces: 316489408)			Immediately	$ 189.59
20	316496001		Baffle, Oven Burner				$ 78.33
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
37	316240600		Screw, Assy Mtg, (8), Ignitor/orifice			Immediately	$ 12.13
44	316527511		Orifice, Burner, 14k				$ 19.85
47	GRLP4		Lp Conversion Kit   (Replaces: 316542414)			Immediately	$ 56.70
48	3018603		Bracket, Support, Oven Burner		Appelez-nous	-
49	316416300		Bracket, Safety Valve		Appelez-nous	-
10A	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
10C	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10D	316559300		Burner, Sealed, 9.5k, Oval				$ 177.19
11A	316536610		Ignitor/orifice Assy., Top Burner, Right Rear, 5k, W/holder, Tube			Immediately	$ 92.38
11B	316536602		Ignitor/orifice Assy., Top Burner, Left Front, 9.5k, W/holder, Tube				$ 132.62
11C	316536600		Ignitor/orifice Assy., Top Burner, Left Rear, 9.5k, W/holder, Tube				$ 124.27
11D	316536623		Ignitor/orifice Assy., Top Burner, Center, 9.5k, W/holder & Tube				$ 147.71
2A	5303935308		Valve, 5k Top Burner, W/mtg Screw				$ 70.88
2C	5303935305		Valve, 9.5k Burner, W/mtg Screw			Immediately	$ 77.26
2D	5303935309		Valve, Top Burner, 9.5k/tortilla				$ 82.22
44A	316527504		Orifice, Burner, 5k				$ 22.68
44C	316527500		Orifice, Burner, 9.5k				$ 21.40
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
NI	316566900		Sleeve, Insulator		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303271648		Screw, Wafer Hd Sq Dr, 8-18ab X 0.5			Immediately	$ 13.46
NI	5304494425		Harness, Ignitor   (Replaces: 316580602)				$ 86.45
NIA	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	316021104		Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt				$ 7.79
NIB	316257400		Bracket, Spark Module				$ 15.17
