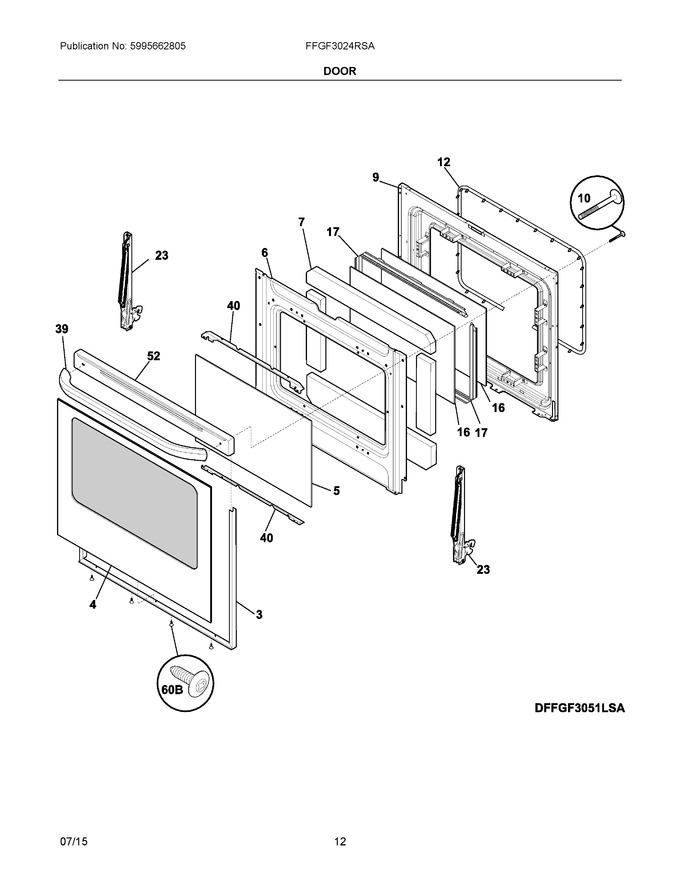

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935378		Trim Kit-door, 3 Sided, Black, W/tape			Immediately	$ 63.08
4	316453033		Glass Assembly, Oven Door, W/tape, Outer				$ 249.48
5	316446401		Glass, Oven Door, Airwash   (Replaces: 316446400)			Immediately	$ 125.13
6	316402316		Shield, Wool   (Replaces: 316402310)			Immediately	$ 88.72
7	316403900		Insulation, Oven Door			Immediately	$ 72.30
8	5304503232		Glass, Oven Door, Inner   (Replaces: 316117504)				$ 116.95
9	316423807		Liner-oven Door				$ 171.40
10	5304507924		Screw, Handle Mtg, 10-24 X 2.188, (2)   (Replaces: 316513301)			Immediately	$ 16.48
12	5304498835		Seal, Oven Door   (Replaces: 316403101)			Immediately	$ 88.74
16	316117501		Glass, Oven Door, Inner				$ 148.16
17	5304504811		Spacer, Door Glass, (2)   (Replaces: 316559901)			Immediately	$ 25.02
23	316575909		Hinge, Oven Door   (Replaces: 316575904)			Immediately	$ 98.60
39	316558201		Handle, Door, Stainless				$ 174.23
40	316446301		Bracket, Glass, Airwash, (2)				$ 59.96
52	316575501		Cap, Door Trim, Black				$ 110.73
60B	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316483102		Label, Anti-tip   (Replaces: 316483100)				$ 3.56
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	5303288572		Screw-handle Mtg		Appelez-nous	-
