SELECT A DIAGRAM

01 - Tub And Basket


02 - Top And Console

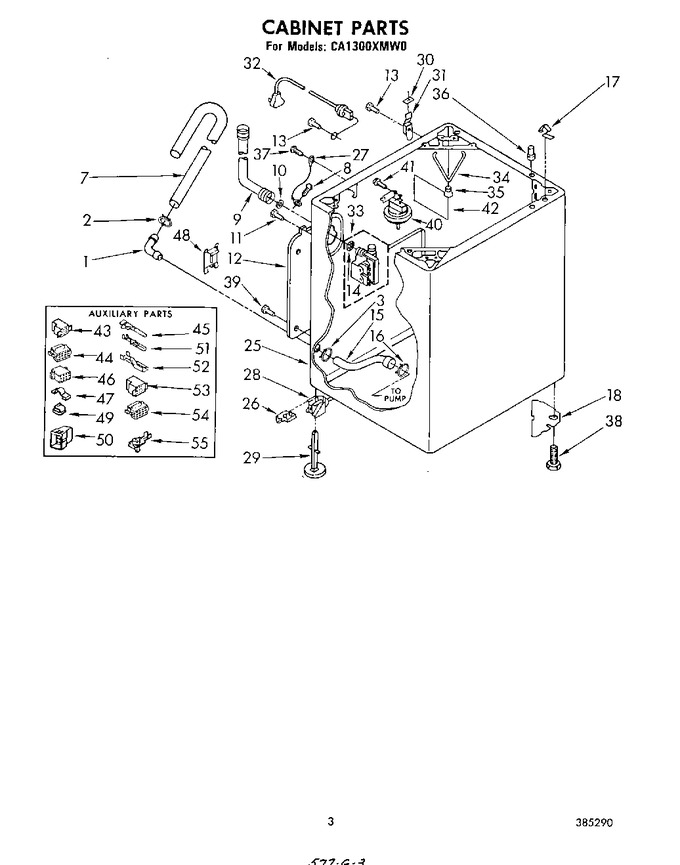

03 - Cabinet


04 - Drive


05 - Pump


06 - Gearcase


07 - Basket Drive And Brake


08 - Miscellaneous , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	95440		Connector, Hose				$ 22.55
2	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
3	WP285655		Clamp, Hose   (Replaces: 370445)			Immediately	$ 7.55
7	WP96743		Hose, Gooseneck   (Replaces: 96743)				$ 90.93
8	90057		Screw, Ground Wire To Top		Appelez-nous	-
9	WP89503		Hose, Inlet (2)   (Replaces: 660028)			Immediately	$ 21.68
9	WP89503		Hose, Inlet (2) (alt.)   (Replaces: 81339)			Immediately	$ 21.68
9	WP89503		Hose, Inlet (2) (alt.)   (Replaces: 366108)			Immediately	$ 21.68
10	WP16123		Washer, Rubber (4)   (Replaces: 16123)				$ 6.93
11	WP3390631		Screw, 10-24 X 3/8   (Replaces: 62863)				$ 7.04
12	85279		Panel, Rear		Appelez-nous	-
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
14	WP96160		Screen, Filter   (Replaces: 96160)				$ 10.54
15	21114		Hose, Pump Discharge		Appelez-nous	-
16	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 7.55
17	WP18776		Lock, Front Top (2)   (Replaces: 18776)			Immediately	$ 11.41
18	356459		Plate, Gusset (2)		Appelez-nous	-
25	384797		Cabinet (golden Harvest)		Appelez-nous	-
25	384794		Cabinet (almond)		Appelez-nous	-
25	384793		Cabinet (white)		Appelez-nous	-
25	384796		Cabinet (new Avocado)		Appelez-nous	-
26	WP359364		Clip, Leveling Mechanism (2)   (Replaces: 359364)			Immediately	$ 7.06
27	340025		Wire, Ground		Appelez-nous	-
28	359059		Leveling Link Assembly		Appelez-nous	-
29	WP358594		Foot, Rear (2)   (Replaces: 358594)				$ 12.24
30	18849		Pad, Hinge				$ 18.13
31	18775		Hinge, R.h.		Appelez-nous	-
31	92657		Hinge, L.h.		Appelez-nous	-
32	354837		Cord, Power (120 Volt)		Appelez-nous	-
33	358277		Valve, Mixing (serviced Only As Complete Valve)			Immediately	$ 78.87
34	358336		Spring, Snubber   (Replaces: 357977)			Immediately	$ 4.80
35	358336		Snubber			Immediately	$ 4.80
36	98669		Locator, Top (2)				$ 12.03
37	WP681414		Screw, Ground (10-16 X 1/2)   (Replaces: 359262)			Immediately	$ 7.07
38	WP367594		Foot, Front (2)   (Replaces: 367594)			Immediately	$ 18.46
39	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.07
40	285394		Switch, Water Level   (Replaces: 359361)		Appelez-nous	-
41	WP90767		Screw, 8a X 7/8   (Replaces: 90767)			Immediately	$ 7.04
42	353885		Barrier, Splash		Appelez-nous	-
43	370148		Cap, Terminal (12-way) (use W/97452 Terminal)		Appelez-nous	-
44	370147		Plug, Terminal (12-way) (use W/96413 Terminal)		Appelez-nous	-
45	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
46	96894		Plug, Terminal (15 Way)		Appelez-nous	-
47	WP98997		Clip, Harness (2)   (Replaces: 98997)				$ 9.98
48	354179		Plug, Cabinet (2)		Appelez-nous	-
49	WP90016		Clip, Harness (2)   (Replaces: 90016)				$ 10.19
50	96895		Cap, Terminal (15 Way)		Appelez-nous	-
51	96413		Terminal		Appelez-nous	-
52	97452		Terminal		Appelez-nous	-
53	97455		Cap, Terminal (12-way) (use W/97454 Plug & 96413 Terminal)		Appelez-nous	-
54	97454		Plug, Terminal (12-way) (use W/97455 Cap & 97452 Terminal)		Appelez-nous	-
55	357695		Ring, Grounding		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
