SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner

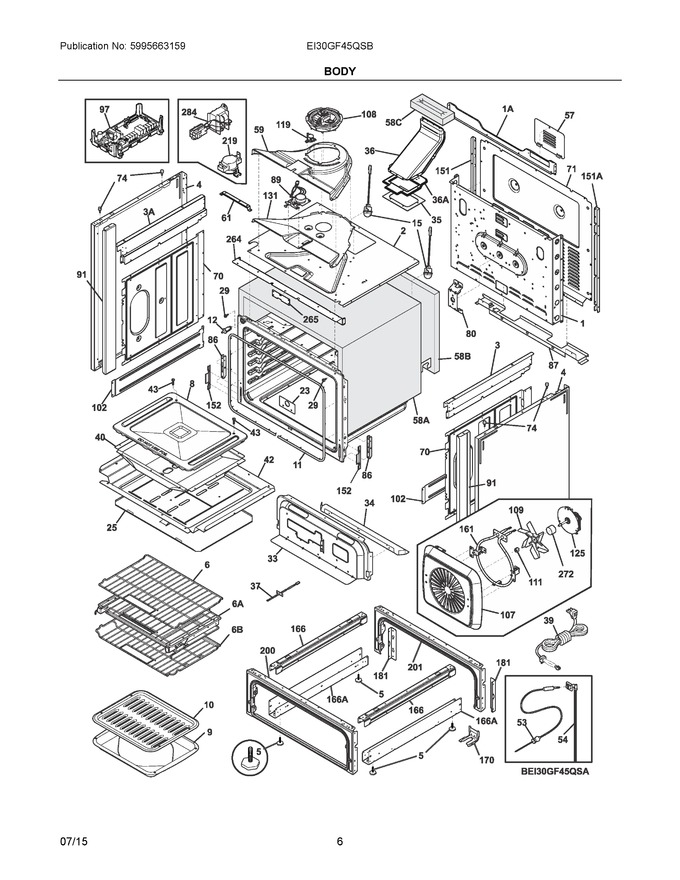

04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139017306		Panel, Main Back		Appelez-nous	-
2	139078202		Shield, Insulation, Top		Appelez-nous	-
3	809128202		Panel, Upper Side, Rh		Appelez-nous	-
4	807226106		Panel, Bodyside, Black, (2)   (Replaces: 807226102)				$ 136.69
5	318175510		Screw, Leveling   (Replaces: 318175503)			Immediately	$ 24.26
6	139011600		Rack, Oven, W/handle				$ 124.74
8	139005002		Panel, Oven Bottom, Cobalt				$ 110.10
9	316081901		Pan, Broiler, Cobalt Blue Optional Accessory				$ 74.32
10	316082001		Insert, Broiler Pan, Cobalt Blue Optional Accessory				$ 53.09
11	807545502		Seal, Oven Door, Gray				$ 140.34
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
23	139004500		Cover, Broil Opening		Appelez-nous	-
25	318291900		Bracket, Shield, Lower				$ 94.27
29	316517601		Bumper, Main Front, Cobalt Blue		Appelez-nous	-
33	318287800		Panel, Valve Mtg.		Appelez-nous	-
34	318289401		Panel, Valve Filler		Appelez-nous	-
35	318291300		Seal, Flue Cavity		Appelez-nous	-
36	809223802		Fluebox, Assembly		Appelez-nous	-
37	5304504897		Sensor, Oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
39	5304534000		Cord, Electric Power   (Replaces: 807108201)			Immediately	$ 33.37
40	139004700		Box, Oven Burner				$ 109.85
42	139004800		Shield, Heat, Lower				$ 127.58
43	316282700		Screw, 8-18 X 1.438, Oven Bottom   (Replaces: 3131732)				$ 9.93
53	5304503737		Probe, Meat Temp, Black   (Replaces: 318601306)				$ 99.33
54	139017203		Receptacle Assy, Meat Probe			Immediately	$ 153.09
57	316283600		Cover, Access				$ 12.50
59	139078002		Duct, Cooling Fan, Top   (Replaces: 139078000)				$ 78.67
61	5304497190		Bracket, Wire, (2)		Appelez-nous	-
70	139000601		Shield, Insulation, Sides, (2)   (Replaces: 139000600)				$ 72.05
71	809123201		Shield, Rear, Lower				$ 63.08
74	318141910		Bumper, Bodyside, (4)				$ 3.68
80	139021101		Bracket, Support, Chassis/fan   (Replaces: 139021100)				$ 14.89
86	318561100		Receptacle, Hinge, (2)				$ 21.23
87	318260624		Bracket, Cable Mtg.		Appelez-nous	-
89	5304528836		Motor, Latch Assembly   (Replaces: 139078300)			Immediately	$ 76.34
91	5304500329		Bracket, Side Cavity, (2)		Appelez-nous	-
97	316472807		Circuit Board, Assembly, Ovc1, W/housing   (Replaces: 316472802)			Immediately	$ 366.77
102	139004100		Panel, Reinforcement, (2)				$ 20.89
107	139013902		Cover, Convection Fan, Cobalt				$ 120.54
108	318575612		Motor Assembly, Cooling Fan			Immediately	$ 196.61
109	318398302		Blade, Fan, Convection   (Replaces: 139009100)			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
119	807144901		Thermostat, Safety, 110c Deg				$ 58.39
125	139008600		Motor, Fan, Convection				$ 189.70
131	139078102		Duct, Cooling Fan, Bottom   (Replaces: 139078100)				$ 64.49
151	809124101		Bracket, Extension, Lh, Main Back		Appelez-nous	-
152	318338520		Bracket, Lateral Panel, (2)				$ 18.38
161	139013800		Element, Convection, 350w				$ 87.97
166	318298410		Bracket, Base Support, (2)				$ 75.83
170	5304486410		Kit, Anti Tip, W/brkt & Instru				$ 158.50
181	809201001		Bracket, Rear Panel, (2)		Appelez-nous	-
200	318298232		Frame, Drawer, Black, Front				$ 95.13
201	318298233		Frame, Drawer, Black, Rear				$ 45.36
219	318003400		Thermostat, Safety				$ 237.43
264	807057104		Trim, Vent Support, Black		Appelez-nous	-
265	807050701		Trim, Cover, Black, Vent Motor		Appelez-nous	-
272	139021700		Tube, Convection Fan				$ 17.72
284	316536100		Transformer			Immediately	$ 210.83
151A	809124102		Bracket, Extension, Rh, Main Back		Appelez-nous	-
166A	5304511884		Bracket, Base Support, Lower, (2)   (Replaces: 318298405)				$ 65.98
1A	809128101		Panel, Main Back, Upper		Appelez-nous	-
36A	139008301		Support, Panel, Flue		Appelez-nous	-
3A	809128201		Panel, Upper Side, Lh				$ 57.17
58A	5304497189		Insulation, Oven Wrapper		Appelez-nous	-
58B	139011000		Insulation, Oven Back		Appelez-nous	-
58C	318594400		Insulation, Flue				$ 23.39
6A	139013308		Rack Assembly, Gliding, W/handle				$ 249.59
6B	139012400		Rack, Oven, Offset, W/handle				$ 181.34
NI	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
NI	5304499706		Harness, Wiring, Main				$ 211.92
NI	808041201		Harness, Wiring, Oven Ignitors				$ 51.57
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 12.89
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
NIA	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NICA	5304497194		Insulation, Flue Vent, (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
