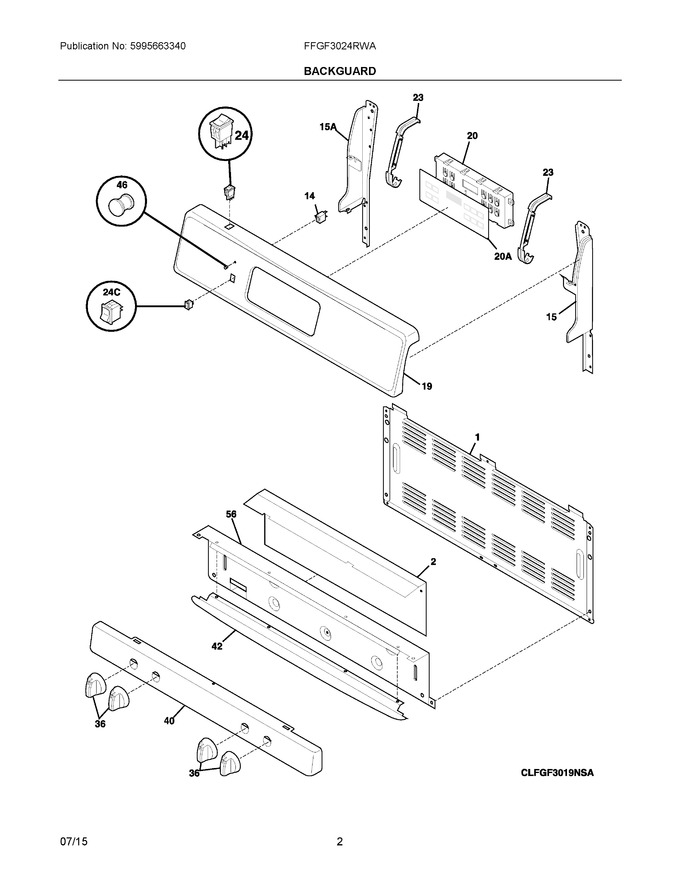

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281800)				$ 57.64
2	316497600		Shield, Backguard, Inner				$ 66.31
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 53.57
15	316411403		Support, Backguard, White, Rh				$ 84.10
19	316541697		Panel, Backguard, White		Appelez-nous	-
20	5304515070		Clock/timer, Electronic, Es300   (Replaces: 316557103)				$ 293.94
23	316441600		Bracket-clock Mtg, Black				$ 20.48
24	5304527842		Switch, Rocker, White, Oven Light   (Replaces: 316448701)			Immediately	$ 16.13
36	316543906		Knob, Top Valve, White, (4)				$ 25.48
40	316290410		Panel-manifold, White		Appelez-nous	-
42	316416205		Trim, Extrusion, Gray   (Replaces: 316416201)				$ 51.57
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
56	316230705		Shield, Backguard, Inner		Appelez-nous	-
15A	316411402		Support, Backguard, White, Lh				$ 94.55
20A	316419143		Overlay, Clock, White, Es300		Appelez-nous	-
24C	316259800		Switch-rocker, White   (Replaces: 316259801)				$ 36.21
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	316021104		Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt				$ 7.79

    View Diagram in Separate Window       Print Part List
