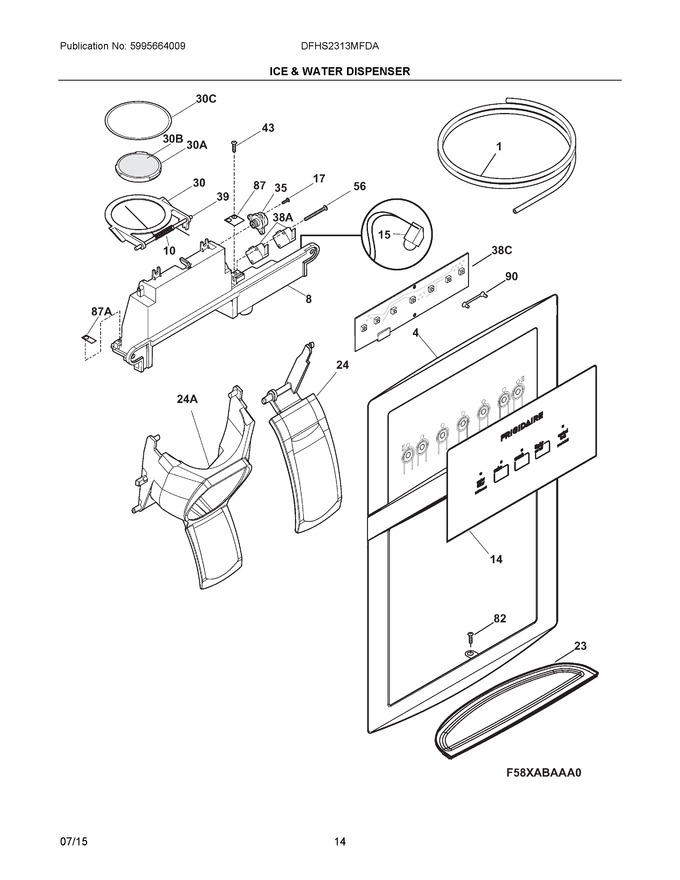

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976438 | Tube, Water, 62", Natural, Door |
|
Immediately | $ 20.56 | ||||
| 4 | 241946813 | Cover-module, Black |
|
$ 94.11 | |||||
| 8 | 242083403 | Module-dispenser |
|
$ 186.95 | |||||
| 10 | 241688901 | Spring-torsion |
|
Immediately | $ 21.27 | ||||
| 14 | 242083003 | Label-module Cover, Black |
|
$ 71.59 | |||||
| 15 | 242065203 | Light-led (Replaces: 242070901) |
|
$ 103.48 | |||||
| 17 | 241679801 | Screw |
|
$ 14.18 | |||||
| 23 | 241947003 | Drip Tray, Black |
|
$ 23.39 | |||||
| 24 | 242083608 | Actuator-water, Black |
|
$ 106.98 | |||||
| 30 | 241688401 | Door Assy-ice Chute |
|
$ 49.62 | |||||
| 35 | 241689301 | Damper-rotary |
|
$ 70.52 | |||||
| 39 | 241688801 | Pin-hinge |
|
$ 43.24 | |||||
| 43 | 215296301 | Screw, Plask H/l, #6 X 3/8 |
|
- | |||||
| 56 | 241689201 | Screw-micro Switch, Pan Head |
|
$ 13.46 | |||||
| 82 | 5304453707 | Screw, Plask, #8-18 X .500 (Replaces: 240363402) |
|
Immediately | $ 15.92 | ||||
| 87 | 241688302 | Bearing Plate |
|
$ 19.85 | |||||
| 90 | 241732703 | Light Pipe, Reflector |
|
- | |||||
| 24A | 242083503 | Actuator-ice, Black |
|
$ 114.82 | |||||
| 30A | 241688501 | Door Center |
|
$ 52.97 | |||||
| 30B | 241688601 | Insulation-door |
|
$ 63.17 | |||||
| 30C | 241688701 | Door Seal |
|
$ 40.46 | |||||
| 38A | 241689104 | Switch-micro, Single Pole, Double Throw |
|
$ 117.66 | |||||
| 38C | 242053503 | Board-control |
|
Immediately | $ 268.46 | ||||
| 87A | 241688301 | Bearing Plate |
|
$ 19.85 | |||||
| NI | 5304521768 | Harness, Wiring, Dispenser Door (Replaces: 242207001) |
|
$ 38.28 | |||||
| NI | 218515403 | Clip-grille |
|
$ 29.06 | |||||
| NIA | 218976439 | Tube-water Inlet, 5/16 - 32", Yellow, Valve To Door |
|
$ 19.13 | |||||
| NIAA | 242065203 | Harness Assembly, Complete, Disp. Module |
|
$ 103.48 | |||||
| NIB | 241850615 | Tube-water Inlet, Inlet Valve, To I/m Inlet (Replaces: 218976915) |
|
$ 34.73 | |||||
| NIC | 240561701 | Seal-water Inlet, Inlet Valve, To Ice Maker |
|
Immediately | $ 20.56 | ||||
| NICA | 241953902 | Screw, #8-18 (Replaces: 241953907) |
|
Immediately | $ 17.11 | ||||
| NID | 242220206 | Tube-water Inlet, .315 - 97.50", Brown/tan |
|
$ 46.78 |
