SELECT A DIAGRAM

01 - Cover Sheet

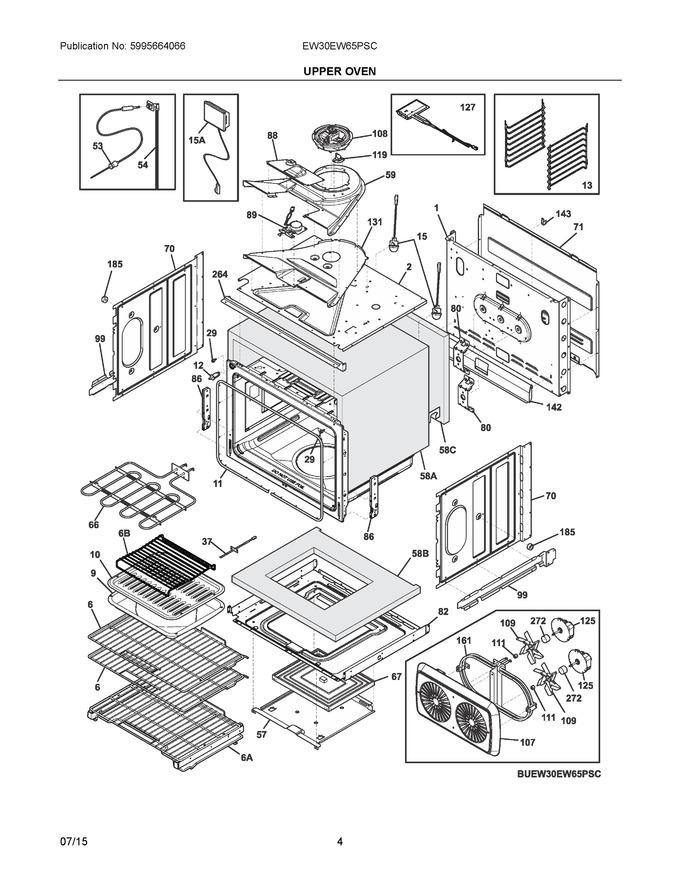

02 - Control Panel


03 - Upper Oven


04 - Lower Oven


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139017304		Panel, Main Back		Appelez-nous	-
2	139028102		Shield, Insulation, Top		Appelez-nous	-
6	808713913		Rack Assembly, Ladder, Cobalt, W/handle   (Replaces: 808713914)				$ 143.87
9	316081901		Pan, Broiler, Cobalt Blue				$ 74.32
10	316082001		Insert, Broiler Pan, Cobalt Blue				$ 53.09
11	807545504		Seal, Oven Door, Gray				$ 37.16
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
13	808713902		Ladder Assembly, Kit, Cobalt, W/2 Ladders				$ 90.88
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
29	316517601		Bumper, Main Front, Cobalt Blue		Appelez-nous	-
37	5304504897		Sensor, Oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
53	5304503737		Probe, Meat Temp, Black   (Replaces: 318601306)				$ 99.33
54	139017203		Receptacle Assy, Meat Probe			Immediately	$ 153.09
57	807988901		Panel, Service, Bake Element		Appelez-nous	-
59	139027600		Duct, Cooling Fan, Upper				$ 85.76
66	5304521861		Element, Broil, 8 Pass, 4000w   (Replaces: 139000900)			Immediately	$ 90.25
67	318601604		Element, Hidden Bake, 2000w   (Replaces: 808650402)			Immediately	$ 260.38
70	139000601		Shield, Insulation, Sides, (2)   (Replaces: 139000600)				$ 72.05
71	139020000		Shield, Rear Wire, Main Back				$ 99.23
80	139021101		Bracket, Support, Chassis/fan   (Replaces: 139021100)				$ 14.89
82	807988802		Shield, Insulation, Lower				$ 111.99
86	139026900		Receptacle, Hinge, Dual Spring				$ 32.61
88	5304506964		Cover, Latch Motor   (Replaces: 139027900)				$ 24.10
89	139021302		Motor, Latch Assy., 2 Pole				$ 147.56
99	139005201		Bracket, Support, Side, (2)		Appelez-nous	-
107	139001502		Cover, Dual Fan, Cobalt, Convection				$ 80.00
108	318575614		Motor, Cooling Fan, Dual Speed   (Replaces: 318575613)				$ 186.69
109	318398302		Blade, Fan, Convection   (Replaces: 139009100)			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
119	318578506		Thermostat, Safety, 105c			Immediately	$ 58.19
125	139008504		Motor, Convection Fan, 2400 Rpm, 2 Speed   (Replaces: 139008503)			Immediately	$ 170.57
127	807123502		Catalyst, Oven Vent		Appelez-nous	-
131	139027700		Duct, Cooling Fan, Lower				$ 73.00
142	139018000		Shield, Air Deflector, Main Back		Appelez-nous	-
143	318172904		Support, Wire		Appelez-nous	-
161	5304522063		Element, Convection, Dual, 2500w   (Replaces: 139006600)				$ 132.71
185	318531800		Spacer, Oven Shield, (2)				$ 12.76
264	139017601		Trim, Vent, Black, Front				$ 47.78
272	139021700		Tube, Convection Fan				$ 17.72
15A	139001800		Lamp Assembly, Halogen, 26" Harness, W/g9 40w Bulb				$ 124.22
58A	139001700		Insulation, Oven Wrapper, Top & Sides		Appelez-nous	-
58B	807989001		Insulation, Oven Bottom				$ 102.78
58C	139021400		Insulation, Oven Back		Appelez-nous	-
6A	808713906		Glide Rack, Assembly, Cobalt, W/handle				$ 232.47
6B	318219500		Rack, Broiler Pan		Appelez-nous	-
NI	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
NI	5304501346		Harness, Wiring, Upper Oven, Mdl Ads		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NIA	318579001		Bracket, Wire				$ 11.08
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	318231870		Wiring Harness, Bake Element				$ 83.42
NIAA	318946400		Bulb, Halogen, G9, 40w, 120v			Immediately	$ 49.32
NIB	5303288566		Screw, 8 X 1/4, (4)   (Replaces: 5303323130)				$ 2.12
