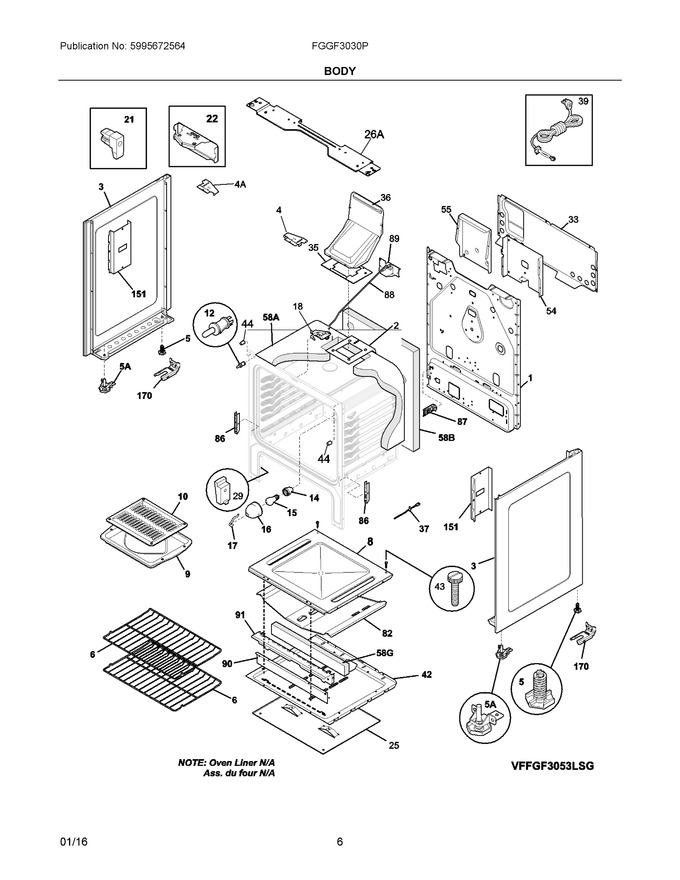

04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401600		Back, Main		Appelez-nous	-
2	316437100		Brace, Oven Top				$ 31.90
3	316400142		Panel, Bodyside, White, Rh   (Replaces: 316400116)				$ 140.85
4	316285000		Bracket-maintop		Appelez-nous	-
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 27.50
6	316496201		Rack, Oven			Immediately	$ 103.48
8	316400603		Panel, Oven Bottom			Immediately	$ 186.56
9	316081900		Pan, Broiler Optional Accessory				$ 65.89
10	316082000		Insert, Broiler Pan Optional Accessory				$ 68.85
12	316445500		Switch, Oven Light, Door Frame			Immediately	$ 54.74
14	316116400		Receptacle, Oven Light			Immediately	$ 56.10
15	316538904		Lamp, Oven Light   (Replaces: 316538901)			Immediately	$ 20.48
16	5304524341		Lens, Oven Light, Glass   (Replaces: 318406100)			Immediately	$ 14.18
17	316087500		Retainer, Lens				$ 56.70
18	316405800		Latch Assembly, Oven Door			Immediately	$ 56.74
21	316408000		Clip, Bodyside				$ 18.20
22	316286300		Bracket-bodyside, (2)				$ 17.72
25	316406200		Shield, Heat, Lower				$ 87.97
29	807047102		Glide, Drawer, Front   (Replaces: 316407301)			Immediately	$ 23.82
33	316405900		Shield, Rear Wall				$ 100.86
35	316542102		Gasket-flue   (Replaces: 316542100)				$ 12.13
36	316208901		Flue				$ 129.68
37	316490000		Probe, Oven Temp			Immediately	$ 58.30
39	5304534377		Cord, Electric Power   (Replaces: 807108202)				$ 26.85
42	316400700		Shield, Wool, Lower				$ 146.36
43	316282700		Screw, 8-18 X 1.438, Oven Bottom   (Replaces: 3131732)				$ 9.93
44	316517600		Bumper, Front, Main				$ 12.05
54	316404200		Shield, Heat				$ 57.75
55	5304510473		Shield, Flue   (Replaces: 316404800)				$ 23.39
82	316400801		Shield, Bake Burner				$ 164.57
86	316441300		Receptacle, Hinge				$ 21.97
87	316401201		Bracket, Harness		Appelez-nous	-
88	316232702		Rod, Auto Latch   (Replaces: 316232700)				$ 12.89
89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 52.34
90	316401100		Shield, Main Front		Appelez-nous	-
91	316401000		Shield, Front, Burner		Appelez-nous	-
151	316404601		Shield, Bodyside				$ 21.27
170	316112005		Anti Tip Kit, Assembly			Immediately	$ 18.91
26A	316498200		Bracket-support, Chassis, Aluminum				$ 52.33
3A	316400143		Panel, Bodyside, White, Lh   (Replaces: 316400117)				$ 140.85
4A	316285001		Bracket-maintop		Appelez-nous	-
58A	316403700		Insulation, Oven Wrapper				$ 304.06
58B	316403600		Insulation, Oven Back				$ 125.75
58G	08067973		Insulation, Main Front				$ 51.74
5A	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg   (Replaces: 316498900)			Immediately	$ 15.08
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black				$ 13.46
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NI	5304502861		Harness, Main		Appelez-nous	-
NI	316432800		Clip, Wire		Appelez-nous	-
NI	316539800		Retainer, Wire				$ 14.41
NI	316279600		Screw, Bracket, Stiffener, (4)				$ 12.05
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	316112005		Bracket, Anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 12.89
NIC	316541700		Template, Anti-tip		Appelez-nous	-
