SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram

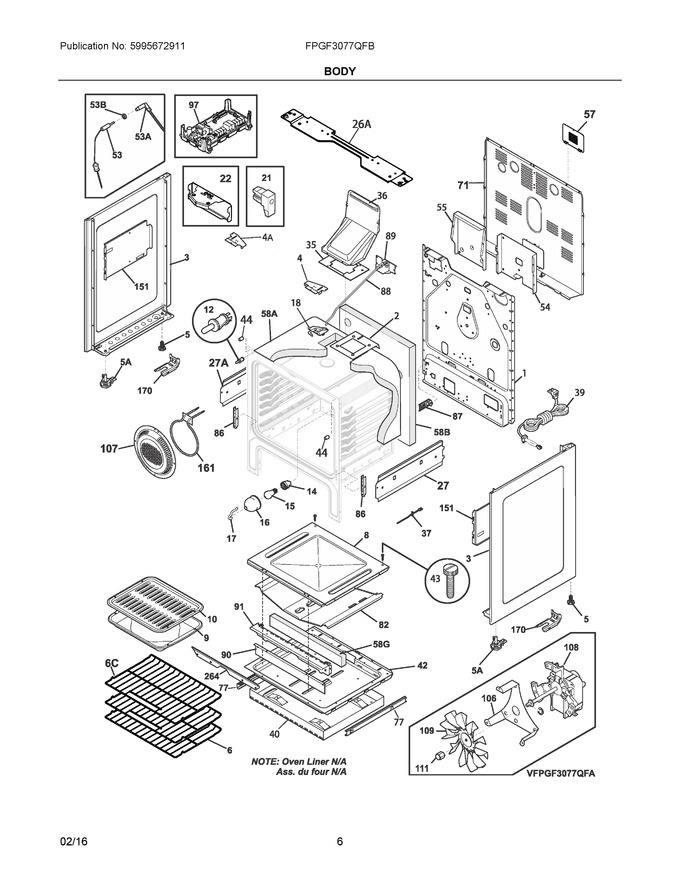

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316602500		Back, Main		Appelez-nous	-
2	316437100		Brace, Oven Top				$ 31.90
3	316400144		Panel, Bodyside, Black, Rh   (Replaces: 316400118)			Immediately	$ 134.69
4	316605400		Bracket-maintop, Rh		Appelez-nous	-
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 27.50
6	316496205		Rack, Oven				$ 134.67
8	316603201		Panel, Oven Bottom				$ 146.27
9	318138801		Pan, Broiler		Appelez-nous	-
10	318126401		Insert, Broiler Pan		Appelez-nous	-
12	316445500		Switch, Oven Light, Door Frame   (Replaces: 316445507)			Immediately	$ 54.74
14	316116400		Receptacle, Oven Light			Immediately	$ 56.10
15	316538904		Lamp, Oven Light   (Replaces: 316538901)			Immediately	$ 20.48
16	5304524341		Lens, Oven Light, Glass   (Replaces: 318406100)			Immediately	$ 14.18
17	316087500		Retainer, Lens				$ 56.70
18	316405800		Latch Assembly, Oven Door			Immediately	$ 56.74
21	316408000		Clip, Bodyside				$ 18.20
22	316286300		Bracket-bodyside, (2)				$ 17.72
27	316604100		Shield, Warmer Side, Rh		Appelez-nous	-
35	316542102		Gasket-flue   (Replaces: 316542100)				$ 12.13
36	316208901		Flue				$ 129.68
37	316490000		Probe, Oven Temp			Immediately	$ 58.30
39	5304534000		Cord, Electric Power   (Replaces: 807108201)			Immediately	$ 33.37
40	316602600		Shield, Warmer Drawer		Appelez-nous	-
42	316601600		Shield, Chassis, Lower		Appelez-nous	-
43	316282700		Screw, 8-18 X 1.438, Oven Bottom   (Replaces: 3131732)				$ 9.93
44	316517600		Spacer, Oven Door				$ 12.05
53	5304504202		Probe, Meat Temp, Red   (Replaces: 318601303)			Immediately	$ 106.19
54	316404200		Shield, Heat				$ 57.75
55	5304510473		Shield, Flue   (Replaces: 316404800)				$ 23.39
57	316283600		Cover, Access				$ 12.50
71	316283203		Shield, Rear Wall		Appelez-nous	-
77	316456700		Glide, Warmer Drawer, Outer/rh & Lh, (2)			Immediately	$ 60.96
82	316601401		Shield, Bake				$ 105.42
86	316441300		Receptacle, Hinge				$ 21.97
87	316604800		Bracket, Harness		Appelez-nous	-
88	316232702		Rod, Auto Latch   (Replaces: 316232700)				$ 12.89
89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 52.34
90	316601900		Shield, Main, Front		Appelez-nous	-
91	316601800		Shield, Burner, Front		Appelez-nous	-
97	316472807		Circuit Board, Assembly, Ovc1, W/housing   (Replaces: 316472802)			Immediately	$ 366.77
106	316404100		Bracket, Motor Mtg.				$ 63.70
107	316026701		Cover, Fan				$ 408.89
108	316256900		Motor-fan				$ 191.27
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
151	807225902		Shield, Heat, Bodyside, (2)		Appelez-nous	-
161	316211603		Element, Convection Fan, 350 W				$ 255.86
170	316112005		Anti Tip Kit, Assembly			Immediately	$ 18.91
264	316404700		Bracket, Air Dam		Appelez-nous	-
26A	316498200		Bracket-support, Chassis, Aluminum				$ 52.33
27A	316604104		Shield, Warmer Side, Lh   (Replaces: 316604101)		Appelez-nous	-
3A	316400145		Panel, Bodyside, Black, Lh   (Replaces: 316400119)			Immediately	$ 133.93
4A	316605401		Bracket-maintop, Lh		Appelez-nous	-
53A	316536900		Receptacle, Probe				$ 163.30
53B	316247700		Nut, Mounting				$ 18.20
58A	316403700		Insulation, Oven Wrapper				$ 304.06
58B	316403600		Insulation, Oven Back				$ 125.75
58G	08067973		Insulation, Main Front				$ 51.74
5A	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg   (Replaces: 316498900)			Immediately	$ 15.08
6C	316496201		Rack, Oven, (1)   (Replaces: 316498003)			Immediately	$ 103.48
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NI	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black				$ 13.46
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 12.89
NI	316602200		Plate, Power Cord, Mount		Appelez-nous	-
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	808858301		Harness, Wiring, Main				$ 126.16
NI	808858401		Harness, Wiring, Temp Probe, Mdl/communicatn				$ 85.05
NI	808858501		Harness, Wiring, Door, Switch/latch		Appelez-nous	-
NI	316539800		Retainer, Wire				$ 14.41
NI	316602300		Bracket, Mixer, Bake				$ 12.05
NI	316279600		Screw, Bracket, Stiffener, (4)				$ 12.05
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	316064600		Support, Oven Bottom				$ 18.95
NIA	316432800		Clip, Wire		Appelez-nous	-
NIA	316112005		Bracket, Anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 12.89
NIBA	316534100		Washer, Flat, Meat Probe				$ 14.89
NIC	316541700		Template, Anti-tip		Appelez-nous	-
