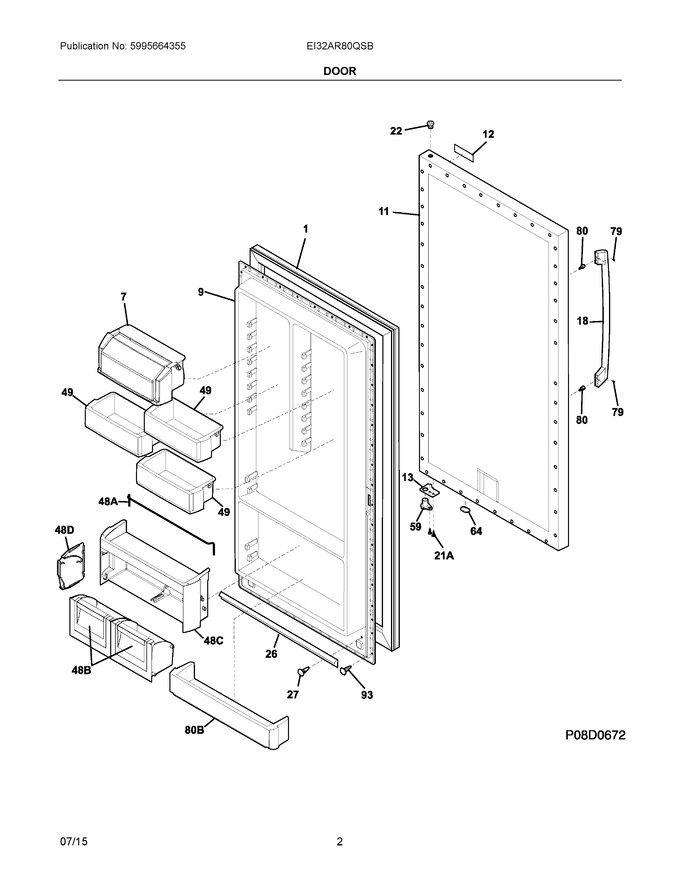

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505782		Gasket-door, Gray   (Replaces: 216522370)			Immediately	$ 235.60
7	297326200		Dairy Bin, Assembly				$ 122.58
9	297280801		Panel-inner Door, Frzr				$ 222.01
11	297329320		Panel-outer Door, Stainless Steel				$ 927.78
12	241873301		Nameplate, Electrolux, Stainless				$ 11.15
13	297302800		Door Stop, Rh				$ 22.16
18	241881309		Handle-door, Stainless				$ 256.62
22	216970801		Bearing, Hinge, Gray, Top				$ 4.25
26	216524201		Gasket, Secondary				$ 49.62
27	5303212828		Clip, Panel Mtg				$ 16.63
49	297291700		Bin-door, 2-liter				$ 97.65
59	297302900		Bearing, Door Stop				$ 7.00
64	216403700		Plug-button, Hole Filler, Door Base   (Replaces: 216403701)				$ 58.12
79	218755401		Screw-set, 10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
93	218781101		Screw, Pan Head, 8-18 X 0.625				$ 15.60
21A	297197500		Screw, Door Stop Mtg, Fh38-16x.750, P Twin				$ 14.46
48A	297291601		Wire				$ 93.14
48B	297261600		Bin-door, Tilt Out				$ 153.28
48C	297261700		Shelf-door, Gallon				$ 263.91
48D	297280600		Divider				$ 47.93
80B	297292500		Shelf, Condiment				$ 63.42
NI	297048000		Screw, Anchor, #8, White				$ 12.05
NI	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
NI	240537301		Nut-anchor, Door Hdl Screw				$ 11.34
NI	297333510		Trim Kit, Built In, Single, Complete (trimkitss1)		Appelez-nous	-
NI	297333610		Trim Kit, Built In, Dual, Complete (trimkitss2)		Appelez-nous	-
NI	297355300		Label, Quick Start		Appelez-nous	-
NIA	5304406520		Clip, Panel Mtg Kit, (40)				$ 125.83
NIA	297175300		Wrench, Allen				$ 15.49
