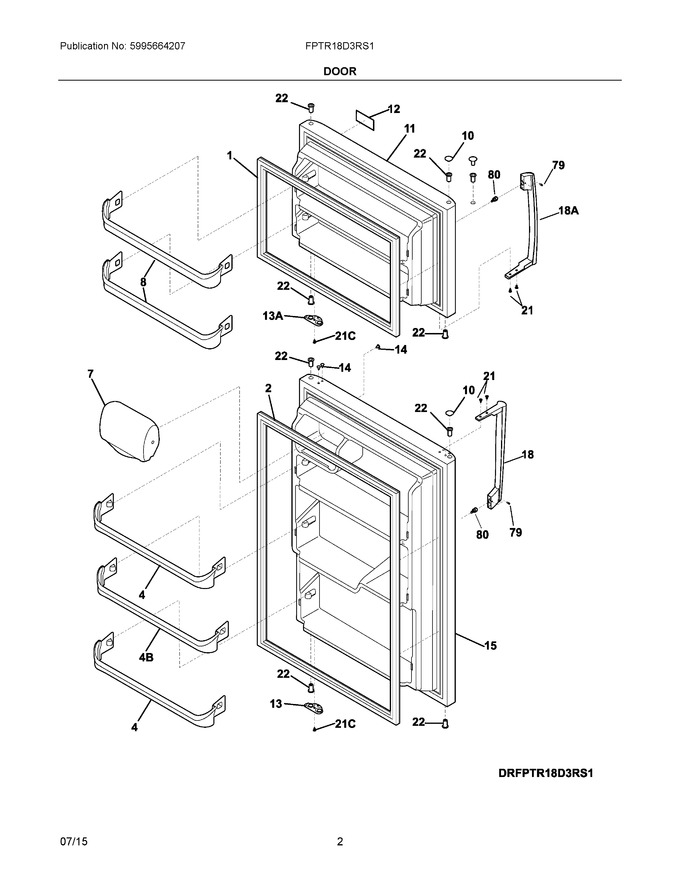

02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193218		Gasket-frzr Door, Gray, Magnetic				$ 188.10
2	242193219		Gasket-refr Door, Gray, Magnetic			Immediately	$ 188.10
4	240534901		Rack-door			Immediately	$ 47.03
7	240337712		Door-dairy			Immediately	$ 36.41
8	240534801		Rack-door			Immediately	$ 49.62
10	240381307		Plug-button, Gray, Hinge Brg Hole, (2)			Immediately	$ 16.69
11	240410206		Door-frzr, Stainless, Complete Assy				$ 701.19
12	242015101		Nameplate				$ 4.55
13	240312424		Door Stop, Gray, Ref   (Replaces: 240312420)				$ 14.41
14	240494007		Plug-button, Gray			Immediately	$ 15.92
15	242178112		Door-refr, Stainless, Complete Assy   (Replaces: 240410309)				$ 597.57
18	241977601		Handle-door, Refr-lh/frzr-rh		Appelez-nous	-
21	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 19.23
22	5304507147		Bearing-hinge, Black   (Replaces: 240527102)			Immediately	$ 7.59
41	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17
79	218755401		Screw-set, 10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
13A	240312419		Door Stop, Gray, Frzr				$ 16.30
18A	241977602		Handle-door, Refr-rh/frzr-lh		Appelez-nous	-
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
4B	240534701		Rack-door, 4b			Immediately	$ 28.80
NIA	241701901		Screw Driver		Appelez-nous	-
NIA	241601001		Wrench, Allen		Appelez-nous	-
NIA	218515401		Clip-grille				$ 17.72
