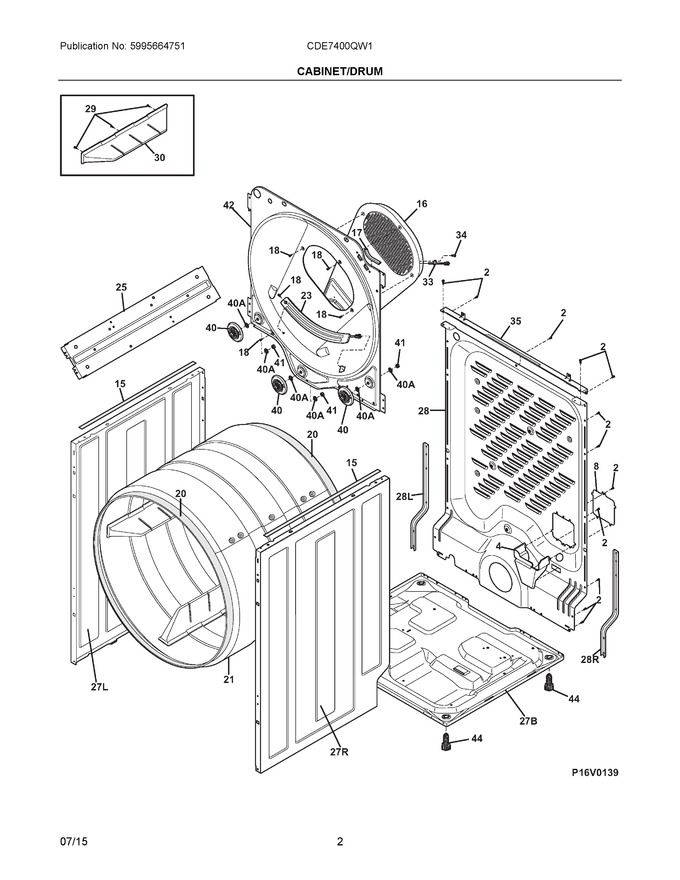

02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
4	134792200		Bracket, Mounting, Terminal Block				$ 26.09
8	137578600		Cover, Access, Terminal Block				$ 12.65
15	137031800		Cushion, Vibration, Top Panel			Immediately	$ 8.51
16	5304508449		Duct, Heat, Rear   (Replaces: 134694030)			Immediately	$ 108.44
17	134792900		Protector, Edge, Right Top Front, 85.0+/-1.5				$ 13.46
18	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
20	5304499489		Seal, Felt, Drum			Immediately	$ 56.69
21	137623100		Drum, 2-rib, Dryer				$ 307.07
23	134786110		Sensor-moisture, Assembly				$ 92.14
25	134912100		Bracket, Mounting, Main Control Bx		Appelez-nous	-
28	137560300		Panel, Backsheet, Rear		Appelez-nous	-
29	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
30	137623200		Vane, Drum				$ 51.98
33	137515200		Limiter, Thermal Exhaust, Flush Mount				$ 60.25
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
35	134959000		Bracket, Top Panel Mtg., Rear		Appelez-nous	-
40	5304523155		Roller, Wheel, Complete Asmy   (Replaces: 134715900)			Immediately	$ 77.99
41	134716800		Nut, 3/8-16				$ 2.98
42	137556623		Bulkhead, Panel, Rear   (Replaces: 137556615)				$ 311.52
44	134158000		Leveling Leg, Screw		Appelez-nous	-
27B	134690203		Base, Dryer				$ 273.58
27L	134690310		Panel, Left Side, White				$ 221.03
27R	134690410		Panel, Right Side, White				$ 208.64
28L	137029900		Bracket, Reinforcement, Left, Backsheet		Appelez-nous	-
28R	137066800		Bracket, Reinforcement, Right, Backsheet		Appelez-nous	-
40A	134716700		Washer, Flat				$ 2.12
NI	134154100		Screw, Hex Washer Head, 10-32 X 0.375, Ground				$ 13.46
NI	137240400		Brace, Side Panel, Left Or Right		Appelez-nous	-
NI	137360810		Protector, Edge, Side Brace		Appelez-nous	-
NI	131202300		Screw, 10-16ab X 0.625			Immediately	$ 13.46
NIA	5304501435		Harness, Wiring, Moisture Sensor				$ 64.94
NIA	5308027429		Adhesive, High Temp			Immediately	$ 60.25
NIA	134716200		Retainer, Roller Wheel, Assembly				$ 3.12
