SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Door


04 - Electrical Parts


05 - Wash System

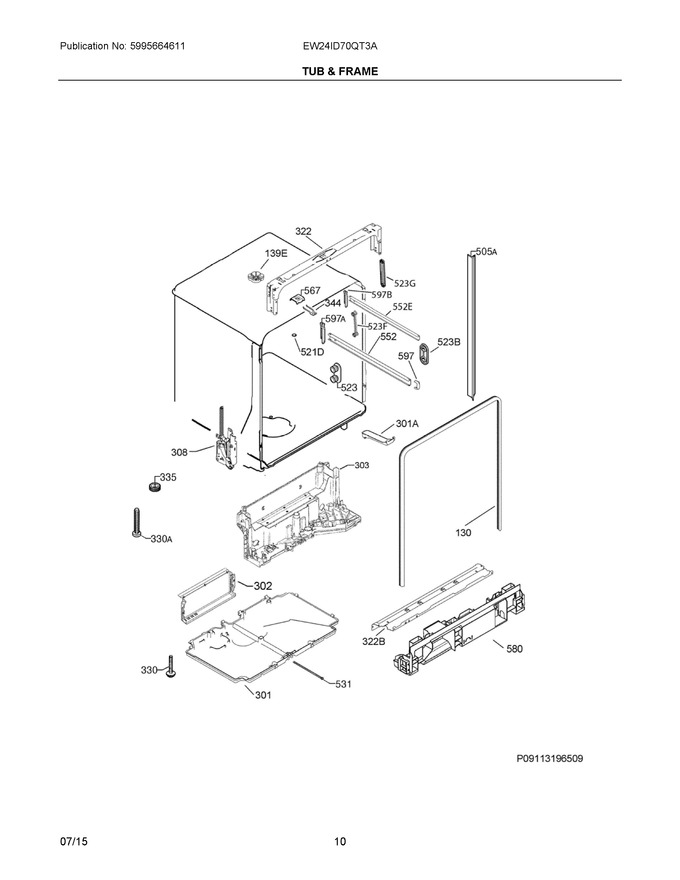

06 - Tub & Frame


07 - Racks


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
130	117158011		Seal, Door			Immediately	$ 50.61
301	807104203		Tray, Bottom				$ 204.17
302	A00075002		Cover, Electronics				$ 98.33
303	807104103		Base, Lower, Rear				$ 227.85
308	405534378		Hinge Kit, Rh And Lh, Normal				$ 166.69
322	A00166801		Crossbar, Front, Zinc, Top				$ 208.19
330	117368700		Foot, Adjustable, Front				$ 111.83
335	152714200		Cog, Wheel				$ 58.12
344	152234405		Latch				$ 119.17
523	405526079		Roller Assembly, Kit, Tub				$ 122.00
531	A00021003		Screw, Foot Adjusting, Central				$ 138.56
552	A00212701		Rail, Upper Rack				$ 128.51
567	152323603		Bracket, Latch				$ 57.56
580	807104305		Cover, Bottom, Front				$ 80.43
597	152047941		Stop, Rack Rail, Dark Grey, Front			Immediately	$ 18.43
139E	807240301		Nut, Spray Arm, Upper			Immediately	$ 63.79
301A	405513837		Overflow Hose, Kit				$ 101.35
322B	117156109		Cross Piece, Front, Bottom				$ 59.28
330A	117363200		Foot, Adjustable, Central				$ 104.18
505A	808470401		Trim, Side, L=648mm			Immediately	$ 35.53
521D	152657610		Plug, Latch Hole				$ 51.74
523B	152122010		Holder, Roller, Stiffening				$ 58.88
523F	405526164		Roller Kit, Tub, Top Lh-rh				$ 76.23
523G	A00204701		Holder, Stiffening, Top, Roller		Appelez-nous	-
552E	807085002		Rail, Top Rack   (Replaces: 807085001)				$ 39.18
597A	646123406		Stop, Rack Rail, Dark Grey, Rear				$ 82.93
597B	807070701		Stop, Rack, Rear, Top Rack				$ 78.67
NI	405531515		Mounting Kit, Built-in, W/screws, & Brackets			Immediately	$ 91.39
NI	A02596601		Insulation, Felt, 2130x475mm				$ 167.95
NI	117427700		Clip, Rivet				$ 58.82
NI	405530687		Screw, Holder, (8), & Roller				$ 132.40

    View Diagram in Separate Window       Print Part List
