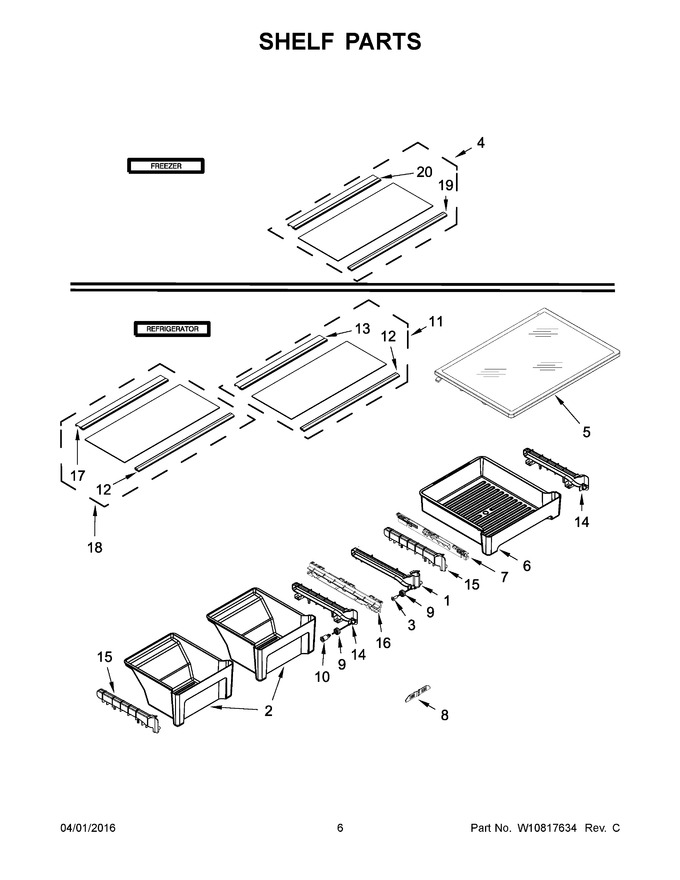

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11773992 | Track, Rail Center (Replaces: W10694127) |
|
Immediately | $ 27.52 | ||||
| 2 | W10860753 | Assembly, Crisper Pan (Replaces: W10668872) |
|
$ 127.13 | |||||
| 3 | WP3400065 | Screw (stainless) (Replaces: 3400065) |
|
Immediately | $ 6.97 | ||||
| 4 | W11567275 | Assembly, Shelf (Replaces: W10809781) |
|
- | |||||
| 5 | WPW10704017 | Assembly, Shelf (Replaces: W10704017) |
|
$ 213.96 | |||||
| 6 | WPW10308848 | Meat Pan (Replaces: W10308848) |
|
$ 139.18 | |||||
| 7 | WPW10468555 | Rail, Track (left Hand) (Replaces: W10468555) |
|
Immediately | $ 22.59 | ||||
| 8 | W11590562 | Control, Humidity (Replaces: W10356844) |
|
$ 20.10 | |||||
| 9 | W11164152 | Roller, Pan (Replaces: W10628713) |
|
Immediately | $ 13.49 | ||||
| 10 | W11175807 | Axle, Roller (Replaces: W10628712) |
|
Immediately | $ 15.35 | ||||
| 11 | W11567280 | Assembly, Shelf (Replaces: W10821670) |
|
$ 79.56 | |||||
| 12 | W10809771 | Trim, Shelf Front |
|
- | |||||
| 13 | W11167827 | Trim, Shelf Rear (Replaces: W10628686) |
|
$ 54.26 | |||||
| 14 | W11084244 | Rail, Track (right Hand) (Replaces: W10694126) |
|
Immediately | $ 85.06 | ||||
| 15 | W11818646 | Rail, Track (left Hand) (Replaces: W10694125) |
|
Immediately | $ 26.60 | ||||
| 16 | WPW10468556 | Rail, Track (right Hand) (Replaces: W10468556) |
|
Immediately | $ 6.47 | ||||
| 17 | W10730133 | Trim, Shelf Rear |
|
- | |||||
| 18 | W11567277 | Assembly, Shelf (Replaces: W10809782) |
|
$ 79.89 | |||||
| 19 | W10809770 | Trim, Shelf Front |
|
- | |||||
| 20 | W11167828 | Trim, Shelf Rear (Replaces: W10628690) |
|
$ 56.16 |
