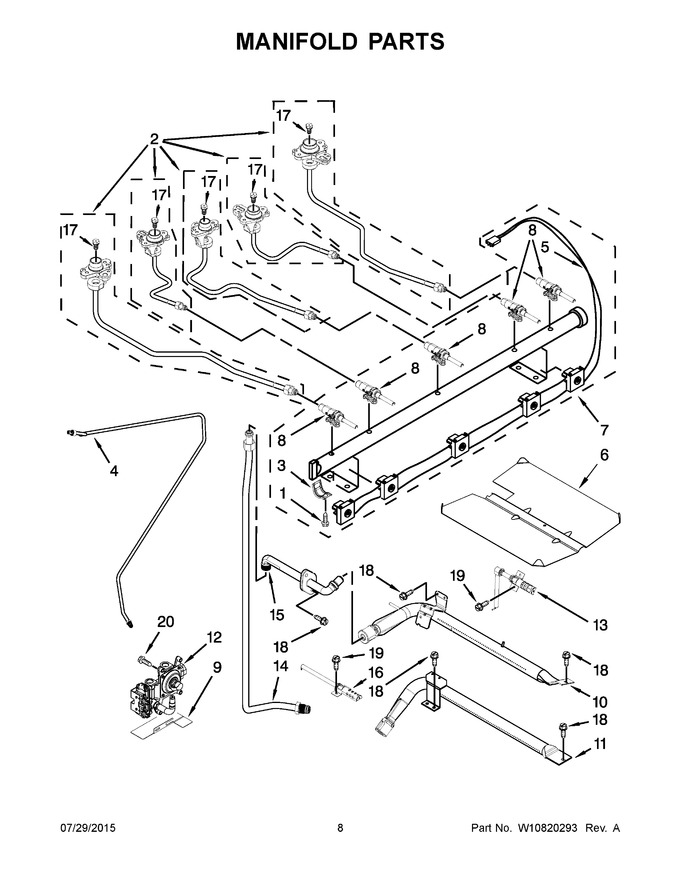

05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 6.27 | |||||
| 2 | W11661571 | Assembly, Orifice Holder (15.5 K) (left Front) (Replaces: W10473934) |
|
$ 69.81 | |||||
| 3 | W10949105 | Bracket, Saddle Valve (Replaces: W10295996) |
|
$ 19.50 | |||||
| 4 | W10510125 | Tubing, Main Supply |
|
$ 187.42 | |||||
| 5 | W10413869 | Harness, Igniter Includes Switches |
|
$ 176.95 | |||||
| 6 | 3601P336-45 | Baffle, Broil Burner |
|
$ 194.65 | |||||
| 7 | W10442082 | Assembly, Manifold |
|
$ 211.15 | |||||
| 8 | W10442080 | Valve, Gas (left Front & Right Front) |
|
$ 198.61 | |||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | W11676566 | Burner, Broiler (Replaces: W10439242) |
|
$ 79.76 | |||||
| 11 | W10764654 | Burner, Bake (Replaces: W10680035) |
|
Immediately | $ 78.56 | ||||
| 12 | W10919226 | Valve, Gas (Replaces: W10720102) |
|
Immediately | $ 162.50 | ||||
| 13 | WPW10324262 | Igniter, Bake (Replaces: W10324262) |
|
Immediately | $ 93.58 | ||||
| 14 | W10306050 | Tubing (broiler Fitting To Valve) |
|
$ 162.70 | |||||
| 15 | W10776437 | Fitting, Broil |
|
$ 87.80 | |||||
| 16 | WPW10333842 | Electrode, Broil (Replaces: W10333842) |
|
Immediately | $ 77.23 | ||||
| 17 | WPW10170510 | Orifice (15.5 K) (left Front) (Replaces: W10170510) |
|
$ 83.87 | |||||
| 18 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 19 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.23 | |||||
| 20 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.16 | |||||
| 17A | WPW10170508 | Orifice (9.5k) (left Rear) (Replaces: W10170508) |
|
$ 81.61 | |||||
| 17B | W10178934 | Orifice (12k) (right Front) |
|
Immediately | $ 88.80 | ||||
| 17C | W10732136 | Orifice (5k) (right Rear) |
|
$ 80.94 | |||||
| 17D | W10251991 | Orifice (7k) (center) |
|
$ 77.80 | |||||
| 2A | W11643127 | Assembly, Orifice Holder (9.5k) (left Rear) (Replaces: W10732140) |
|
$ 74.39 | |||||
| 2B | W11661950 | Assembly, Orifice Holder (15k) (right Front) (Replaces: W10732137) |
|
$ 72.26 | |||||
| 2C | W10732139 | Assembly, Orifice Holder (5k) (right Rear) (center) |
|
$ 98.40 | |||||
| 8A | WPW10279614 | Valve, Gas (left Rear & Center) (Replaces: W10279614) |
|
$ 239.84 | |||||
| 8B | WPW10247744 | Valve, Gas (right Rear) (Replaces: W10247744) |
|
$ 240.10 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | WPW10170516 | Kit, Lp Conversion (Replaces: W10170516) |
|
$ 95.59 | |||||
| NI | W10566534 | Kit, Bake & Broil |
|
$ 14.69 |
